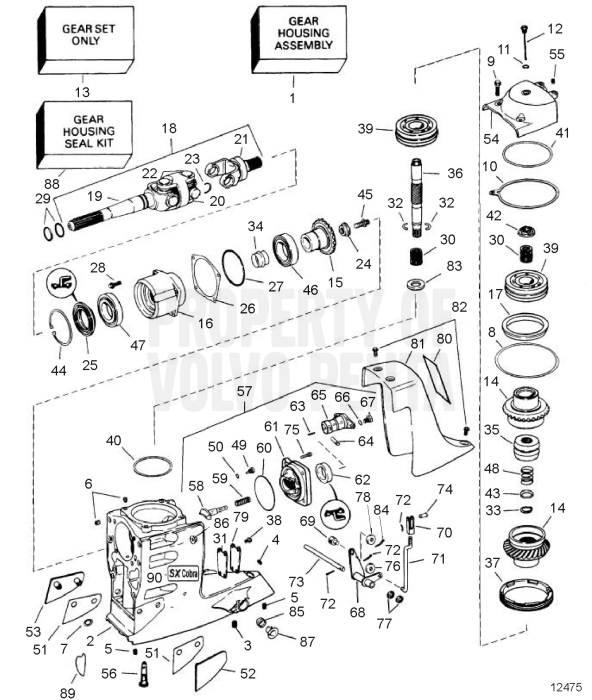

Upper Gear Unit
|
1. |
Upper gear (3855103)
Price: $9,010.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Gear housing (3855102)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
3. |
Insert (3852541)
Price: $6.80SUGGESTED QTY:1
7/16'' - 14 unc...
VIEW DETAILS
|
|
|
4. |
Insert, steering cover (3852567)
Price: $6.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
5. |
Insert, threaded, 318-16 (3852515)
Price: $8.90SUGGESTED QTY:3
VIEW DETAILS
|
|
|
6. |
Insert, threaded, 5116-18 (3852513)
Price: $7.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
7. |
Ring, thrust plate (3852516)
Price: $7.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
8. |
Shim, upper bearing, 0.002 in (3852363)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Shim, upper bearing, 0.003 in (3852364)
Price: $5.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Shim, upper bearing, 0.004 in (3852365)
Price: $6.70SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
8. |
Shim, upper bearing, 0.005 in (3852366)
Price: $5.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Shim, upper bearing, 0.010 in (3852367)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Screw, top cover (3852454)
Price: $6.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
10. |
Gasket, top cover (3852317)
Price: $6.70SUGGESTED QTY:1
Contents of upp...
VIEW DETAILS
|
|
|
11. |
O-ring, oil fill plug (3852045)
Price: $1.00SUGGESTED QTY:1
Contents of upp...
VIEW DETAILS
|
|
|
12. |
Dipstick, oil indicator (3854847)
Price: $191.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Gear set, pinion & drive gears (21130692)
Price: $1,976.00SUGGESTED QTY:1
replaced by nex...
VIEW DETAILS
|
|
|
13. |
Gear (21130692)
Price: $1,976.00SUGGESTED QTY:1
replaced by nex...
VIEW DETAILS
|
|
|
13. |
Kit (21130692)
Price: $1,976.00SUGGESTED QTY:1
Contains gear s...
VIEW DETAILS
|
|
|
14. |
Gear (3581668)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
15. |
Pinion (888855)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
16. |
Bearing housing, pinion (3852267)
Price: $301.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Ring, upper bearing support (3852269)
Price: $111.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Universal joint (3860842)
Price: $744.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
Yoke, yoke (3850815)
Price: $300.90SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
20. |
Spacer (3860842)
Price: $744.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
21. |
Yoke, yoke (3850814)
Price: $266.20SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
22. |
Spider (3850812)
Price: $161.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
23. |
Locking clip, u-joint (3850757)
Price: $99,999.00SUGGESTED QTY:4
Obsolete part
VIEW DETAILS
|
|
|
24. |
Washer, pinion gear (853026)
Price: $50.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
25. |
Sealing, u joint to bearing carrier (23492730 )
Price: $60.60SUGGESTED QTY:1
Contents of upp...
VIEW DETAILS
|
|
|
26. |
Shim, bearing carrier, 0.003 in (3852355)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
26. |
Adjusting washer, bearing carrier, 0.004 in (3852356)
Price: $7.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
26. |
Adjusting washer, bearing carrier, 0.005 in (3852357)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
26. |
Adjusting washer, bearing carrier, 0.010 in (3852358)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
27. |
O-ring, bearing carrier (967344)
Price: $20.80SUGGESTED QTY:1
Contents of upp...
VIEW DETAILS
|
|
|
28. |
Flange screw, retainer, water tube (3852454)
Price: $6.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
29. |
O-ring, u joint (997368)
Price: $2.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
30. |
Bearing, drive gear (3852390)
Price: $20.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
31. |
Gasket, water passage (3852279)
Price: $3.20SUGGESTED QTY:1
Contents of upp...
VIEW DETAILS
|
|
|
32. |
Locking clip, upper driveshaft (3852295)
Price: $3.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
33. |
Snap ring, spring (951078)
Price: $1.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Sleeve, pretension (3852304)
Price: $36.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
35. |
Sliding sleeve (3855783)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
36. |
Shaft, upper (3852292)
Price: $581.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
37. |
Ring, bearing retainer (3852262)
Price: $37.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
38. |
Screw, water passage (3852373)
Price: $99,999.00SUGGESTED QTY:4
VIEW DETAILS
|
|
|
39. |
Bearing, drive gear (3857176)
Price: $323.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
40. |
Shim, lower bearing, 0.010 in (3852372)
Price: $17.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
40. |
Shim, lower bearing, 0.002 in (3852368)
Price: $8.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
40. |
Shim, lower bearing, 0.003 in (3852369)
Price: $2.20SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
40. |
Shim, lower bearing, 0.004 in (3852370)
Price: $6.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
40. |
Shim, lower bearing, 0.005 in (3852371)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
41. |
Shim, lower bearing, 0.002 in (3852368)
Price: $8.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
41. |
Shim, lower bearing, 0.003 in (3852369)
Price: $2.20SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
41. |
Shim, lower bearing, 0.004 in (3852370)
Price: $6.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
41. |
Shim, lower bearing, 0.005 in (3852371)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
41. |
Shim, lower bearing, 0.010 in (3852372)
Price: $17.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Nut, upper driveshaft, 0.016 in (3852303)
Price: $16.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Nut, upper driveshaft, 0.024 in (3852375)
Price: $16.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Nut, upper driveshaft, 0.000 in (3852301)
Price: $16.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Nut, upper driveshaft, 0.008 in (3852302)
Price: $19.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
43. |
Spacer, spring (3852298)
Price: $7.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
44. |
Lock ring, seal (914538)
Price: $10.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
45. |
Screw, pinion gear retainer (3852309)
Price: $35.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
46. |
Bearing, pinion to inner carrier (3850852)
Price: $275.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
47. |
Bearing, pinion to outer carrier (183247)
Price: $185.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
48. |
Spring, clutch cone to shaft (3852296)
Price: $5.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
49. |
Plug, oil plug (3854539)
Price: $21.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
50. |
O-ring, oil plug (3855081)
Price: $3.30SUGGESTED QTY:1
Contents of upp...
VIEW DETAILS
|
|
|
51. |
Adjusting washer, thrust plate, 0.015 in (3589522)
Price: $12.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
52. |
Pressure plate, thrust, port (3589522)
Price: $12.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
53. |
Pressure plate, thrust, starboard (3589524)
Price: $12.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
54. |
Bearing cover, upper gear unit (3854401)
Price: $534.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
55. |
Insert, threaded, 5116-18 (3852513)
Price: $7.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
56. |
Strainer, oil sump (3854021)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
57. |
Shift mechanism (3855787)
Price: $958.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
58. |
Dog (3856502)
Price: $165.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
59. |
Spring, shift shoe (814184)
Price: $1.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
60. |
O-ring, shift actuator (925093)
Price: $2.10SUGGESTED QTY:1
Contents of upp...
VIEW DETAILS
|
|
|
61. |
Sealing ring, shift actuator (853868)
Price: $36.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
62. |
Sealing ring, shift actuator (853868)
Price: $36.40SUGGESTED QTY:1
Contents of upp...
VIEW DETAILS
|
|
|
63. |
Spring pin, tension (951924)
Price: $0.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
64. |
Clevis pin, eccentric piston (942871)
Price: $17.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
65. |
Eccentric piston (897816)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
66. |
Shim, shift shoe (897871)
Price: $3.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
67. |
Hexagon screw, shift shoe stop (897711)
Price: $27.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
68. |
Bracket, shift (3857460)
Price: $50.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
69. |
Cube, cable to bellcrank (22336734)
Price: $5.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
70. |
Fork, shift link (813954)
Price: $92.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
71. |
Link, bellcrank to piston (3857460)
Price: $50.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
72. |
Split pin (3854480)
Price: $7.70SUGGESTED QTY:3
VIEW DETAILS
|
|
|
73. |
Bar, bellcrank (3852277)
Price: $17.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
74. |
Clevis pin, shift link to piston (192662)
Price: $85.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
75. |
Screw, shift housing (3852006)
Price: $6.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
76. |
Washer, shift (3852193)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
77. |
Washer (3852193)
Price: $6.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
78. |
Washer, shift link (3852083)
Price: $6.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
79. |
Plate, waterpassage (3852280)
Price: $3.55SUGGESTED QTY:1
VIEW DETAILS
|
|
|
80. |
Decal, cover (3858670)
Price: $41.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
81. |
Cover, shift mechanism (3852418)
Price: $350.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
82. |
Flange screw, cover (3852568)
Price: $8.70SUGGESTED QTY:3
VIEW DETAILS
|
|
|
83. |
Ring, spacer (3852294)
Price: $39.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
84. |
Split pin (3854480)
Price: $7.70SUGGESTED QTY:3
VIEW DETAILS
|
|
|
85. |
Bushing, pivot pin, trim & tilt cylinder (3853423)
Price: $3.20SUGGESTED QTY:12
Incl. in transo...
VIEW DETAILS
|
|
|
86. |
Nut (3853329)
Price: $6.80SUGGESTED QTY:6
nut
VIEW DETAILS
|
|
|
87. |
Grommet, pivot pin (3853424)
Price: $5.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
88. |
Kit (3850594)
Price: $96.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
89. |
Sealing, water passage (3852560)
Price: $5.50SUGGESTED QTY:1
Incl. in transo...
VIEW DETAILS
|
|
|
90. |
Decal, SX, port & starboard (3855357)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
110 Items
