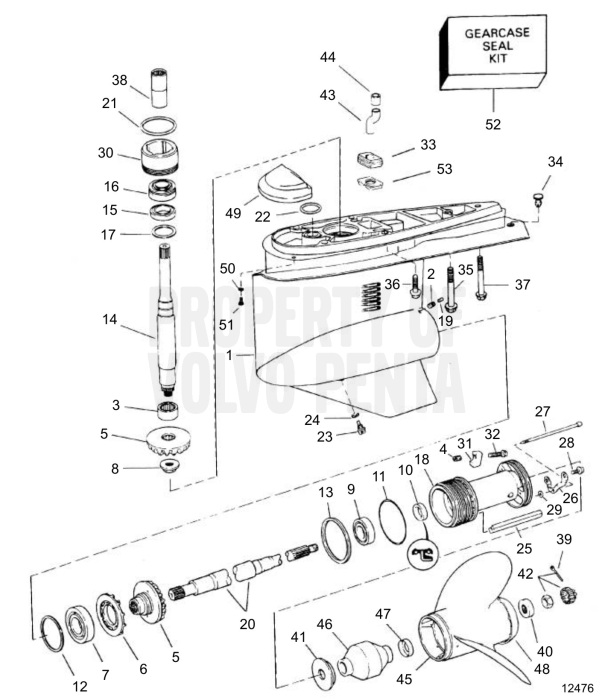

Lower Gear Unit


1.	Gear housing (3855216) Price: $8,400.00 SUGGESTED QTY:1 1.60:1 VIEW DETAILS
1.	Gear housing (3855215) Price: $8,400.00 SUGGESTED QTY:1 1.51:1 VIEW DETAILS
1.	Gear housing (3855236) Price: $7,770.00 SUGGESTED QTY:1 1.43:1 VIEW DETAILS
1.	Drive unit (3855431) Price: $3,472.00 SUGGESTED QTY:1 VIEW DETAILS
1.	Gear housing (3855213) Price: $8,400.00 SUGGESTED QTY:1 1.85:1 VIEW DETAILS
1.	Gear housing (3855214) Price: $8,400.00 SUGGESTED QTY:1 1.66:1 VIEW DETAILS
2.	Insert, steering cover (3852567) Price: $6.80 SUGGESTED QTY:2 VIEW DETAILS
3.	Bearing, pinion (3853934) Price: $135.00 SUGGESTED QTY:1 VIEW DETAILS
4.	Insert, threaded, 318-16 (3852515) Price: $8.90 SUGGESTED QTY:3 VIEW DETAILS
5.	Drive gear set (3852404) Price: $2,884.00 SUGGESTED QTY:1 1.66:1 VIEW DETAILS
5.	Drive gear set (3852403) Price: $2,884.00 SUGGESTED QTY:1 1.60:1 VIEW DETAILS
5.	Drive gear set (3852402) Price: $2,884.00 SUGGESTED QTY:1 1.51:1 VIEW DETAILS
5.	Gear set (3854814) Price: $2,247.00 SUGGESTED QTY:1 1.43:1 VIEW DETAILS
5.	Drive gear set (3852405) Price: $2,884.00 SUGGESTED QTY:1 1.85:1 VIEW DETAILS
6.	Rotor (3853941) This product has been discontinued Price: $22.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
7.	Bearing, gear to gearcase (3850942) Price: $209.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Nut, pinion to driveshaft (3851003) Price: $16.70 SUGGESTED QTY:1 VIEW DETAILS
9.	Roller bearing, prop shaft hsg (3854249) Price: $44.30 SUGGESTED QTY:1 VIEW DETAILS
10.	Seal, prop shaft hsg (3863090) Price: $45.40 SUGGESTED QTY:1 Contents of low... VIEW DETAILS
11.	O-ring, propeller shaft hsg (3852865) Price: $6.70 SUGGESTED QTY:1 Contents of low... VIEW DETAILS
12.	Shim, gear position, 0.002 in (3850695) Price: $7.90 SUGGESTED QTY:1 VIEW DETAILS
12.	Shim, gear position, 0.003 in (3852886) Price: $7.90 SUGGESTED QTY:1 VIEW DETAILS
12.	Shim, gear position, 0.004 in (3852885) Price: $5.10 SUGGESTED QTY:1 VIEW DETAILS
12.	Shim, 0.005 in (3852887) Price: $7.90 SUGGESTED QTY:1 VIEW DETAILS
12.	Shim, gear position, 0.010 in (3852888) Price: $5.50 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.098 in (3852882) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.114 in (3852875) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.100 in (3852868) Price: $33.30 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.118 in (3852877) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.102 in (3852869) Price: $33.30 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.120 in (3852878) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.104 in (3852870) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.122 in (3852879) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.106 in (3852871) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.124 in (3852880) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.108 in (3852872) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.110 in (3852873) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.096 in (3852881) Price: $25.60 SUGGESTED QTY:1 VIEW DETAILS
13.	Ring, shim, prop shaft hsg., 0.112 in (3852874) Price: $32.10 SUGGESTED QTY:1 VIEW DETAILS
14.	Countershaft, lower (3851342) Price: $746.00 SUGGESTED QTY:1 VIEW DETAILS
15.	Roller bearing, prop shaft hsg (3854249) Price: $44.30 SUGGESTED QTY:1 VIEW DETAILS
16.	Roller bearing, driveshaft, upper (183512) Price: $146.00 SUGGESTED QTY:1 VIEW DETAILS
17.	Shim, pinion position, 0.003 in (3852889) Price: $7.90 SUGGESTED QTY:1 VIEW DETAILS
17.	Shim, pinion position, 0.004 in (3852890) Price: $7.90 SUGGESTED QTY:1 VIEW DETAILS
17.	Shim, pinion position, 0.005 in (3852891) Price: $7.90 SUGGESTED QTY:1 VIEW DETAILS
17.	Shim, pinion position, 0.010 in (3852892) Price: $7.90 SUGGESTED QTY:1 VIEW DETAILS
18.	Housing, propeller shaft (3858051) Price: $390.00 SUGGESTED QTY:1 VIEW DETAILS
19.	Screw, prop shaft hsg (3853272) Price: $6.70 SUGGESTED QTY:1 VIEW DETAILS
20.	Propeller shaft (3857675) Price: $1,293.00 SUGGESTED QTY:1 VIEW DETAILS
21.	O-ring (3852866) Price: $6.70 SUGGESTED QTY:1 Contents of low... VIEW DETAILS
22.	O-ring, oil passage (3852959) Price: $4.40 SUGGESTED QTY:1 VIEW DETAILS
23.	Plug, oil plug (3854539) Price: $21.70 SUGGESTED QTY:1 VIEW DETAILS
24.	O-ring, oil plug (3855081) Price: $3.30 SUGGESTED QTY:1 Contents of upp... VIEW DETAILS
25.	Anode, prop shaft housing (3852970) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
26.	Retainer, anode (3852971) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
27.	Screw, anode (3852972) This product has been discontinued Price: $2,270.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
28.	Screw, anode retainer (3853309) This product has been discontinued Price: $56.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
29.	Washer, anode (3852973) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
30.	Retainer, driveshaft (3855636) Price: $55.10 SUGGESTED QTY:1 VIEW DETAILS
31.	Retainer, prop shaft housing (3853371) Price: $110.00 SUGGESTED QTY:1 VIEW DETAILS
32.	Screw, prop shaft retainer (3852478) Price: $31.30 SUGGESTED QTY:1 VIEW DETAILS
33.	Retainer, seal (3854601) Price: $8.70 SUGGESTED QTY:1 VIEW DETAILS
34.	Plug, trim tab hole (3850662) Price: $2.20 SUGGESTED QTY:1 VIEW DETAILS
35.	Screw, lower to upper housing (3854806) Price: $13.40 SUGGESTED QTY:1 VIEW DETAILS
36.	Screw, lower to upper housing (959968) Price: $9.80 SUGGESTED QTY:4 VIEW DETAILS
37.	Screw, lower to upper housing (3854805) Price: $10.00 SUGGESTED QTY:1 VIEW DETAILS
38.	Splined sleeve, intermediate (3852268) Price: $92.60 SUGGESTED QTY:1 VIEW DETAILS
39.	Split pin, propeller (3852056) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
40.	Spacer, propeller nut (3852350) Price: $51.00 SUGGESTED QTY:1 VIEW DETAILS
41.	Bushing (3852020) Price: $63.20 SUGGESTED QTY:1 VIEW DETAILS
42.	Propeller nut, propeller (3850984) Price: $29.80 SUGGESTED QTY:1 VIEW DETAILS
43.	Tube, water supply (3860252) Price: $100.00 SUGGESTED QTY:1 VIEW DETAILS
44.	Sealing, water supply tube (3852315) Price: $6.70 SUGGESTED QTY:1 Contents of low... VIEW DETAILS
45.	Propeller, 14½ x 19 (3860715) Price: $834.00 SUGGESTED QTY:1 Left hand, Stai... VIEW DETAILS
45.	Propeller, 15 x 17 (3862462) Price: $834.00 SUGGESTED QTY:1 Right hand, Sta... VIEW DETAILS
45.	Propeller, 14¼ x 21 (3817469) Price: $280.00 SUGGESTED QTY:1 Right hand, Alu... VIEW DETAILS
45.	Propeller, 14¼ x 21 (3860716) Price: $834.00 SUGGESTED QTY:1 Left hand, Stai... VIEW DETAILS
45.	Propeller, 14½ x 19 (3860708) Price: $834.00 SUGGESTED QTY:1 Right hand, Sta... VIEW DETAILS
45.	Propeller, 14 ¼ x 23 (3817470) Price: $280.00 SUGGESTED QTY:1 Right hand, Alu... VIEW DETAILS
45.	Propeller, 14½ x 19 (3860715) Price: $834.00 SUGGESTED QTY:1 Left hand, Stai... VIEW DETAILS
45.	Propeller, 14¼ x 21 (3860709) Price: $834.00 SUGGESTED QTY:1 Right hand, Sta... VIEW DETAILS
45.	Propeller, 15 x 17 (3862462) Price: $834.00 SUGGESTED QTY:1 Right hand, Sta... VIEW DETAILS
45.	Propeller, 14¼ x 21 (3860716) Price: $834.00 SUGGESTED QTY:1 Left hand, Stai... VIEW DETAILS
45.	Propeller, 14¼ x 23 (3850310) Price: $458.20 SUGGESTED QTY:1 Right hand, Sta... VIEW DETAILS
45.	Propeller, 14½ x 19 (3860708) Price: $834.00 SUGGESTED QTY:1 Right hand, Sta... VIEW DETAILS
45.	Propeller, 14¼ x 23 (3860717) Price: $834.00 SUGGESTED QTY:1 Left hand, Stai... VIEW DETAILS
45.	Propeller, 15½ x 13 (3840720) Price: $280.00 SUGGESTED QTY:1 Right hand, Alu... VIEW DETAILS
45.	Propeller, 14¼ x 21 (3860709) Price: $834.00 SUGGESTED QTY:1 Right hand, Sta... VIEW DETAILS
45.	Propeller, 15½ x 14 (3850304) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
45.	Propeller, 15½ x 15 (3817466) Price: $280.00 SUGGESTED QTY:1 Right hand, Alu... VIEW DETAILS
45.	Propeller, 14¼ x 23 (3860710) Price: $834.00 SUGGESTED QTY:1 Right hand, Sta... VIEW DETAILS
45.	Propeller, 15 x 15 (3850315) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
45.	Propeller, 15 x 172 (3817467) Price: $280.00 SUGGESTED QTY:1 Right hand, Alu... VIEW DETAILS
45.	Propeller, 15 x 15 (3850315) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
45.	Propeller, 15 x 16 (3850306) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
45.	Propeller, 14½ x 19 (3817468) Price: $280.00 SUGGESTED QTY:1 Right hand, Alu... VIEW DETAILS
46.	Bushing, propeller (3850324) Price: $180.00 SUGGESTED QTY:1 Aluminum VIEW DETAILS
46.	Bushing, propeller (3850324) Price: $180.00 SUGGESTED QTY:1 Stainless steel... VIEW DETAILS
47.	Sleeve, bushing (3850831) Price: $7.70 SUGGESTED QTY:1 VIEW DETAILS
48.	Ring, converging (3854241) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
49.	Zinc anode (3855411) Price: $50.00 SUGGESTED QTY:1 VIEW DETAILS
49.	Magnesium anode (3855412) Price: $51.70 SUGGESTED QTY:1 VIEW DETAILS
50.	Washer, trunnion, shift cable to bellcrank (3852182) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
51.	Hexagon screw, anode (3852186) Price: $7.80 SUGGESTED QTY:2 VIEW DETAILS
52.	Kit (3855275) Price: $61.70 SUGGESTED QTY:1 VIEW DETAILS
53.	Sealing, tube to gearcase (3854595) Price: $5.80 SUGGESTED QTY:1 VIEW DETAILS

106 Items
