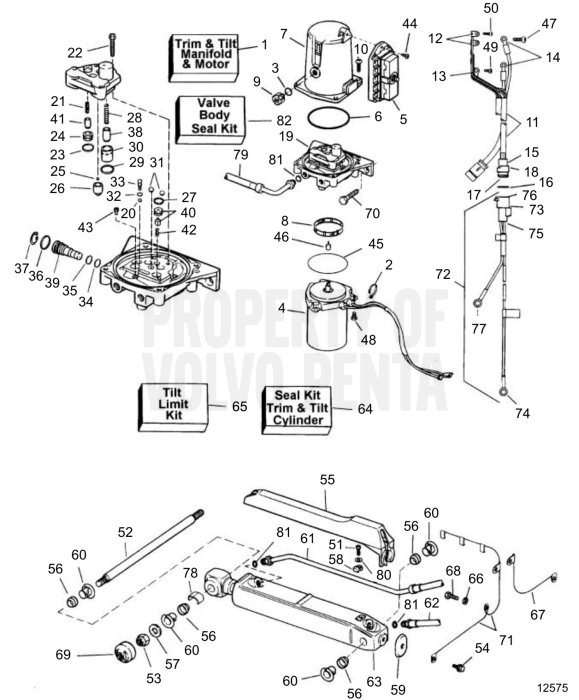

Power Trim System


1.	Hydraulic pump (3587079) Price: $1,113.00 SUGGESTED QTY:1 Has manual rele... VIEW DETAILS
1.	Hydraulic pump (3587079) Price: $1,113.00 SUGGESTED QTY:1 No manual relea... VIEW DETAILS
2.	Cable tie (3852158) This product has been discontinued Price: $0.50 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
3.	O-ring, piug (3852073) Price: $3.00 SUGGESTED QTY:1 Contents of val... VIEW DETAILS
4.	Electrical motor (3853945) This product has been discontinued Price: $14.60 SUGGESTED QTY:1 VIEW DETAILS
5.	Relay (3853946) This product has been discontinued Price: $14.50 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
6.	O-ring, reservoir (3852508) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
7.	Tank (3853989) This product has been discontinued Price: $118.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Filter (3852974) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Contents of val... VIEW DETAILS
9.	Plug, fill hole (3852976) Obsolete no longer made Price: $5.68 SUGGESTED QTY:1 VIEW DETAILS
10.	Screw, reservoir to manifold (3852977) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:4 VIEW DETAILS
11.	Wiring harness (3854038) Price: $249.00 SUGGESTED QTY:1 VIEW DETAILS
12.	Cable terminal (3852228) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
13.	Cable terminal (3852226) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
14.	Terminal (3852038) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
15.	Terminal (3852250) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
16.	O-ring, sleeve & connector (3852537) Price: $5.50 SUGGESTED QTY:1 Part of transom... VIEW DETAILS
17.	Terminal (3852253) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
18.	Plug, connector (3852251) Price: $3.20 SUGGESTED QTY:1 VIEW DETAILS
19.	Valve housing (3850033) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
20.	Ball, manual release (3852590) Price: $4.37 SUGGESTED QTY:1 VIEW DETAILS
21.	Spring, valve, trim down (3852578) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
22.	Screw, pump to manifold (3852983) Price: $4.00 SUGGESTED QTY:4 VIEW DETAILS
23.	O-ring, valve seat (3852984) Price: $97.00 SUGGESTED QTY:1 Contents of val... VIEW DETAILS
24.	Seat, valve, down (3852985) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
25.	Ball, piston, pump control (3852986) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 VIEW DETAILS
26.	Piston, pump control (3852987) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 VIEW DETAILS
27.	O-ring, piston, pump control (3852988) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Contents of val... VIEW DETAILS
28.	Spring, valve core, trim up (3852989) This product has been discontinued Price: $34.50 SUGGESTED QTY:1 VIEW DETAILS
29.	O-ring, valve seat, trim up (3852990) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Contents of val... VIEW DETAILS
30.	Spring seat, valve, trim up (3852991) This product has been discontinued Price: $8.40 SUGGESTED QTY:1 VIEW DETAILS
31.	Ball, pump inlet (3852023) Price: $4.10 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
32.	O-ring, manual release3 (3852992) This product has been discontinued Price: $4.00 SUGGESTED QTY:1 VIEW DETAILS
33.	Plug, manual release (3852993) This product has been discontinued Price: $8.80 SUGGESTED QTY:1 VIEW DETAILS
34.	Ring, manual release (3852994) Price: $6.00 SUGGESTED QTY:1 VIEW DETAILS
35.	O-ring, manual release (3852995) Price: $3.30 SUGGESTED QTY:1 10 1/2 in. (268... VIEW DETAILS
36.	O-ring, manual release (3852996) Price: $6.00 SUGGESTED QTY:1 10 1/2 in. (268... VIEW DETAILS
37.	Snap ring (3852997) Price: $9.80 SUGGESTED QTY:1 VIEW DETAILS
38.	Valve, trim up (3853803) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
39.	Valve, manual release (3853944) Price: $115.93 SUGGESTED QTY:1 VIEW DETAILS
40.	Valve (3853947) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
41.	Valve (3853948) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
42.	Spring, check valve (3852975) Price: $4.87 SUGGESTED QTY:2 VIEW DETAILS
43.	Filter, oil (3853313) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
44.	Screw, relay to reservoir (3852978) Price: $4.75 SUGGESTED QTY:1 VIEW DETAILS
45.	O-ring, motor to manifold (3852166) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Contents of val... VIEW DETAILS
46.	Pump, pump (3852982) Price: $15.00 SUGGESTED QTY:11 VIEW DETAILS
47.	Screw, terminal (3852981) This product has been discontinued Price: $4.00 SUGGESTED QTY:2 VIEW DETAILS
48.	Screw, relay to reservoir (3852978) Price: $4.75 SUGGESTED QTY:1 VIEW DETAILS
49.	Screw, terminal (982329) Price: $2.20 SUGGESTED QTY:3 VIEW DETAILS
50.	Screw, terminal (3852980) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 VIEW DETAILS
51.	Screw, trim sender (3852081) Price: $7.90 SUGGESTED QTY:2 VIEW DETAILS
52.	Pin, tilt cylinder (3853422) Price: $287.00 SUGGESTED QTY:2 VIEW DETAILS
53.	Nut, pivot pin (3853329) Price: $6.80 SUGGESTED QTY:4 VIEW DETAILS
54.	Flange screw, cover (3852568) Price: $8.70 SUGGESTED QTY:3 VIEW DETAILS
55.	Cardboard tube, tilt cylinder (3852378) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
56.	Grommet, pivot pin (3853424) Price: $5.50 SUGGESTED QTY:2 VIEW DETAILS
57.	Washer (3852573) Price: $3.20 SUGGESTED QTY:4 VIEW DETAILS
58.	Retainer, oil line (3852579) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
59.	Retainer, cover (3852681) Price: $9.85 SUGGESTED QTY:2 VIEW DETAILS
60.	Bushing, pivot pin (3853423) Price: $3.20 SUGGESTED QTY:2 VIEW DETAILS
61.	Hydraulic hose, starboard, down (3853854) Price: $102.00 SUGGESTED QTY:1 VIEW DETAILS
61.	Hydraulic hose, port, down (3853856) Price: $104.00 SUGGESTED QTY:1 VIEW DETAILS
62.	Oil line, starboard, up (3853855) Price: $100.90 SUGGESTED QTY:1 VIEW DETAILS
62.	Oil line, port, up (3853857) Price: $106.00 SUGGESTED QTY:1 VIEW DETAILS
63.	Cylinder (3885196) Price: $2,090.00 SUGGESTED QTY:2 10 1/2 in. (268... VIEW DETAILS
64.	Sealing kit, cylinder (3854247) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
65.	Trimming limiter (3850887) Price: $47.50 SUGGESTED QTY:1 Limits cylinder... VIEW DETAILS
66.	Washer (3852193) Price: $6.70 SUGGESTED QTY:2 VIEW DETAILS
67.	Chassis ground cable, 2-loop (3853849) Price: $12.10 SUGGESTED QTY:1 VIEW DETAILS
68.	Screw (3852050) Price: $4.40 SUGGESTED QTY:2 VIEW DETAILS
69.	Cardboard tube, pivot shaft, tilt cylinder (3852958) Price: $12.10 SUGGESTED QTY:4 VIEW DETAILS
70.	Screw (3852581) Price: $1.00 SUGGESTED QTY:2 VIEW DETAILS
71.	Chassis ground cable, 3-loop (3853848) Price: $12.10 SUGGESTED QTY:1 VIEW DETAILS
72.	Wiring harness, trim/tilt (3854031) Price: $46.60 SUGGESTED QTY:1 VIEW DETAILS
73.	Connector (3852249) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
74.	Terminal, ring (3852527) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
75.	Plug, connector (3852251) Price: $3.20 SUGGESTED QTY:1 VIEW DETAILS
76.	Terminal, receptacle (3852252) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
77.	Terminal, ring (3852036) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
78.	Spring, ground (3853421) Price: $3.20 SUGGESTED QTY:2 VIEW DETAILS
79.	Hydraulic hose, pump to manifold (3853825) Price: $122.00 SUGGESTED QTY:2 VIEW DETAILS
80.	Washer, retainer (3852190) Price: $13.70 SUGGESTED QTY:2 VIEW DETAILS
81.	O-ring, oil iine (3852165) Price: $2.20 SUGGESTED QTY:12 Contents of val... VIEW DETAILS
82.	Sealing kit, valve body (3854397) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS

85 Items

Grouped product items
Product Name	Qty
Hydraulic pump $1,113.00
Hydraulic pump $1,113.00
Cable tie $0.50
O-ring, piug $3.00
Electrical motor $14.60
Relay $14.50
O-ring, reservoir $99,999.00
Tank $118.00
Filter $99,999.00
Plug, fill hole $5.68
Screw, reservoir to manifold $99,999.00
Wiring harness $249.00
Cable terminal $99,999.00
Cable terminal $99,999.00
Terminal $99,999.00
Terminal $99,999.00
O-ring, sleeve & connector $5.50
Terminal $99,999.00
Valve housing $99,999.00
Ball, manual release $4.37
Spring, valve, trim down $99,999.00
Screw, pump to manifold $4.00
O-ring, valve seat $97.00
Seat, valve, down $99,999.00
Ball, piston, pump control $99,999.00
Piston, pump control $99,999.00
O-ring, piston, pump control $99,999.00
Spring, valve core, trim up $34.50
O-ring, valve seat, trim up $99,999.00
Spring seat, valve, trim up $8.40
Ball, pump inlet $4.10
O-ring, manual release3 $4.00
Plug, manual release $8.80
Ring, manual release $6.00
O-ring, manual release $3.30
O-ring, manual release $6.00
Snap ring $9.80
Valve, trim up $99,999.00
Valve, manual release $115.93
Valve $99,999.00
Valve $99,999.00
Spring, check valve $4.87
Filter, oil $99,999.00
O-ring, motor to manifold $99,999.00
Pump, pump $15.00
Screw, terminal $4.00
Screw, relay to reservoir $4.75
Screw, terminal $2.20
Screw, terminal $99,999.00
Screw, trim sender $7.90
Pin, tilt cylinder $287.00
Nut, pivot pin $6.80
Flange screw, cover $8.70
Cardboard tube, tilt cylinder $99,999.00
Grommet, pivot pin $5.50
Washer $3.20
Retainer, oil line $99,999.00
Retainer, cover $9.85
Bushing, pivot pin $3.20
Hydraulic hose, port, down $104.00
Hydraulic hose, starboard, down $102.00
Oil line, starboard, up $100.90
Oil line, port, up $106.00
Cylinder $2,090.00
Sealing kit, cylinder $99,999.00
Trimming limiter $47.50
Washer $6.70
Chassis ground cable, 2-loop $12.10
Screw $4.40
Cardboard tube, pivot shaft, tilt cylinder $12.10
Screw $1.00
Chassis ground cable, 3-loop $12.10
Wiring harness, trim/tilt $46.60
Connector $99,999.00
Terminal, ring $99,999.00
Plug, connector $3.20
Terminal, receptacle $99,999.00
Terminal, ring $99,999.00
Spring, ground $3.20
Hydraulic hose, pump to manifold $122.00
Washer, retainer $13.70
O-ring, oil iine $2.20
Sealing kit, valve body $99,999.00
