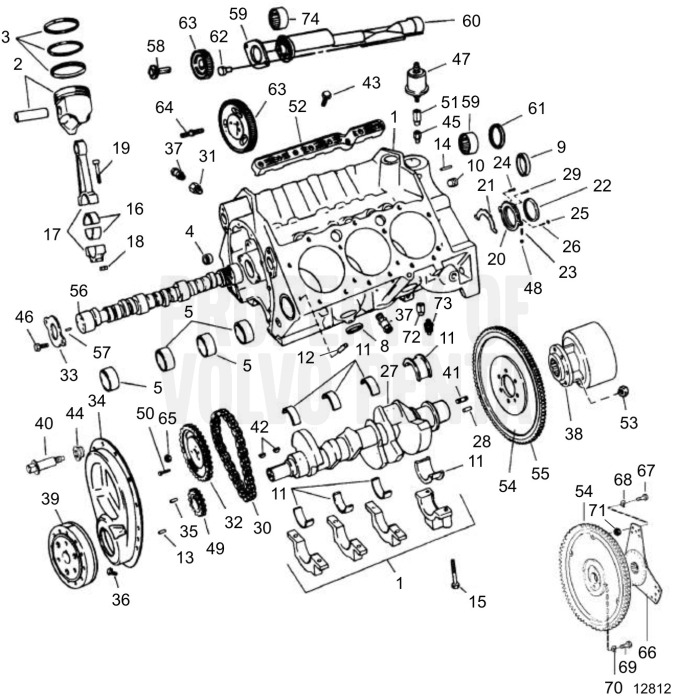

Crankcase


1.	Longblock (3856682) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Piston, standard (21179952) Price: $353.00 SUGGESTED QTY:6 VIEW DETAILS
2.	Piston, 0.50 mm os (3855743) Obsolete no longer made Price: $99,999.00 SUGGESTED QTY:6 0.020 in. VIEW DETAILS
3.	Piston ring, standard (21179959) Price: $161.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Piston ring, 0.50 mm os (3855741) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 0.020 in., Obso... VIEW DETAILS
5.	Bearing (3856778) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
11.	Bearing, 0.020 in. U.S. (3856774) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
11.	Bearing, standard (3856772) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
11.	Bearing, 0.010 in. U.S. (3856773) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
15.	Bolt, bearing cap (3862355) Price: $22.70 SUGGESTED QTY:8 VIEW DETAILS
16.	Bearing, standard (21179992) Price: $82.20 SUGGESTED QTY:6 VIEW DETAILS
17.	Connecting rod (21179974) Price: $450.00 SUGGESTED QTY:6 VIEW DETAILS
18.	Nut, connecting rod (3853148) Price: $3.55 SUGGESTED QTY:16 VIEW DETAILS
20.	Housing, rear oil seal (3858695) Price: $331.00 SUGGESTED QTY:1 VIEW DETAILS
28.	Pin, flywheel dowel (3855969) Price: $6.70 SUGGESTED QTY:1 VIEW DETAILS
32.	Sprocket, camshaft (3854319) Price: $99.00 SUGGESTED QTY:1 VIEW DETAILS
38.	Clutch, flywheel (3858437) Price: $412.00 SUGGESTED QTY:1 SX, DP-S VIEW DETAILS
40.	Screw, timing cover (3855736) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
47.	Oil pressure sensor, oil pressure (3857532) Price: $89.90 SUGGESTED QTY:1 VIEW DETAILS
49.	Bolt, camshaft sprocket (3854330) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:3 Obsolete part VIEW DETAILS
51.	Guide (3855825) Price: $37.90 SUGGESTED QTY:1 GL VIEW DETAILS
52.	Nut, flywheel & coupler to crankshaft (22746891) Price: $4.30 SUGGESTED QTY:6 SX, DP-S VIEW DETAILS
53.	Flywheel (3854325) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
56.	Pin, camshaft (3857717) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
68.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 290 DP VIEW DETAILS
69.	Screw (3856130) Price: $15.90 SUGGESTED QTY:6 290 DP VIEW DETAILS
71.	Washer, screw, damper to flywheel (940097) Price: $0.40 SUGGESTED QTY:3 290 DP VIEW DETAILS

27 Items

Grouped product items
Product Name	Qty
Longblock $0.00
Piston, standard $353.00
Piston, 0.50 mm os $99,999.00
Piston ring, standard $161.00
Piston ring, 0.50 mm os $99,999.00
Cap plug, oil gallery $7.90
Bearing $99,999.00
Bearing, camshaft, #1 & #4 $112.00
Bearing, camshaft, #2 & #3 $134.00
Pin, rear oil seal housing $5.60
Core plug, engine block $19.00
Plug $35.70
Bearing, 0.010 in. U.S. $99,999.00
Bearing, 0.020 in. U.S. $99,999.00
Bearing, standard $99,999.00
Locating pin, cylinder head $4.60
Pin, front cover $18.00
Pin, trans line-up $13.40
Bolt, bearing cap $22.70
Bearing, standard $82.20
Connecting rod $450.00
Nut, connecting rod $3.55
Bolt, connecting rod $25.00
Housing, rear oil seal $331.00
Stud, oil pan, rear $20.60
Sealing, rear crankshaft $104.00
Gasket, rear oil seal $14.80
Bolt, seal retainer $4.90
Nut, oil pan $6.70
Stud, seal retainer $11.20
Crankshaft $1,985.00
Pin, flywheel dowel $6.70
Bolt, seal retainer $14.40
Chain, camshaft timing $166.00
Pin $6.70
Sprocket, camshaft $99.00
Retainer, camshaft sprocket $37.90
Timing gear casing $259.00
Drain cock, engine $25.20
Plug, water drain, engine $12.10
Clutch, flywheel $412.00
Vibration damper $528.00
Stud, timing cover $25.20
Screw, timing cover $99,999.00
Screw, timing cover $9.20
Stud, flywheel & coupler to crankshaft $22.70
Woodruff key, crankshaft $18.10
Bolt, valve lifter guide $25.00
Grommet, timing cover $26.00
Adapter $39.00
Bolt, camshaft retainer $4.00
Pressure sensor, oil pressure, dual station $84.80
Oil pressure sensor, oil pressure $89.90
Sprocket, crankshaft $219.00
Bolt, camshaft sprocket $99,999.00
Elbow, oil pressure sender to adapter $6.40
Guide $37.90
Nut, flywheel & coupler to crankshaft $4.30
Flywheel $99,999.00
Gear, flywheel $292.00
Camshaft $905.00
Pin, camshaft $99,999.00
Bolt, balancer gear $9.20
Retainer, balancer shaft $30.30
Bearing $209.00
Shaft $329.00
Core plug, camshaft $8.40
Screw, balancer shaft retainer $3.30
Gear, balancer shaft $181.00
Stud, camshaft sprocket $62.80
Nut, camshaft sprocket stud $13.80
Oscillation damper, flywheel, 290 DP $529.00
Screw, torsional damper $9.50
Spring washer $0.30
Screw $15.90
Spring washer $0.50
Washer, screw, damper to flywheel $0.40
Fitting, adapter, oil pressure switch $4.60
Sensor, oil pressure $51.00
Bearing, balancer shaft, forward $91.90
Fitting, drain, knock sensor $20.00
