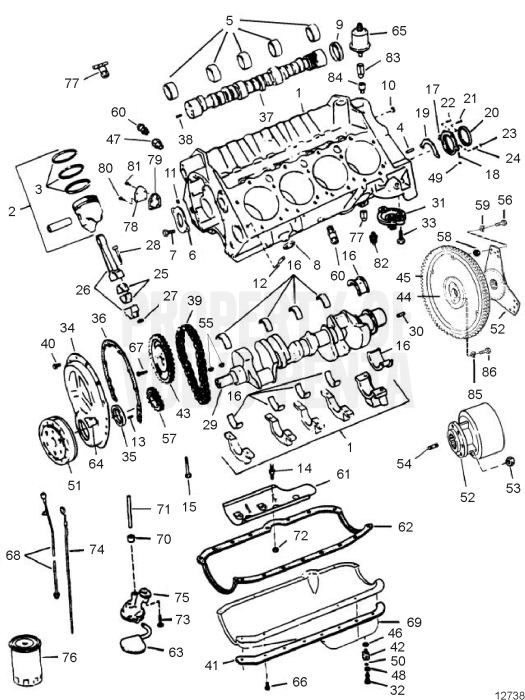

Crankcase


1.	Longblock (3801417) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Piston, standard (3854219) Price: $2,750.00 SUGGESTED QTY:8 VIEW DETAILS
2.	Piston, 0.010 in. os (3856142) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
2.	Piston kit, 0.030 in. os (3854221) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
4.	Locating pin, flywheel housing (3853113) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
5.	Kit (3856162) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
14.	Stud, bearing cap (3862354) Price: $41.20 SUGGESTED QTY:5 VIEW DETAILS
15.	Bolt, bearing cap (3862355) Price: $22.70 SUGGESTED QTY:10 VIEW DETAILS
16.	Bearing (3856154) This product has been discontinued Price: $166.00 SUGGESTED QTY:1 VIEW DETAILS
16.	Bearing, 0.010 in. U.S. (3856155) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 0.25mm, Obsolet... VIEW DETAILS
16.	Bearing, 0.020 in. U.S. (3856156) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
25.	Bearing, standard (3853149) Price: $97.80 SUGGESTED QTY:8 VIEW DETAILS
29.	Crankshaft (3853156) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
30.	Pin, flywheel (3855969) Price: $6.70 SUGGESTED QTY:1 VIEW DETAILS
40.	Screw, timing cover (3855736) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
52.	Clutch (3858437) Price: $412.00 SUGGESTED QTY:1 SX, DP-S VIEW DETAILS
53.	Nut (22746891) Price: $4.30 SUGGESTED QTY:6 SX, DP-S VIEW DETAILS
58.	Washer, screw, damper to flywheel (940097) Price: $0.40 SUGGESTED QTY:3 290 DP VIEW DETAILS
59.	Spring washer, damper to flywheel (942336) Price: $0.30 SUGGESTED QTY:3 290 DP VIEW DETAILS
65.	Oil pressure sensor, oil pressure (3857532) Price: $89.90 SUGGESTED QTY:1 VIEW DETAILS
68.	Tube, oil level gage (3883718) Price: $123.00 SUGGESTED QTY:1 VIEW DETAILS
72.	Nut, oil deflector (946420) Price: $2.40 SUGGESTED QTY:5 VIEW DETAILS
74.	Gauge (3862844) Price: $27.10 SUGGESTED QTY:1 VIEW DETAILS
81.	Flange screw, cover, fuel pump flange (3853419) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS

24 Items

Grouped product items
Product Name	Qty
Longblock $99,999.00
Piston, 0.010 in. os $99,999.00
Piston kit, 0.030 in. os $99,999.00
Piston, standard $2,750.00
Piston ring kit, standard $141.00
Piston ring kit, 0.030 in. os $90.90
Pin, flywheel housing $6.70
Locating pin, flywheel housing $99,999.00
Kit $99,999.00
Retainer $40.00
Screw, camshaft retainer $3.30
Core plug, engine block $19.00
Core plug, rear camshaft bearing $8.40
Plug, engine block $35.70
Cap plug, oil gallery, front $7.90
Locating pin, cylinder head $4.60
Stud, bearing cap $41.20
Bolt, bearing cap $22.70
Bearing, 0.020 in. U.S. $99,999.00
Bearing $166.00
Bearing, 0.010 in. U.S. $99,999.00
Housing, rear oil seal $187.00
Stud, oil pan $9.30
Gasket, rear oil seal housing $14.80
Sealing, rear $104.00
Bolt, rear oil seal $14.40
Bolt, rear oil seal $4.90
Nut, rear oil seal retainer $6.70
Stud, rear oil seal housing $11.20
Bearing, standard $97.80
Bearing, 0.010 in. U.S. $73.70
Connecting rod $396.00
Nut, connecting rod $4.90
Bolt, connecting rod $68.20
Crankshaft $99,999.00
Pin, flywheel $6.70
Valve, oil filter bypass $134.00
Retainer, oil pan drain $59.50
Screw, oil filter adapter to engine $10.20
Timing gear cover $123.00
Grommet, timing cover $26.00
Gasket, timing cover $11.80
Camshaft $807.00
Pin, timing cover $18.00
Chain, camshaft timing $166.00
Screw, timing cover $99,999.00
Screw, timing cover $9.20
Reinforcement, oil pan $25.00
Reinforcement, oil pan $25.00
Fitting, oil pan drain $93.10
Sprocket, camshaft $153.00
Washer, bolt, camshaft sprocket $2.40
Flywheel $863.00
Gear, flywheel $292.00
Washer, fitting to oil pan $18.80
Adapter, petcock $33.60
Washer, retainer, oil pan drain $6.60
Nut, oil pan $13.80
O-ring, retainer, oil pan drain $2.40
Vibration damper $528.00
Clutch $412.00
Nut $4.30
Stud $22.70
Oscillation damper $529.00
Screw, torsional damper to flywheel $9.50
Sprocket, crankshaft $219.00
Washer, screw, damper to flywheel $0.40
Spring washer, damper to flywheel $0.30
Drain cock, water drain, engine $25.20
Plug, water drain, engine $12.10
Baffle, oil $26.00
Gasket kit, oil pan $147.00
Strainer $78.00
Pin, bearing cap $5.60
Oil pressure sensor, oil pressure $89.90
Pressure sensor, oil pressure, dual station $84.80
Bolt, oil pan $6.20
Bolt, camshaft sprocket $7.40
Tube, oil level gage $123.00
O-ring, oil tube to fitting $1.70
Sump $742.00
Retainer, oil pump shaft $6.70
Shaft, oil pump $83.20
Nut, oil deflector $2.40
Bolt, oil pump $9.80
Gauge $27.10
Oil pump $450.00
Oil filter $12.30
Fitting, drain, knock sensor $20.00
Cardboard tube $14.20
Gasket, fuel pump plate $18.00
Flange screw, cover, fuel pump flange $7.90
Flange screw, cover, fuel pump flange $99,999.00
Sensor, oil pressure $51.00
Elbow, oil pressure sender to adapter $6.40
Adapter, oil pressure sending unit $39.00
Spring washer, flywheel to crank $0.50
Bolt, flywheel to crank $15.90
Woodruff key $3.10
