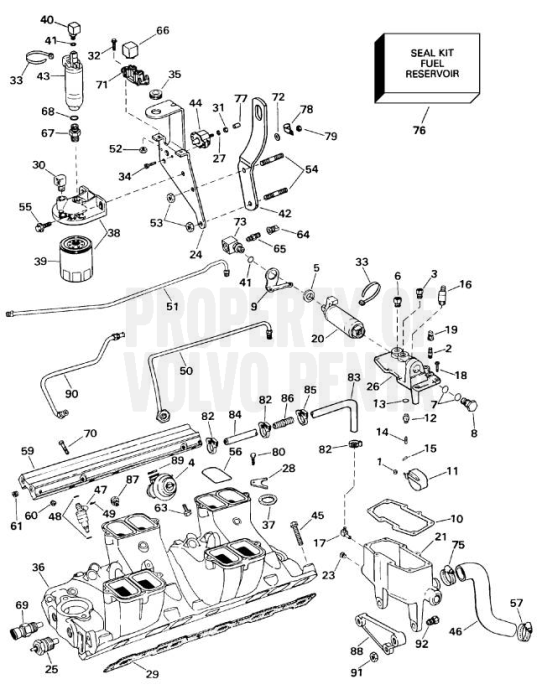

Fuel System and Lower Intake Manifold
|
1. |
Retainer, float pin (3852034)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
2. |
Valve, reservoir assy (3854152)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
8. |
Retainer, fuel pump to cover (3853572)
Price: $6.50SUGGESTED QTY:1
Obsolete part, ...
VIEW DETAILS
|
|
|
9. |
Bracket, fuel pump grommet (3853573)
Price: $5.60SUGGESTED QTY:1
Obsolete part, ...
VIEW DETAILS
|
|
|
10. |
Gasket, cover (3857728)
Price: $80.10SUGGESTED QTY:1
Reservoir assy
VIEW DETAILS
|
|
|
11. |
Float (3853575)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
12. |
Spring seat, float needle (3853576)
Price: $18.30SUGGESTED QTY:1
Reservoir assy
VIEW DETAILS
|
|
|
13. |
Gasket, float needle seat (3853577)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part, ...
VIEW DETAILS
|
|
|
14. |
Needle, float
THIS PRODUCT HAS BEEN DISCONTINUED
|
|
|
17. |
Elbow, reservoir to thermostat hsg (3852480)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
18. |
Screw, cover to reservoir (3853606)
Price: $99,999.00SUGGESTED QTY:8
Obsolete part, ...
VIEW DETAILS
|
|
|
19. |
Protective cap, pressure valve (3853616)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
20. |
Fuel pump, high pressure (3857650)
Price: $443.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
21. |
Screw (3853558)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
22. |
Reservoir (3854149)
Price: $469.34SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
Plug, reservoir drain (3852167)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
24. |
Bracket, fuel filter and fuel pump (3856439)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
26. |
Cardboard tube, reservoir assy (3854405)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
27. |
Spring washer, circuit breaker (3852001)
Price: $99,999.00SUGGESTED QTY:8
Obsolete part
VIEW DETAILS
|
|
|
29. |
Intake gasket kit (3854096)
Price: $16.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
30. |
Elbow, inlet, fuel filter cover (3852013)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
31. |
Nut, circuit breaker (3852064)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
32. |
Screw, relay & cable assy (3852208)
Price: $99,999.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
36. |
Manifold, lower (3854516)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part, ...
VIEW DETAILS
|
|
|
38. |
Kit (3850861)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
38. |
Cover (3850835)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
39. |
Fuel filter (3862228)
Price: $17.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Bracket, cylinder head (3854377)
Price: $99,999.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
43. |
Fuel pump, low pressure (3857985)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
45. |
Screw, intake manifold, long (3854654)
Price: $19.02SUGGESTED QTY:4
VIEW DETAILS
|
|
|
45. |
Screw, intake manifold (3854653)
Price: $3.92SUGGESTED QTY:12
VIEW DETAILS
|
|
|
47. |
Injector (3854518)
Price: $99,999.00SUGGESTED QTY:8
Obsolete part
VIEW DETAILS
|
|
|
49. |
Clip, fuel injector (3855191)
Price: $64.45SUGGESTED QTY:8
VIEW DETAILS
|
|
|
50. |
Fuel pipe, fuel regulator to reservoir (3854646)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
51. |
Fuel pipe, low pressure pump to reservoir (3854644)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
52. |
Nut, relay to fuel pump mtg bracket (3852077)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
53. |
Nut (22746891)
Price: $4.30SUGGESTED QTY:6
SX, DP-S
VIEW DETAILS
|
|
|
56. |
O-ring, manifold (3854515)
Price: $10.35SUGGESTED QTY:8
VIEW DETAILS
|
|
|
57. |
Hose clamp, hose to gimbal (3863438)
Price: $3.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
58. |
Nut (3850657)
Price: $2.25SUGGESTED QTY:2
VIEW DETAILS
|
|
|
59. |
Fuel pipe (3854574)
Price: $439.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
60. |
Plug, fuel rail, 1/16-27 nptf (3855032)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
62. |
Fuel pipe (3854645)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
64. |
Protective cap, pressure valve (3853616)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
65. |
Valve, reservoir assy (3854152)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
66. |
Relay, fuel pump (3857533)
Price: $36.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
70. |
Screw, fuel rail to lower manifold (940189)
Price: $99,999.00SUGGESTED QTY:4
VIEW DETAILS
|
|
|
71. |
Bracket, relay (3852210)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
72. |
Spacer sleeve, clamp, oil tube to fuel filter bracket (3852495)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
74. |
O-ring (3855190)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
76. |
Kit, fuel reservoir (3850374)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
77. |
Protective cap, breaker assy, fuel pump (3853537)
Price: $99,999.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
78. |
Clamp, oil withdrawal tube to fuel filter brkt (3853261)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
79. |
Nut, clamp, oil withdrawal tube (3852129)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
80. |
Flange screw, distributor clamp to engine (3853557)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
82. |
Hose, antisiphon valve to reservoir (3850653)
Price: $132.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
85. |
Nipple, antisiphon (3850666)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
87. |
Bracket, reservoir to flywheel hsg (3854582)
Price: $99,999.00SUGGESTED QTY:1
Gi SX, GSi SX
VIEW DETAILS
|
|
|
87. |
Bracket, reservoir to flywheel hsg (3850271)
Price: $99,999.00SUGGESTED QTY:1
SX, DP-S
VIEW DETAILS
|
59 Items
