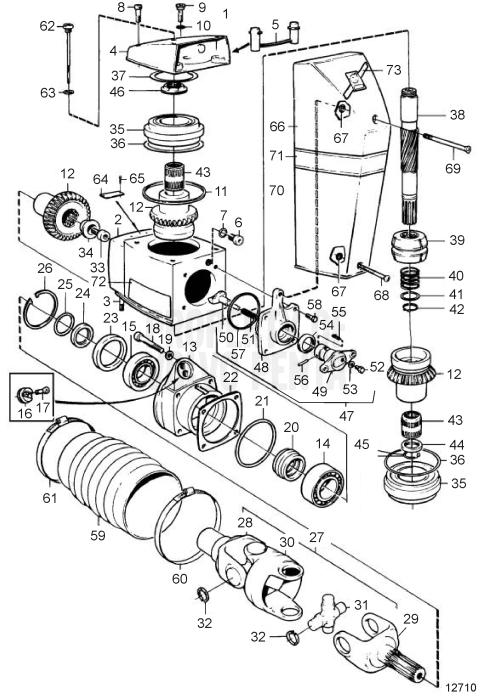

Upper Gear Unit


1.	Gear (3858785) Price: $10,400.00 SUGGESTED QTY:1 VIEW DETAILS
1.	Drive, DP-D1 (3868728) Price: $22,600.00 SUGGESTED QTY:1 1.68:1 VIEW DETAILS
1.	Aquamatic drive, DP-D1 (3868727) Price: $22,600.00 SUGGESTED QTY:1 1.78:1 VIEW DETAILS
1.	Drive, DP-D1 (872864) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
1.	Aquamatic drive, DP-D1 (3868726) Price: $22,600.00 SUGGESTED QTY:1 1.95 VIEW DETAILS
1.	Aquamatic drive, DP-D1 (872863) Price: $22,600.00 SUGGESTED QTY:1 2.30:1 VIEW DETAILS
1.	Aquamatic drive, exc, DP-D1, exch (872863) Price: $22,600.00 SUGGESTED QTY:1 2.30:1 VIEW DETAILS
2.	Gear housing (23838473) Price: $1,558.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Stud (977241) Price: $99.30 SUGGESTED QTY:2 VIEW DETAILS
4.	Cardboard tube (854677) Price: $399.00 SUGGESTED QTY:1 VIEW DETAILS
5.	Plastic plug (854198) Price: $6.30 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
6.	Plug (981965) Price: $29.40 SUGGESTED QTY:1 VIEW DETAILS
7.	Gasket (897682) Price: $5.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Hex. socket screw (941807) Price: $21.20 SUGGESTED QTY:3 VIEW DETAILS
9.	Hollow screw (814643) Price: $128.00 SUGGESTED QTY:1 VIEW DETAILS
10.	O-ring (955989) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
11.	Gasket (832669) Price: $14.00 SUGGESTED QTY:1 VIEW DETAILS
12.	Gear (873313) Price: $3,519.00 SUGGESTED QTY:1 VIEW DETAILS
13.	Bearing box (23838487) Price: $858.00 SUGGESTED QTY:1 VIEW DETAILS
14.	Roller bearing (3850852) Price: $275.00 SUGGESTED QTY:1 VIEW DETAILS
15.	Roller bearing (183247) Price: $185.00 SUGGESTED QTY:1 VIEW DETAILS
16.	Pivot pin (852705) Price: $247.00 SUGGESTED QTY:1 VIEW DETAILS
17.	Hex. socket screw (941807) Price: $21.20 SUGGESTED QTY:3 VIEW DETAILS
18.	Hex. socket screw (984068) Price: $6.10 SUGGESTED QTY:4 VIEW DETAILS
19.	Washer (942598) Price: $3.20 SUGGESTED QTY:4 VIEW DETAILS
20.	Pretensioning sleeve (853484) Price: $46.60 SUGGESTED QTY:1 VIEW DETAILS
21.	O-ring (967344) Price: $20.80 SUGGESTED QTY:1 VIEW DETAILS
22.	Shim, 0.10 mm (853034) Price: $23.10 SUGGESTED QTY:1 VIEW DETAILS
22.	Shim, 0.15 mm (853035) Price: $26.50 SUGGESTED QTY:1 VIEW DETAILS
22.	Shim, 0.35 mm (853036) Price: $30.80 SUGGESTED QTY:1 VIEW DETAILS
23.	Sealing ring (839253) Price: $33.20 SUGGESTED QTY:1 VIEW DETAILS
24.	Washer (832675) Price: $51.90 SUGGESTED QTY:1 VIEW DETAILS
25.	O-ring (956000) Price: $9.40 SUGGESTED QTY:1 VIEW DETAILS
26.	Snap ring (914538) Price: $10.30 SUGGESTED QTY:1 VIEW DETAILS
27.	Universal joint (3860230) Price: $1,047.00 SUGGESTED QTY:1 VIEW DETAILS
28.	Fork (3860230) Price: $1,047.00 SUGGESTED QTY:1 VIEW DETAILS
29.	Fork (854617) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Intermediate section (3858283) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Spider (3860232) Price: $261.00 SUGGESTED QTY:2 VIEW DETAILS
32.	Lock ring (24383) Price: $13.30 SUGGESTED QTY:8 VIEW DETAILS
33.	Screw (3852309) Price: $35.00 SUGGESTED QTY:1 VIEW DETAILS
34.	Washer (853026) Price: $50.90 SUGGESTED QTY:1 VIEW DETAILS
35.	Bearing (3857176) Price: $323.00 SUGGESTED QTY:2 VIEW DETAILS
36.	Shim, 0.05 mm (943869) Price: $14.20 SUGGESTED QTY:1 VIEW DETAILS
36.	Shim, 0.10 mm (946179) Price: $14.20 SUGGESTED QTY:1 VIEW DETAILS
36.	Shim, 0.20 mm (943870) Price: $14.60 SUGGESTED QTY:1 VIEW DETAILS
37.	Shim, 0.05 mm (941826) Price: $13.60 SUGGESTED QTY:1 VIEW DETAILS
37.	Shim, 0.20 mm (941827) Price: $13.60 SUGGESTED QTY:1 VIEW DETAILS
37.	Shim, 0.35 mm (948230) Price: $14.20 SUGGESTED QTY:1 VIEW DETAILS
38.	Shaft (3852292) Price: $581.00 SUGGESTED QTY:1 VIEW DETAILS
39.	Sliding sleeve (3855783) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
40.	Spring (3852296) Price: $5.80 SUGGESTED QTY:1 VIEW DETAILS
41.	Washer (3852298) Price: $7.70 SUGGESTED QTY:1 VIEW DETAILS
42.	Snap ring (951078) Price: $1.60 SUGGESTED QTY:1 VIEW DETAILS
43.	Bearing (3852390) Price: $20.20 SUGGESTED QTY:2 VIEW DETAILS
44.	Spacer ring (3852294) Price: $39.90 SUGGESTED QTY:1 VIEW DETAILS
45.	Lock ring (3852295) Price: $3.20 SUGGESTED QTY:2 VIEW DETAILS
46.	Nut, 0 mm (3852301) Price: $16.80 SUGGESTED QTY:1 VIEW DETAILS
46.	Nut, 0.20 mm (3852302) Price: $19.00 SUGGESTED QTY:1 VIEW DETAILS
46.	Nut, 0.40 mm (3852303) Price: $16.80 SUGGESTED QTY:1 VIEW DETAILS
46.	Nut, 0.60 mm (3852375) Price: $16.80 SUGGESTED QTY:1 VIEW DETAILS
47.	Shift mechanism (3855787) Price: $958.00 SUGGESTED QTY:1 VIEW DETAILS
48.	Bearing housing (3855785) Price: $530.00 SUGGESTED QTY:1 VIEW DETAILS
49.	Eccentric piston (897816) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
50.	Dog (3856502) Price: $165.00 SUGGESTED QTY:1 VIEW DETAILS
51.	Spring (814184) Price: $1.90 SUGGESTED QTY:1 VIEW DETAILS
52.	Hexagon screw (897711) Price: $27.10 SUGGESTED QTY:1 VIEW DETAILS
53.	Shim (897871) Price: $3.70 SUGGESTED QTY:1 VIEW DETAILS
54.	Sealing ring (853868) Price: $36.40 SUGGESTED QTY:1 VIEW DETAILS
55.	Spring pin (951924) Price: $0.30 SUGGESTED QTY:1 VIEW DETAILS
56.	Clevis pin (942871) Price: $17.50 SUGGESTED QTY:1 VIEW DETAILS
57.	O-ring (925093) Price: $2.10 SUGGESTED QTY:1 VIEW DETAILS
58.	Hexagon screw (940169) Price: $7.60 SUGGESTED QTY:4 VIEW DETAILS
59.	Bellows kit (876294) Price: $100.30 SUGGESTED QTY:1 VIEW DETAILS
60.	Hose clamp (22274888) Price: $21.70 SUGGESTED QTY:1 VIEW DETAILS
61.	Hose clamp (22274887) Price: $12.10 SUGGESTED QTY:1 VIEW DETAILS
62.	Oil dipstick (839351) Price: $108.00 SUGGESTED QTY:1 VIEW DETAILS
63.	O-ring (955974) Price: $4.30 SUGGESTED QTY:1 VIEW DETAILS
64.	Type plate (3817315) Price: $7.10 SUGGESTED QTY:1 VIEW DETAILS
65.	Drive screw (804269) Price: $4.50 SUGGESTED QTY:2 VIEW DETAILS
66.	Protecting cover (3857148) Price: $290.00 SUGGESTED QTY:1 VIEW DETAILS
67.	O-ring (925052) Price: $1.50 SUGGESTED QTY:2 VIEW DETAILS
68.	Screw (854661) Price: $13.20 SUGGESTED QTY:1 VIEW DETAILS
69.	Screw (872027) Price: $13.50 SUGGESTED QTY:1 VIEW DETAILS
70.	Decal set (876636) Price: $73.10 SUGGESTED QTY:1 VIEW DETAILS
71.	Decal (872866) Price: $42.40 SUGGESTED QTY:1 VIEW DETAILS
72.	Decal, port (872868) Price: $19.00 SUGGESTED QTY:1 VIEW DETAILS
72.	Decal, starboard (872867) Price: $19.00 SUGGESTED QTY:1 VIEW DETAILS
73.	Sign (854144) Price: $33.20 SUGGESTED QTY:1 VIEW DETAILS
