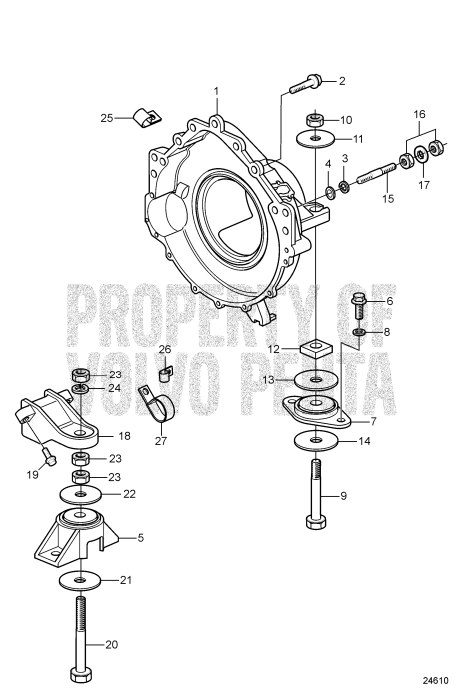

Flywheel Housing and Mounts


1.	Housing (3807905) Price: $2,070.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Flange screw, lift bracket to cylinder head (944429) Price: $3.80 SUGGESTED QTY:1 Rear, upper VIEW DETAILS
2.	Flange screw, lift bracket to cylinder head (3855983) Price: $4.60 SUGGESTED QTY:1 Front, upper VIEW DETAILS
2.	Flange screw, flywheel housing to engine (946472) This product has been discontinued Price: $0.00 SUGGESTED QTY:3 WTR VIEW DETAILS
3.	Spring washer (3856736) Price: $2.20 SUGGESTED QTY:2 VIEW DETAILS
4.	Washer, ground stud, flywheel hsg (944633) This product has been discontinued Price: $1.00 SUGGESTED QTY:2 WTR VIEW DETAILS
8.	Washer, rear mount to transom plate (3852155) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:4 Obsolete part VIEW DETAILS
9.	Hexagon screw, rear mount (3587962) Price: $6.70 SUGGESTED QTY:2 VIEW DETAILS
10.	Lock nut, rear mount (3862657) Price: $6.90 SUGGESTED QTY:2 VIEW DETAILS
15.	Stud, flywheel housing to engine (22287141) Price: $18.30 SUGGESTED QTY:2 Ground; WTR VIEW DETAILS
16.	Nut, ground (3852065) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:4 Obsolete part, ... VIEW DETAILS
17.	Washer, ground stud, flywheel housing (3852070) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part, ... VIEW DETAILS
18.	Bracket, front, port & starboard (3818718) Price: $302.00 SUGGESTED QTY:2 VIEW DETAILS
19.	Flange screw, lift bracket to cylinder head (3855983) Price: $4.60 SUGGESTED QTY:1 Front, upper VIEW DETAILS
19.	Flange screw, flywheel housing to engine (946472) This product has been discontinued Price: $0.00 SUGGESTED QTY:3 WTR VIEW DETAILS
20.	Bolt, front mount (21740808) Price: $31.90 SUGGESTED QTY:2 VIEW DETAILS
21.	Washer, front mount (60114009) Price: $6.70 SUGGESTED QTY:2 Lower VIEW DETAILS
22.	Washer, front mount (60114010) Price: $8.10 SUGGESTED QTY:2 Upper VIEW DETAILS
23.	Nut, bolt, mount bracket (60113763) Price: $5.90 SUGGESTED QTY:6 VIEW DETAILS
24.	Spring washer, bolt, front mount, engine (60113765) Price: $0.80 SUGGESTED QTY:2 VIEW DETAILS
26.	Clamp, starter leads to lift bracket (3852146) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS

21 Items

Grouped product items
Product Name	Qty
Housing $2,070.00
Flange screw, lift bracket to cylinder head $3.80
Flange screw, flywheel housing to engine $2.60
Spring washer $2.20
Washer, ground stud, flywheel hsg $2.50
Washer, ground stud, flywheel hsg $1.00
Rubber cushion $159.00
Hexagon screw, rear mount to transom plate $9.80
Rubber cushion $88.80
Washer, rear mount to transom plate $99,999.00
Hexagon screw, rear mount $6.70
Lock nut, rear mount $6.90
Washer, rear mount to flywheel hsg $31.30
Square nut, rear mount $6.80
Washer, rear mount $9.80
Washer, rear mount $8.70
Stud, flywheel housing to engine $4.80
Stud, flywheel housing to engine $18.30
Nut, ground $99,999.00
Hexagon nut, ground $2.10
Spring washer, damper $10.20
Washer, ground stud, flywheel housing $99,999.00
Bracket, front, port & starboard $302.00
Flange screw, flywheel housing to engine $0.00
Flange screw, lift bracket to cylinder head $4.60
Bolt, front mount $31.90
Washer, front mount $6.70
Washer, front mount $8.10
Nut, bolt, mount bracket $5.90
Spring washer, bolt, front mount, engine $0.80
Clamp $29.20
Attaching clamp, engine cable to cylinder head $6.10
Clamp, starter leads to lift bracket $99,999.00
Attaching clamp $2.90
Clamp $6.20
