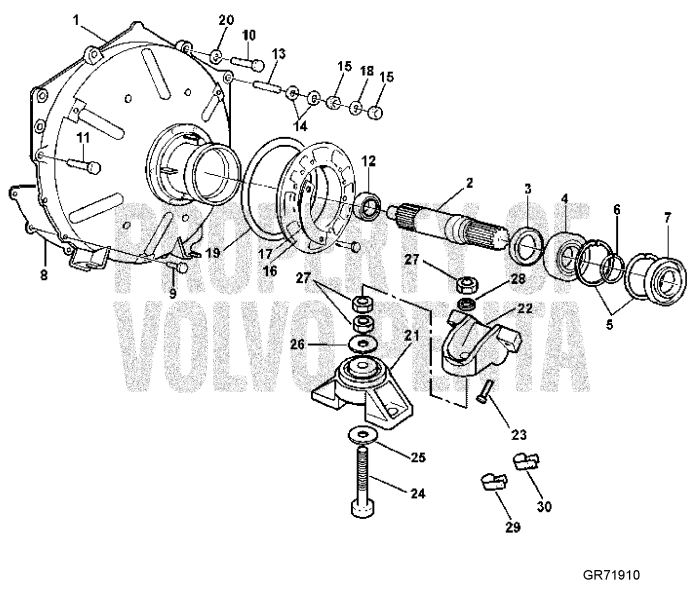

Flywheel Housing and Mounts
|
1. |
Flywheel housing (3856699)
Price: $1,007.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Primary shaft (873013)
Price: $807.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Sealing ring, primary shaft (958859)
Price: $14.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Ball bearing, primary shaft (3851019)
Price: $29.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
5. |
Snap ring, primary shaft (914533)
Price: $7.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
6. |
Snap ring, primary shaft (914462)
Price: $1.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
7. |
Sealing ring, primary shaft (958860)
Price: $48.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Cover plate, flywheel housing (854939)
Price: $100.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Hexagon screw, flywheel cover to housing (969476)
Price: $2.10SUGGESTED QTY:5
VIEW DETAILS
|
|
|
10. |
Flange screw, reservoir and flywheel hsg to engine (3853547)
Price: $5.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Flange screw, flywheel housing to engine (22063732)
Price: $4.10SUGGESTED QTY:3
VIEW DETAILS
|
|
|
12. |
Bushing, primary shaft to crankshaft (3860697)
Price: $35.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Stud, flywheel housing to engine (3850571)
Price: $40.00SUGGESTED QTY:2
Ground
VIEW DETAILS
|
|
|
14. |
Washer, ground stud, flywheel hsg (3852058)
Price: $2.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
14. |
Spring washer, ground stud, flywheel hsg (3856736)
Price: $2.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
15. |
Nut, terminal to ground stud, flywheel hsg (3852065)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
16. |
Clamping ring kit, flywheel housing (191844)
Price: $14.30SUGGESTED QTY:1
Not shown
VIEW DETAILS
|
|
|
17. |
Striker plate, clamp ring (806624)
Price: $28.70SUGGESTED QTY:3
VIEW DETAILS
|
|
|
18. |
Washer, ground stud, flywheel hsg (3852070)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part, ...
VIEW DETAILS
|
|
|
19. |
Rubber ring, clamp ring (804190)
Price: $51.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
20. |
Washer, ground stud, flywheel hsg (3852058)
Price: $2.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
21. |
Rubber cushion, engine front (3853805)
Price: $159.00SUGGESTED QTY:2
Port and starbo...
VIEW DETAILS
|
|
|
22. |
Bracket, front, port and starboard (3818718)
Price: $302.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
23. |
Flange screw, front mount bracket to engine (3855983)
Price: $4.60SUGGESTED QTY:6
VIEW DETAILS
|
|
|
24. |
Bolt, front mount (21740808)
Price: $31.90SUGGESTED QTY:2
Front
VIEW DETAILS
|
|
|
25. |
Spring washer, front mount (60113765)
Price: $0.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
26. |
Washer, front mount (60114010)
Price: $8.10SUGGESTED QTY:2
Upper
VIEW DETAILS
|
|
|
27. |
Nut, bolt, mount bracket (60113763)
Price: $5.90SUGGESTED QTY:6
Front
VIEW DETAILS
|
|
|
28. |
Washer, bolt, front mount, engine (60114009)
Price: $6.70SUGGESTED QTY:2
Lower
VIEW DETAILS
|
|
|
29. |
Clamp, starter leads to stbd bracket (3852146)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part, ...
VIEW DETAILS
|
|
|
30. |
Clamp (3853312)
Price: $6.20SUGGESTED QTY:1
Starboard, Cool...
VIEW DETAILS
|
31 Items
