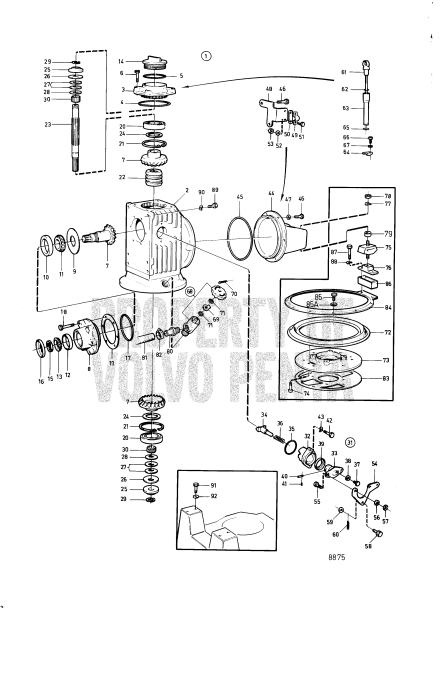

Upper Gear Unit S-Drive Unit 120SB, S120C: 852720
|
1. |
Upper gear (3856830)
SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Housing (3856831)
Price: $8,180.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Cover (873123)
Price: $2,088.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
O-ring (949962)
Price: $16.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
5. |
O-ring (1664473)
Price: $5.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
6. |
Flange screw (946671)
Price: $1.10SUGGESTED QTY:4
VIEW DETAILS
|
|
|
7. |
Gear set (873095)
Price: $3,657.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Bearing box (872710)
Price: $366.00SUGGESTED QTY:1
Bearing unit 85...
VIEW DETAILS
|
|
|
9. |
Turntable (851621)
Price: $12.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Cup (181302)
Price: $61.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Inner ring (181301)
Price: $93.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
Cup (183750)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Cone (183752)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Filler cap (851754)
Price: $65.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
Lock nut (852485)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
16. |
Sealing ring (873094)
Price: $51.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
O-ring (925093)
Price: $2.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Hexagon screw (940101)
Price: $1.70SUGGESTED QTY:6
VIEW DETAILS
|
|
|
19. |
Adjusting washer (851622)
Price: $5.80SUGGESTED QTY:1
TH=0,10mm
VIEW DETAILS
|
|
|
19. |
Adjusting washer (851623)
Price: $10.30SUGGESTED QTY:1
TH=0.15mm
VIEW DETAILS
|
|
|
19. |
Adjusting washer (851624)
Price: $66.80SUGGESTED QTY:1
TH=0.35mm
VIEW DETAILS
|
|
|
20. |
Bearing (851756)
Price: $150.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
21. |
Lock ring (852190)
Price: $15.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
22. |
Sliding sleeve (873098)
Price: $926.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
Shaft (873099)
Price: $1,014.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Shim (852184)
Price: $13.80SUGGESTED QTY:1
TH=0,05mm
VIEW DETAILS
|
|
|
24. |
Shim (84219)
Price: $10.40SUGGESTED QTY:1
TH=0,10mm
VIEW DETAILS
|
|
|
24. |
Shim (949776)
Price: $4.30SUGGESTED QTY:1
TH=0.15mm
VIEW DETAILS
|
|
|
24. |
Shim (84218)
Price: $5.10SUGGESTED QTY:1
TH=0.35mm
VIEW DETAILS
|
|
|
25. |
Lock washer (852079)
Price: $119.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
26. |
Disc spring (852213)
Price: $19.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Disc spring (852080)
Price: $6.30SUGGESTED QTY:6
VIEW DETAILS
|
|
|
28. |
Washer (852311)
Price: $7.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
28. |
Washer (852317)
Price: $11.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
29. |
Lock ring half (851629)
Price: $7.10SUGGESTED QTY:4
VIEW DETAILS
|
|
|
30. |
Needle bearing (851757)
Price: $56.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
31. |
Shift mechanism (851661)
Price: $870.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
32. |
Bearing housing (851662)
Price: $323.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
33. |
Eccentric piston (897816)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Dog (23543582)
Price: $149.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
35. |
O-ring (949659)
Price: $6.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
36. |
Spring (814184)
Price: $1.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
37. |
Hexagon screw (897711)
Price: $27.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
38. |
Shim (897871)
Price: $3.70SUGGESTED QTY:1
TH=0.20mm
VIEW DETAILS
|
|
|
39. |
Sealing ring (853868)
Price: $36.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
40. |
Clevis pin (942871)
Price: $17.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
41. |
Spring pin (951924)
Price: $0.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Hexagon screw (994384)
Price: $3.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
43. |
Spring washer (941907)
Price: $0.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
44. |
Bracket (873149)
Price: $391.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
45. |
O-ring (925262)
Price: $5.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
46. |
Flange screw (945444)
Price: $1.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
47. |
Washer (955894)
Price: $0.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
48. |
Cable attachment (852074)
Price: $78.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
49. |
Bracket (21471054)
Price: $6.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
50. |
Washer (819068)
Price: $4.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
51. |
Hexagon screw (969407)
Price: $1.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
52. |
Washer (940090)
Price: $0.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
53. |
Lock nut (946577)
Price: $1.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
54. |
Intermediate lever (852363)
Price: $21.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
55. |
Hexagon screw (955271)
Price: $0.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
56. |
Toothed washer (955948)
Price: $0.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
57. |
Hexagon nut (955781)
Price: $0.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
58. |
Cube (22336734)
Price: $5.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
59. |
Washer (955892)
Price: $1.00SUGGESTED QTY:4
VIEW DETAILS
|
|
|
60. |
Split pin (17276)
Price: $3.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
61. |
Oil dipstick (852314)
Price: $99,999.00SUGGESTED QTY:1
L=157mm
VIEW DETAILS
|
|
|
62. |
O-ring (925054)
Price: $5.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
63. |
Tube (852228)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
64. |
Cardboard tube (852229)
Price: $12.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
65. |
O-ring (925055)
Price: $0.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
66. |
Cross recessed screw (956063)
Price: $1.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
67. |
Washer, washer (955891)
Price: $0.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
68. |
Faucet (851777)
Price: $161.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
69. |
Lock washer (851783)
Price: $15.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
70. |
Split pin (949791)
Price: $4.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
71. |
O-ring (955989)
Price: $2.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
72. |
Rubber bellows (21389074)
Price: $414.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
73. |
Intermediate section (852719)
Price: $953.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
74. |
Hex. socket screw (946541)
Price: $9.50SUGGESTED QTY:3
VIEW DETAILS
|
|
|
75. |
Rubber element (840845)
Price: $296.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
76. |
Bracket (850338)
Price: $151.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
77. |
Spring washer (941908)
Price: $0.40SUGGESTED QTY:10
VIEW DETAILS
|
|
|
78. |
Hexagon nut (971071)
Price: $2.10SUGGESTED QTY:3
VIEW DETAILS
|
|
|
79. |
Bushing (852554)
Price: $23.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
80. |
Nipple (3580792)
Price: $11.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
81. |
Hose (952969)
Price: $26.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
82. |
Hose clamp (961665)
Price: $5.30SUGGESTED QTY:4
VIEW DETAILS
|
|
|
83. |
Gasket (3856834)
Price: $13.80SUGGESTED QTY:1
Included in com...
VIEW DETAILS
|
|
|
84. |
Tensioning ring (22222853)
Price: $558.00SUGGESTED QTY:1
Included in com...
VIEW DETAILS
|
|
|
85. |
Hexagon screw (946730)
Price: $6.30SUGGESTED QTY:10
Included in com...
VIEW DETAILS
|
|
|
85A. |
Washer (941670)
Price: $0.40SUGGESTED QTY:10
Included in com...
VIEW DETAILS
|
|
|
86. |
Spacer (852697)
Price: $131.00SUGGESTED QTY:1
Included in com...
VIEW DETAILS
|
|
|
87. |
Hexagon screw (963590)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part, ...
VIEW DETAILS
|
|
|
88. |
Washer (853095)
Price: $6.40SUGGESTED QTY:2
Included in com...
VIEW DETAILS
|
|
|
89. |
Hexagon screw (965185)
Price: $2.00SUGGESTED QTY:6
(955320)
VIEW DETAILS
|
|
|
90. |
Spring washer (941908)
Price: $0.40SUGGESTED QTY:10
VIEW DETAILS
|
|
|
91. |
Hexagon screw (963580)
Price: $9.80SUGGESTED QTY:4
Included in com...
VIEW DETAILS
|
|
|
92. |
Washer (976945)
Price: $1.10SUGGESTED QTY:1
For 959239
VIEW DETAILS
|
99 Items
