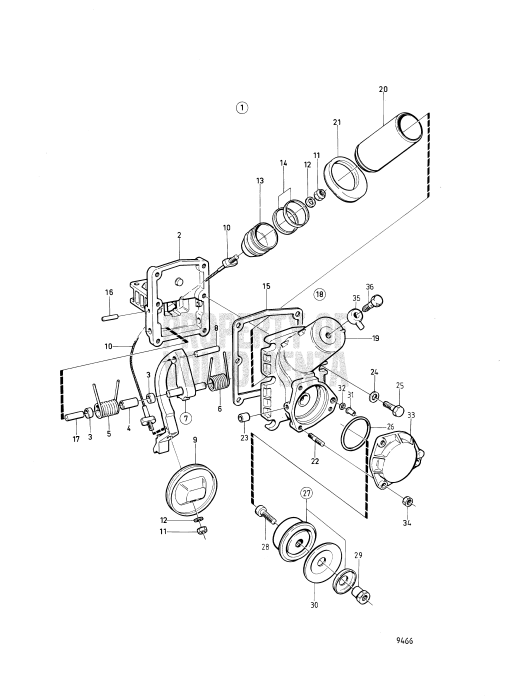

By-pass Valve, Components: 863585


1.	Valve (863585) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Shutter housing (848090) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Guide (465033) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 OBSOLETE PART VIEW DETAILS
4.	Bushing (3863175) Price: $4.30 SUGGESTED QTY:2 VIEW DETAILS
5.	Torsion spring (863586) Price: $15.40 SUGGESTED QTY:1 Left VIEW DETAILS
6.	Torsion spring (863587) Price: $5.90 SUGGESTED QTY:1 Right VIEW DETAILS
7.	Arm (863776) Price: $307.46 SUGGESTED QTY:1 VIEW DETAILS
8.	Spring pin (951979) Price: $1.40 SUGGESTED QTY:1 VIEW DETAILS
9.	Shutter (471676) Price: $34.20 SUGGESTED QTY:1 VIEW DETAILS
10.	Cable (477312) Price: $33.40 SUGGESTED QTY:1 VIEW DETAILS
11.	Lock nut (990949) Price: $1.60 SUGGESTED QTY:2 VIEW DETAILS
12.	Washer (955892) Price: $1.00 SUGGESTED QTY:4 VIEW DETAILS
13.	Piston (3855743) Obsolete no longer made Price: $99,999.00 SUGGESTED QTY:1 O.S=0.50mm VIEW DETAILS
14.	Support ring (471681) Price: $35.60 SUGGESTED QTY:2 VIEW DETAILS
15.	Gasket (471684) Price: $12.10 SUGGESTED QTY:1 VIEW DETAILS
16.	Pin (950545) Price: $1.50 SUGGESTED QTY:2 VIEW DETAILS
17.	Pin (471668) Price: $15.70 SUGGESTED QTY:2 VIEW DETAILS
18.	Housing (3807905) Price: $2,070.00 SUGGESTED QTY:1 VIEW DETAILS
21.	Retainer (3826131) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
22.	Stud (953351) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:3 L = 70 MM VIEW DETAILS
23.	Tube (3860402) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
25.	Flange screw (946671) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
31.	Nozzle (471687) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
32.	O-ring (949187) Price: $3.30 SUGGESTED QTY:1 VIEW DETAILS
33.	Cover (244678) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
34.	Flange nut (945407) Price: $0.60 SUGGESTED QTY:1 VIEW DETAILS
35.	Banjo nipple (74039) Price: $17.00 SUGGESTED QTY:1 VIEW DETAILS
36.	Hollow screw (969299) Price: $14.20 SUGGESTED QTY:1 VIEW DETAILS

28 Items

Grouped product items
Product Name	Qty
Valve $99,999.00
Shutter housing $99,999.00
Guide $99,999.00
Bushing $4.30
Torsion spring $15.40
Torsion spring $5.90
Arm $307.46
Spring pin $1.40
Shutter $34.20
Cable $33.40
Lock nut $1.60
Washer $1.00
Piston $99,999.00
Support ring $35.60
Gasket $12.10
Pin $1.50
Pin $15.70
Housing $2,070.00
Retainer $99,999.00
Stud $99,999.00
Tube $99,999.00
Flange screw $1.10
Nozzle $99,999.00
O-ring $3.30
Cover $99,999.00
Flange nut $0.60
Banjo nipple $17.00
Hollow screw $14.20
