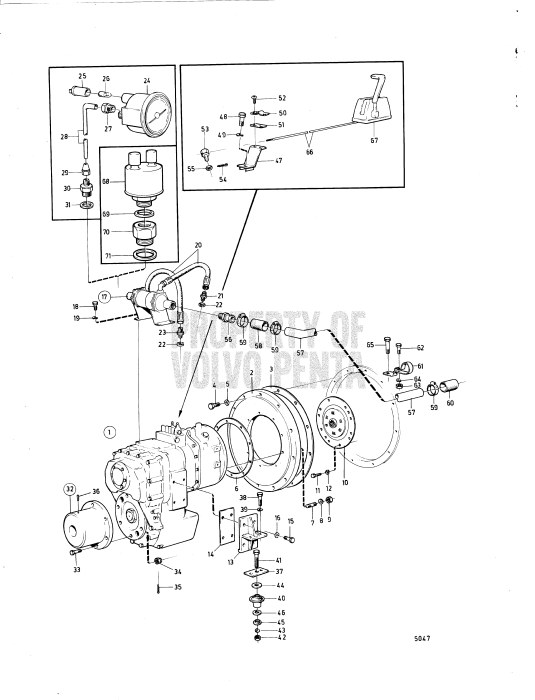

Reverse Gear SCG MRF 700 MK4 with Installation Components: B


2.	Intermediate section (837450) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
3.	Gasket (862661) Price: $64.70 SUGGESTED QTY:1 VIEW DETAILS
6.	Gasket (815247) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
7.	Stud (953261) Price: $6.20 SUGGESTED QTY:4 VIEW DETAILS
8.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
10.	Absorber (837451) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
11.	Hex. socket screw (956613) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part VIEW DETAILS
13.	Bracket (824367) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Early type stee... VIEW DETAILS
14.	Gasket (817654) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 For MRF 700 LR ... VIEW DETAILS
15.	Hexagon screw (955590) Price: $5.30 SUGGESTED QTY:8 VIEW DETAILS
16.	Spring washer (941912) Price: $0.90 SUGGESTED QTY:12 VIEW DETAILS
17.	Oil cooler (837412) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
18.	Hexagon screw (940133) Price: $5.20 SUGGESTED QTY:2 L=16mm VIEW DETAILS
19.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
20.	Hose (837409) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
21.	Fitting (942363) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
22.	Gasket (18821) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
23.	Nipple (942418) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
24.	Oil pressure gauge (827236) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
25.	Lamp socket (804616) Price: $30.00 SUGGESTED QTY:1 VIEW DETAILS
26.	Bulb (182059) Price: $4.80 SUGGESTED QTY:4 VIEW DETAILS
26.	Bulb (19923) Price: $6.00 SUGGESTED QTY:4 VIEW DETAILS
27.	Fitting screw (87698) Price: $15.90 SUGGESTED QTY:1 VIEW DETAILS
28.	Tube (954303) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 L=5000mm, Obsol... VIEW DETAILS
29.	Fitting nut (954320) Price: $28.30 SUGGESTED QTY:1 VIEW DETAILS
30.	Nipple (837406) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
32.	Clutch flange (820934) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 For MRF 700 LR ... VIEW DETAILS
33.	Hexagon screw (955739) Price: $29.40 SUGGESTED QTY:6 For MRF 700 LR ... VIEW DETAILS
34.	Castle nut (955886) Price: $7.80 SUGGESTED QTY:6 For MRF 700 LR ... VIEW DETAILS
35.	Split pin (907861) Price: $1.00 SUGGESTED QTY:8 VIEW DETAILS
36.	Pin (907662) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 For MRF 700 LR ... VIEW DETAILS
39.	Spring washer (941912) Price: $0.90 SUGGESTED QTY:12 VIEW DETAILS
43.	Spring washer (941912) Price: $0.90 SUGGESTED QTY:12 VIEW DETAILS
45.	Stop washer (862066) Price: $116.00 SUGGESTED QTY:4 VIEW DETAILS
46.	Rubber washer (862066) Price: $116.00 SUGGESTED QTY:4 VIEW DETAILS
47.	Bracket (837405) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
48.	Hexagon screw (940133) Price: $5.20 SUGGESTED QTY:2 L=16mm VIEW DETAILS
49.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
50.	Bracket (21471054) Price: $6.80 SUGGESTED QTY:1 VIEW DETAILS
51.	Washer (819068) Price: $4.60 SUGGESTED QTY:1 VIEW DETAILS
52.	Cross recessed screw (950021) Price: $3.00 SUGGESTED QTY:2 VIEW DETAILS
53.	Cube (814082) Price: $39.80 SUGGESTED QTY:1 VIEW DETAILS
54.	Split pin (17276) Price: $3.80 SUGGESTED QTY:1 VIEW DETAILS
55.	Washer (940191) Price: $8.70 SUGGESTED QTY:1 VIEW DETAILS
57.	Coolant pipe (837416) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
58.	Rubber hose, rubber hose (952980) Price: $102.00 SUGGESTED QTY:1 L=110mm VIEW DETAILS
59.	Hose clamp (994565) Price: $4.80 SUGGESTED QTY:24 VIEW DETAILS
61.	Clamp (824433) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
64.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS
65.	Hexagon screw (955588) Price: $4.60 SUGGESTED QTY:2 VIEW DETAILS
66.	Control cable THIS PRODUCT HAS BEEN DISCONTINUED
68.	Oil pressure sensor, reverse gear (866840) Price: $357.00 SUGGESTED QTY:1 See group 4A VIEW DETAILS
70.	Nipple (842714) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS

53 Items

Grouped product items
Product Name	Qty
Intermediate section $99,999.00
Gasket $64.70
Hexagon screw $3.80
Spring washer $0.50
Gasket $99,999.00
Stud $6.20
Hexagon nut $0.60
Absorber $99,999.00
Hex. socket screw $99,999.00
Spring washer $1.10
Bracket $99,999.00
Gasket $99,999.00
Hexagon screw $5.30
Oil cooler $99,999.00
Hose $99,999.00
Fitting $99,999.00
Gasket $99,999.00
Nipple $99,999.00
Oil pressure gauge $99,999.00
Lamp socket $30.00
Bulb $6.00
Bulb $4.80
Fitting screw $15.90
Tube $99,999.00
Fitting nut $28.30
Nipple $99,999.00
Clutch flange $99,999.00
Hexagon screw $29.40
Castle nut $7.80
Split pin $1.00
Pin $99,999.00
Hexagon screw $4.60
Rubber cushion $566.00
Hexagon screw $51.00
Hexagon nut $7.20
Spring washer $0.90
Washer $136.00
Stop washer $116.00
Rubber washer $116.00
Bracket $99,999.00
Hexagon screw $5.20
Spring washer $0.30
Bracket $6.80
Washer $4.60
Cross recessed screw $3.00
Cube $39.80
Split pin $3.80
Washer $8.70
Coolant pipe $99,999.00
Rubber hose, rubber hose $102.00
Hose clamp $4.80
Clamp $99,999.00
Hexagon screw $1.00
Hexagon nut $1.60
Spring washer $0.70
Hexagon screw $4.60
Oil pressure sensor, reverse gear $357.00
Gasket $9.90
Nipple $99,999.00
Gasket $4.50
