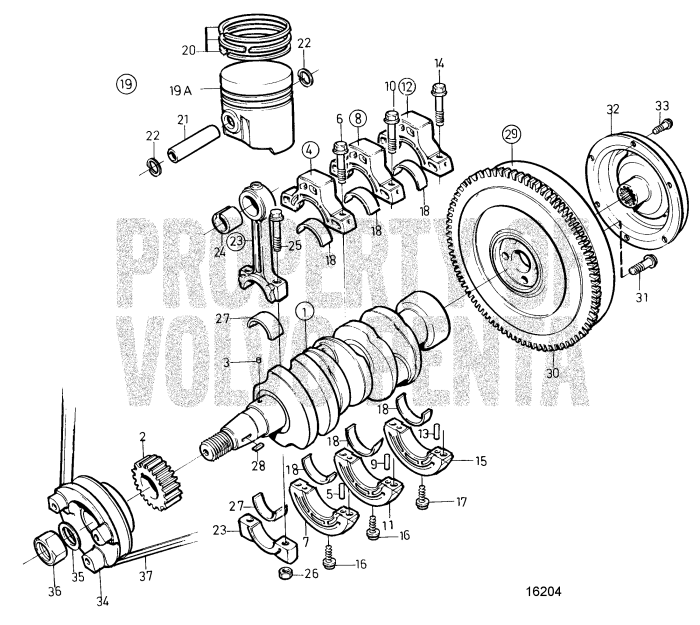

Crank Mechanism


1.	Crankshaft (3580253) Price: $3,042.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Gear (861933) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
3.	Key (861934) Price: $9.10 SUGGESTED QTY:1 VIEW DETAILS
4.	Retainer (3826131) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
5.	Pin (244983) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
6.	Screw (947760) Price: $1.40 SUGGESTED QTY:2 VIEW DETAILS
7.	Retainer (3826131) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
8.	Retainer (3826131) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
9.	Pin (244983) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
10.	Screw (947760) Price: $1.40 SUGGESTED QTY:2 VIEW DETAILS
11.	Retainer (3826131) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
12.	Retainer (3826131) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
13.	Pin (244983) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
14.	Screw (947760) Price: $1.40 SUGGESTED QTY:2 VIEW DETAILS
15.	Retainer (3826131) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
16.	Screw (861952) Price: $4.40 SUGGESTED QTY:1 VIEW DETAILS
17.	Screw (861953) Price: $6.80 SUGGESTED QTY:2 VIEW DETAILS
18.	Main bearing kit (876666) Price: $85.70 SUGGESTED QTY:1 Std D VIEW DETAILS
18.	Main bearing kit (876667) Price: $756.29 SUGGESTED QTY:1 U.S=0,25mm VIEW DETAILS
18.	Main bearing kit (876668) Price: $669.00 SUGGESTED QTY:1 U.S=0.50mm VIEW DETAILS
19.	Piston kit (876692) Price: $456.00 SUGGESTED QTY:2 Std D VIEW DETAILS
19.	Piston kit (876696) Price: $560.00 SUGGESTED QTY:2 U.S=0,25mm VIEW DETAILS
19.	Piston kit (876814) Price: $538.00 SUGGESTED QTY:2 U.S=0,50mm VIEW DETAILS
19A.	Piston kit (3580340) Price: $464.00 SUGGESTED QTY:3 Std D VIEW DETAILS
19.	Piston kit (3580340) Price: $464.00 SUGGESTED QTY:3 Std D VIEW DETAILS
20.	Piston ring kit (861954) Price: $223.00 SUGGESTED QTY:2 Std D VIEW DETAILS
20.	Piston ring kit (861955) Price: $245.00 SUGGESTED QTY:2 O.S=0,25mm VIEW DETAILS
20.	Piston ring kit (861956) Price: $319.00 SUGGESTED QTY:2 O.S=0.50mm VIEW DETAILS
21.	Piston pin (861960) Price: $26.10 SUGGESTED QTY:2 VIEW DETAILS
22.	Lock ring (861961) Price: $4.40 SUGGESTED QTY:4 VIEW DETAILS
23.	Connecting rod (861962) Price: $215.00 SUGGESTED QTY:2 VIEW DETAILS
24.	Bushing (861963) Price: $96.00 SUGGESTED QTY:2 VIEW DETAILS
25.	Screw (861964) Price: $12.60 SUGGESTED QTY:4 VIEW DETAILS
26.	Nut (861965) Price: $9.10 SUGGESTED QTY:4 VIEW DETAILS
27.	Big-end bearing kit (876681) Price: $365.44 SUGGESTED QTY:1 U.S=0,50mm VIEW DETAILS
27.	Big-end bearing kit (876672) Price: $92.60 SUGGESTED QTY:1 Std D VIEW DETAILS
27.	Big-end bearing kit (876680) Price: $510.00 SUGGESTED QTY:1 U.S=0,25mm VIEW DETAILS
28.	Woodruff key (861969) Price: $4.50 SUGGESTED QTY:1 VIEW DETAILS
29.	Flywheel (861972) Price: $512.51 SUGGESTED QTY:1 VIEW DETAILS
30.	Gear ring (861973) Price: $290.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Screw (861974) Price: $10.80 SUGGESTED QTY:4 VIEW DETAILS
32.	Vibration damper (872809) Price: $1,293.00 SUGGESTED QTY:1 Use together wi... VIEW DETAILS
33.	Screw (861975) Price: $3.30 SUGGESTED QTY:6 VIEW DETAILS
34.	Pulley (3580255) Price: $334.00 SUGGESTED QTY:1 VIEW DETAILS
35.	Washer (861978) Price: $4.40 SUGGESTED QTY:1 VIEW DETAILS
36.	Nut (861977) Price: $12.60 SUGGESTED QTY:1 VIEW DETAILS
37.	Alternator: A (198) Price: $62.00 SUGGESTED QTY:1 MD2010A, MD2020... VIEW DETAILS

47 Items

Grouped product items
Product Name	Qty
Crankshaft $3,042.00
Gear $99,999.00
Key $9.10
Pin $99,999.00
Screw $1.40
Retainer $99,999.00
Screw $4.40
Screw $6.80
Main bearing kit $756.29
Main bearing kit $669.00
Main bearing kit $85.70
Piston kit $464.00
Piston kit $560.00
Piston kit $538.00
Piston kit $456.00
Piston ring kit $223.00
Piston ring kit $245.00
Piston ring kit $319.00
Piston pin $26.10
Lock ring $4.40
Connecting rod $215.00
Bushing $96.00
Screw $12.60
Nut $9.10
Big-end bearing kit $510.00
Big-end bearing kit $365.44
Big-end bearing kit $92.60
Woodruff key $4.50
Flywheel $512.51
Gear ring $290.00
Screw $10.80
Vibration damper $1,293.00
Screw $3.30
Pulley $334.00
Washer $4.40
Nut $12.60
Alternator: A Starting at $0.30
