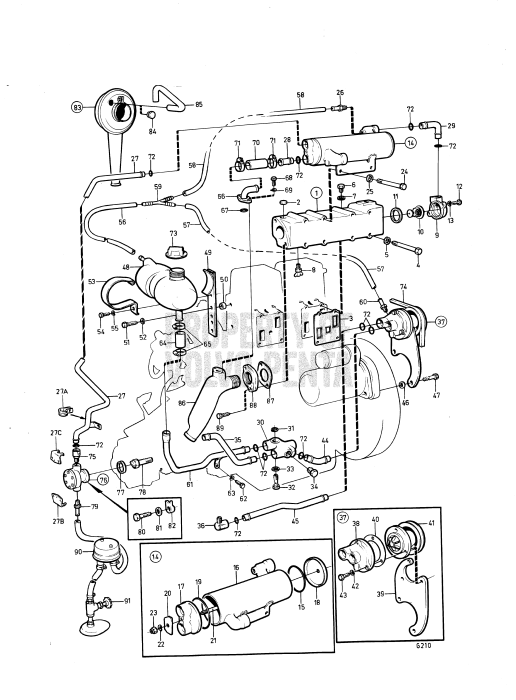

Cooling System, Induction- and Exh Manifold Spec 867577, -677, -678: B


2.	Expansion plug (477024) Price: $18.20 SUGGESTED QTY:3 VIEW DETAILS
3.	Gasket (859145) Price: $35.30 SUGGESTED QTY:2 VIEW DETAILS
4.	Hexagon screw (965183) Price: $1.60 SUGGESTED QTY:8 VIEW DETAILS
10.	Thermostat (838501) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 76°C, Obsolete... VIEW DETAILS
12.	Hexagon screw (947818) Price: $0.50 SUGGESTED QTY:2 VIEW DETAILS
13.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:12 VIEW DETAILS
14.	Heat exchanger (829911) Price: $1,725.00 SUGGESTED QTY:1 VIEW DETAILS
16.	Housing (3807905) Price: $2,070.00 SUGGESTED QTY:1 VIEW DETAILS
17.	End plate (829987) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
18.	End plate (829988) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
20.	Bracket (829990) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
25.	Washer (976944) Price: $0.10 SUGGESTED QTY:4 VIEW DETAILS
27.	Coolant pipe (840510) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
29.	Coolant pipe (829932) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Coupling piece (829905) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
32.	Hollow screw (21449352) Price: $24.40 SUGGESTED QTY:1 VIEW DETAILS
38.	Pump housing (829847) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
39.	Bracket (829899) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
40.	Gasket THIS PRODUCT HAS BEEN DISCONTINUED
41.	Circulation pump (3812237) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
44.	Coolant pipe (829935) Price: $33.03 SUGGESTED QTY:1 VIEW DETAILS
45.	Coolant pipe (829936) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
47.	Hexagon screw (990811) Price: $2.00 SUGGESTED QTY:2 L=55mm VIEW DETAILS
48.	Expansion tank (3547466) Price: $102.00 SUGGESTED QTY:1 VIEW DETAILS
49.	Bracket (840172) Price: $251.60 SUGGESTED QTY:1 VIEW DETAILS
52.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:12 VIEW DETAILS
60.	Hose coupling (858185) Price: $48.50 SUGGESTED QTY:1 VIEW DETAILS
63.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:12 VIEW DETAILS
65.	Hose clamp (992082) Price: $12.90 SUGGESTED QTY:6 VIEW DETAILS
71.	Hose clamp (994559) Price: $3.60 SUGGESTED QTY:2 VIEW DETAILS
74.	V-belt (966942) Price: $51.20 SUGGESTED QTY:1 L=1550mm VIEW DETAILS
76.	Water pump (858065) Price: $815.00 SUGGESTED QTY:1 VIEW DETAILS
78.	Screw (807031) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 See group 2B, O... VIEW DETAILS
80.	Hexagon screw (994384) Price: $3.20 SUGGESTED QTY:4 VIEW DETAILS
81.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:12 VIEW DETAILS
83.	Air filter (833414) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
84.	Plug (833546) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
85.	Rubber hose (833468) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
87.	Gasket (859015) Price: $18.70 SUGGESTED QTY:1 VIEW DETAILS
89.	Hexagon screw (970949) Price: $3.30 SUGGESTED QTY:4 MD11C/HD-BT. VIEW DETAILS
90.	Strainer (831733) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 See group 9 VIEW DETAILS
91.	Cooling water inlet (1140164) Price: $236.53 SUGGESTED QTY:1 See group 9 VIEW DETAILS

42 Items

Grouped product items
Product Name	Qty
Exhaust pipe $2,226.00
Expansion plug $18.20
Gasket $35.30
Hexagon screw $1.60
Washer $0.20
Shut-off cock $60.90
Thermostat housing $184.00
Thermostat $99,999.00
Sealing ring $8.00
Hexagon screw $0.50
Heat exchanger $1,725.00
Gasket $17.20
Housing $2,070.00
End plate $99,999.00
End plate $99,999.00
Gasket $15.60
Bracket $99,999.00
Bar $105.00
Hexagon screw $3.60
Washer $0.10
Anchorage $12.30
Clamp $1.80
Coolant pipe $99,999.00
Anchorage $13.40
Connection pipe $57.20
Coolant pipe $99,999.00
Coupling piece $99,999.00
Spacer ring $52.60
Hollow screw $24.40
Gasket $1.00
Plug $27.00
Coolant pipe $111.00
Insert nipple $96.00
Pump housing $99,999.00
Bracket $99,999.00
Circulation pump $99,999.00
Hexagon screw $1.60
Coolant pipe $33.03
Coolant pipe $99,999.00
Washer $1.10
Hexagon screw $2.00
Expansion tank $102.00
Bracket $251.60
Spacer sleeve $7.40
Hexagon screw $1.50
Clamp $95.30
Cross recessed screw $1.00
Hose $10.70
Hose coupling $8.90
Hose coupling $48.50
Coolant pipe $452.00
Spring washer $1.10
Rubber hose $39.10
Hose clamp $12.90
Hose connection $208.00
Sealing ring $11.00
Hexagon screw $0.70
Spring washer $0.40
Hose $26.50
Hose clamp $3.60
Sealing ring $6.70
Sealing ring $9.90
Pressure cap $81.60
V-belt $51.20
Water pump $815.00
O-ring $2.90
Screw $99,999.00
Hexagon screw $3.20
Spring washer $0.70
Clamp $74.90
Air filter $99,999.00
Plug $99,999.00
Rubber hose $99,999.00
Exhaust riser $445.00
Gasket $18.70
Exhaust pipe flange $347.00
Hexagon screw $3.30
Strainer $99,999.00
Cooling water inlet $236.53
