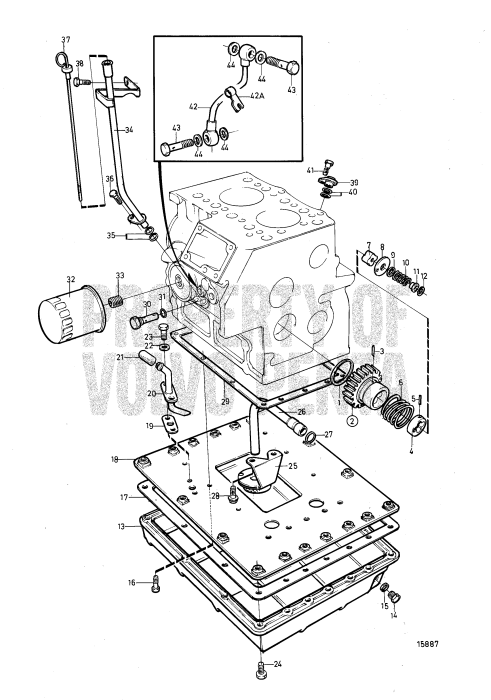

Lubricating System


1.	Thrust washer (861986) Price: $8.10 SUGGESTED QTY:1 VIEW DETAILS
2.	Gear (861987) This product has been discontinued Price: $275.63 SUGGESTED QTY:1 Replaced by 215... VIEW DETAILS
2.	Oil pump (21541017) Price: $742.00 SUGGESTED QTY:1 VIEW DETAILS
6.	Spring (861988) Price: $6.90 SUGGESTED QTY:1 VIEW DETAILS
7.	Rotor (861989) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
7.	Oil pump (21541017) Price: $742.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Cardboard tube (861527) Price: $55.40 SUGGESTED QTY:1 VIEW DETAILS
9.	Shim (861528) Price: $8.90 SUGGESTED QTY:1 TH=0.10mm VIEW DETAILS
9.	Shim (861529) Price: $5.60 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
9.	Shim (861530) Price: $7.80 SUGGESTED QTY:1 TH=0,20mm VIEW DETAILS
9.	Shim (861531) Price: $7.80 SUGGESTED QTY:1 TH=0,50mm VIEW DETAILS
10.	Spring (861532) Price: $4.50 SUGGESTED QTY:1 VIEW DETAILS
11.	Sleeve (861533) Price: $14.80 SUGGESTED QTY:1 VIEW DETAILS
12.	Lock ring (861534) Price: $4.50 SUGGESTED QTY:1 VIEW DETAILS
13.	Sump (21281968) Price: $269.00 SUGGESTED QTY:1 VIEW DETAILS
14.	Screw (861834) Price: $10.10 SUGGESTED QTY:1 VIEW DETAILS
15.	Washer (11994) Price: $1.30 SUGGESTED QTY:1 VIEW DETAILS
16.	Screw (984724) Price: $0.90 SUGGESTED QTY:4 VIEW DETAILS
17.	Gasket (861836) Price: $64.00 SUGGESTED QTY:1 VIEW DETAILS
19.	Gasket (861838) Price: $9.10 SUGGESTED QTY:1 VIEW DETAILS
20.	Tube (861839) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
21.	Rubber cap (1276516) Price: $2.20 SUGGESTED QTY:1 VIEW DETAILS
22.	Gasket (11991) Price: $0.60 SUGGESTED QTY:2 (861841) VIEW DETAILS
23.	Screw (955271) Price: $0.80 SUGGESTED QTY:2 VIEW DETAILS
24.	Screw (955271) Price: $0.80 SUGGESTED QTY:2 VIEW DETAILS
25.	Oil filter (861999) Price: $29.80 SUGGESTED QTY:1 VIEW DETAILS
26.	Suction pipe (861998) Price: $26.50 SUGGESTED QTY:1 VIEW DETAILS
27.	O-ring (861997) Price: $10.80 SUGGESTED QTY:1 VIEW DETAILS
28.	Screw (861526) Price: $7.70 SUGGESTED QTY:1 VIEW DETAILS
29.	Gasket (861822) Price: $37.30 SUGGESTED QTY:1 VIEW DETAILS
30.	Reduction valve (3583580) Price: $104.00 SUGGESTED QTY:1 VIEW DETAILS
31.	O-ring (861830) Price: $9.10 SUGGESTED QTY:1 VIEW DETAILS
32.	Oil filter (861473) Price: $31.10 SUGGESTED QTY:1 VIEW DETAILS
33.	Bolt (861825) Price: $11.40 SUGGESTED QTY:1 VIEW DETAILS
34.	Tube (861850) Price: $209.00 SUGGESTED QTY:1 VIEW DETAILS
35.	O-ring (861851) Price: $23.10 SUGGESTED QTY:2 VIEW DETAILS
36.	Screw (984724) Price: $0.90 SUGGESTED QTY:2 VIEW DETAILS
37.	Oil dipstick (861853) Price: $109.00 SUGGESTED QTY:1 VIEW DETAILS
38.	Screw (947107) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
39.	Plug (15134976) Price: $35.10 SUGGESTED QTY:1 not sold separa... VIEW DETAILS
40.	O-ring (861851) Price: $23.10 SUGGESTED QTY:2 VIEW DETAILS
41.	Screw (984724) Price: $0.90 SUGGESTED QTY:2 VIEW DETAILS
42A.	Clamp (982643) This product has been discontinued Price: $0.82 SUGGESTED QTY:1 VIEW DETAILS
42.	Oil pipe (3581787) Price: $97.70 SUGGESTED QTY:1 VIEW DETAILS
43.	Hollow screw (861872) Price: $10.30 SUGGESTED QTY:2 VIEW DETAILS
44.	Gasket (947620) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS

46 Items

Grouped product items
Product Name	Qty
Thrust washer $8.10
Gear $275.63
Spring $6.90
Rotor $99,999.00
Oil pump $742.00
Cardboard tube $55.40
Shim $5.60
Shim $7.80
Shim $8.90
Shim $7.80
Spring $4.50
Sleeve $14.80
Lock ring $4.50
Sump $269.00
Screw $10.10
Washer $1.30
Screw $0.90
Gasket $64.00
Gasket $9.10
Tube $99,999.00
Rubber cap $2.20
Gasket $0.60
Screw $0.80
Oil filter $29.80
Suction pipe $26.50
O-ring $10.80
Screw $7.70
Gasket $37.30
Reduction valve $104.00
O-ring $9.10
Oil filter $31.10
Bolt $11.40
Tube $209.00
Oil dipstick $109.00
Screw $1.00
Plug $35.10
O-ring $23.10
Screw $0.90
Oil pipe $97.70
Clamp $0.82
Hollow screw $10.30
Gasket $0.70
