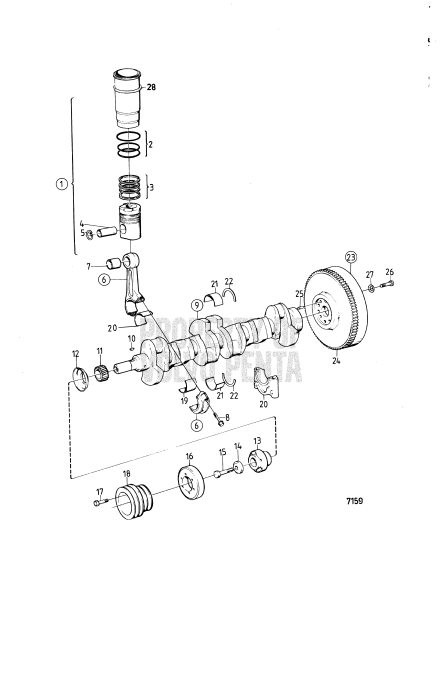

Crankshaft and Related Parts
|
1. |
Cylinder liner kit (275389)
Price: $435.16SUGGESTED QTY:6
VIEW DETAILS
|
|
|
2. |
Sealing ring kit (271162)
Price: $147.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
3. |
Piston ring kit (270713)
Price: $144.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
4. |
Piston pin (3978023)
Price: $92.60SUGGESTED QTY:6
Std D
VIEW DETAILS
|
|
|
4. |
Pin (420259)
Price: $99,999.00SUGGESTED QTY:6
0,05mm o.s, Obs...
VIEW DETAILS
|
|
|
4. |
Piston pin (420261)
Price: $99,999.00SUGGESTED QTY:6
0,20mm o.s, Obs...
VIEW DETAILS
|
|
|
5. |
Snap ring (914523)
Price: $2.80SUGGESTED QTY:12
VIEW DETAILS
|
|
|
6. |
Connecting rod (3092237)
Price: $1,908.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
7. |
Bearing (465816)
Price: $70.70SUGGESTED QTY:6
VIEW DETAILS
|
|
|
8. |
Hexagon screw (420126)
Price: $27.70SUGGESTED QTY:12
VIEW DETAILS
|
|
|
9. |
Crankshaft (24424614)
Price: $8,387.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
Oil deflector (420172)
SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
13. |
Hub (836304)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Washer (420124)
Price: $34.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
Screw (1545479)
Price: $23.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
Vibration damper (421414)
Price: $1,240.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Hexagon screw (955551)
Price: $6.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
18. |
Pulley (842258)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
Big-end bearing kit (270081)
Price: $49.90SUGGESTED QTY:6
Std D
VIEW DETAILS
|
|
|
19. |
Big-end bearing kit (270082)
Price: $22.00SUGGESTED QTY:6
0,25mm u.s
VIEW DETAILS
|
|
|
19. |
Big-end bearing kit (270083)
Price: $54.70SUGGESTED QTY:6
0,50mm u.s
VIEW DETAILS
|
|
|
19. |
Big-end bearing kit (270084)
Price: $43.00SUGGESTED QTY:6
0,75mm u.s
VIEW DETAILS
|
|
|
19. |
Big-end bearing kit (270085)
Price: $99,999.00SUGGESTED QTY:6
1,00mm u.s, Obs...
VIEW DETAILS
|
|
|
20. |
Cylinder Block (16284)
SUGGESTED QTY:1
TAMD60C
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271230)
Price: $59.90SUGGESTED QTY:7
Std D
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271231)
Price: $59.90SUGGESTED QTY:7
0,25mm u.s
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271232)
Price: $59.90SUGGESTED QTY:7
0,50mm u.s
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271233)
Price: $99,999.00SUGGESTED QTY:7
0,75mm u.s, Obs...
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271234)
Price: $59.90SUGGESTED QTY:7
1,00mm u.s
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271235)
Price: $30.30SUGGESTED QTY:7
1,25mm u.s
VIEW DETAILS
|
|
|
22. |
Thrust washer kit (276752)
Price: $30.80SUGGESTED QTY:1
0,1mm o.s
VIEW DETAILS
|
|
|
22. |
Thrust washer kit (276753)
Price: $56.50SUGGESTED QTY:1
0,2mm o.s
VIEW DETAILS
|
|
|
22. |
Thrust washer kit (276780)
Price: $99,999.00SUGGESTED QTY:1
0,3mm o.s, Obso...
VIEW DETAILS
|
|
|
22. |
Thrust washer kit (276751)
Price: $68.80SUGGESTED QTY:1
Std D
VIEW DETAILS
|
|
|
23. |
Flywheel (848350)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Gear ring (420314)
Price: $675.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
25. |
Pin (950677)
Price: $8.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
26. |
Hexagon screw (944710)
Price: $9.30SUGGESTED QTY:6
VIEW DETAILS
|
|
|
27. |
Washer (467773)
Price: $1.30SUGGESTED QTY:6
VIEW DETAILS
|
|
|
28. |
Adjusting washer (465394)
Price: $16.50SUGGESTED QTY:1
TH=0.20mm
VIEW DETAILS
|
|
|
28. |
Adjusting washer (465395)
Price: $16.50SUGGESTED QTY:1
TH=0.30mm
VIEW DETAILS
|
|
|
28. |
Adjusting washer (465396)
Price: $16.60SUGGESTED QTY:1
TH=0.50mm
VIEW DETAILS
|
42 Items
