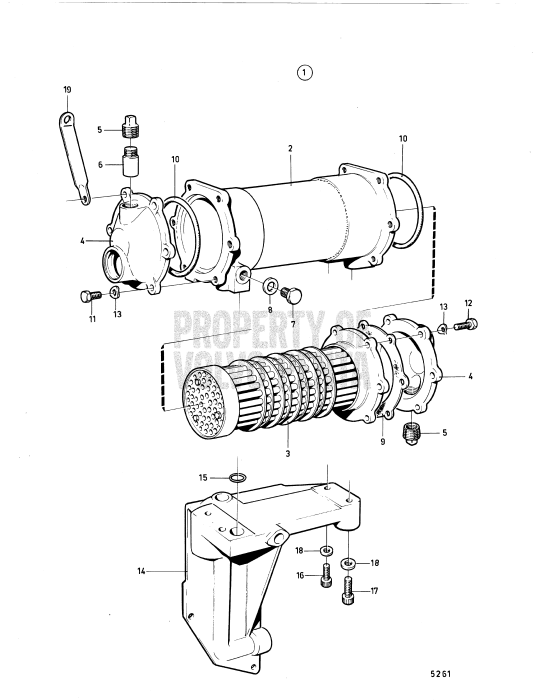

Oil Cooler with Installation Components
|
1. |
Oil cooler (3832938)
Price: $3,179.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Housing (3832934)
Price: $1,908.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Insert (3825938)
Price: $2,629.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
End cover (842490)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
5. |
Plug (838928)
Price: $24.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
6. |
Anode (838929)
Price: $15.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
7. |
Plug (914390)
Price: $20.80SUGGESTED QTY:5
VIEW DETAILS
|
|
|
8. |
Gasket (907133)
Price: $2.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Gasket (3883338)
Price: $28.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Sealing ring (806154)
Price: $10.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
11. |
Hexagon screw (955513)
Price: $1.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
12. |
Hexagon screw (955514)
Price: $1.10SUGGESTED QTY:6
VIEW DETAILS
|
|
|
13. |
Spring washer (941906)
Price: $0.40SUGGESTED QTY:5
VIEW DETAILS
|
|
|
14. |
Bracket (820516)
Price: $99,999.00SUGGESTED QTY:1
See group 2B, O...
VIEW DETAILS
|
|
|
15. |
O-ring (955987)
Price: $1.70SUGGESTED QTY:1
See group 2B
VIEW DETAILS
|
|
|
16. |
Hex. socket screw (956571)
Price: $3.20SUGGESTED QTY:3
L=32mm see grou...
VIEW DETAILS
|
|
|
17. |
Hex. socket screw (956572)
Price: $2.70SUGGESTED QTY:1
L=38mm see grou...
VIEW DETAILS
|
|
|
18. |
Gasket (947620)
Price: $0.70SUGGESTED QTY:4
See group 2B
VIEW DETAILS
|
|
|
19. |
Stay (842708)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
19 Items
