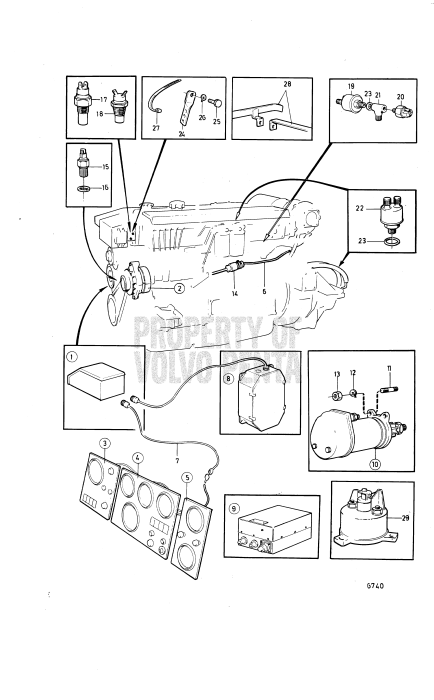

Electrical System and Instrument
|
1. |
Electric Box and Installation Components (16316)
SUGGESTED QTY:1
TAMD60C
VIEW DETAILS
|
|
|
2. |
Alternator and Installation Components 12V38A, 24V25A (16327)
SUGGESTED QTY:1
TAMD60C
VIEW DETAILS
|
|
|
2. |
Alternator and Installation Components (16328)
SUGGESTED QTY:1
TAMD60C
VIEW DETAILS
|
|
|
4. |
Instrument panel (847979)
Price: $99,999.00SUGGESTED QTY:1
12V
VIEW DETAILS
|
|
|
4. |
Instrument Panel: 847979 (16324)
SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Instrument panel (847980)
Price: $99,999.00SUGGESTED QTY:1
24V, Obsolete p...
VIEW DETAILS
|
|
|
5. |
Instrument Panel: 846847 (16323)
SUGGESTED QTY:1
VIEW DETAILS
|
|
|
5. |
Instrument panel (864050)
Price: $99,999.00SUGGESTED QTY:1
24V repl by 849...
VIEW DETAILS
|
|
|
6. |
Cable trunk (846604)
Price: $1,247.00SUGGESTED QTY:1
Engine
VIEW DETAILS
|
|
|
8. |
Cable trunk (838419)
Price: $99,999.00SUGGESTED QTY:1
For instrument ...
VIEW DETAILS
|
|
|
9. |
Governor (823766)
Price: $99,999.00SUGGESTED QTY:1
24V 60A, Obsole...
VIEW DETAILS
|
|
|
9. |
Charging Relay: 823766 (16320)
SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Starter motor (881681)
Price: $1,993.00SUGGESTED QTY:1
12V
VIEW DETAILS
|
|
|
10. |
Starter: 847307 (16322)
SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Starter motor (881683)
Price: $2,480.00SUGGESTED QTY:1
24V
VIEW DETAILS
|
|
|
10. |
Starter motor (843511)
Price: $99,999.00SUGGESTED QTY:1
12V, Obsolete p...
VIEW DETAILS
|
|
|
10. |
Starter: 843511 (960630)
SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Starter motor (881683)
Price: $2,480.00SUGGESTED QTY:1
24V
VIEW DETAILS
|
|
|
11. |
Stud (953486)
Price: $6.20SUGGESTED QTY:3
VIEW DETAILS
|
|
|
12. |
Spring washer (942336)
Price: $0.30SUGGESTED QTY:8
VIEW DETAILS
|
|
|
13. |
Hexagon nut (955827)
Price: $0.60SUGGESTED QTY:3
VIEW DETAILS
|
|
|
15. |
Tachometer sensor (354671)
Price: $265.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
O-ring (949656)
Price: $2.60SUGGESTED QTY:1
See group 3
VIEW DETAILS
|
|
|
17. |
Sensor (827150)
Price: $159.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Temperature sensor (837044)
Price: $172.00SUGGESTED QTY:1
For double inst...
VIEW DETAILS
|
|
|
18. |
Thermo monitor (822858)
Price: $192.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
Oil pressure sensor (866833)
Price: $251.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
Oil pressure sensor (866834)
Price: $265.00SUGGESTED QTY:1
For double inst...
VIEW DETAILS
|
|
|
20. |
Pressure switch (863169)
Price: $112.00SUGGESTED QTY:1
Stop
VIEW DETAILS
|
|
|
21. |
Nipple (180002)
Price: $24.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
22. |
Pressure sensor (866838)
Price: $329.00SUGGESTED QTY:1
See group 3
VIEW DETAILS
|
|
|
22. |
Oil pressure sensor, oil pressure sensor reverse gear (866840)
Price: $357.00SUGGESTED QTY:1
See group 4A
VIEW DETAILS
|
|
|
23. |
Gasket (957181)
Price: $9.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
24. |
Clamp (952635)
Price: $8.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
25. |
Hexagon screw (955523)
Price: $1.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
26. |
Spring washer (941907)
Price: $0.70SUGGESTED QTY:3
VIEW DETAILS
|
|
|
27. |
Cable tie (948210)
Price: $1.20SUGGESTED QTY:1
Nylon
VIEW DETAILS
|
|
|
29. |
Position sensor (837772)
Price: $249.00SUGGESTED QTY:1
VIEW DETAILS
|
38 Items
