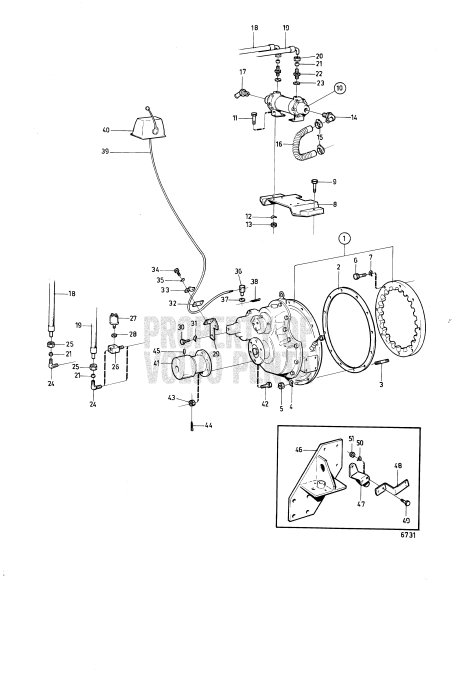

Reverse Gear Twin Disc MG507 and Installation Components


2.	Gasket (862623) Price: $55.10 SUGGESTED QTY:1 VIEW DETAILS
3.	Stud (953486) Price: $6.20 SUGGESTED QTY:3 VIEW DETAILS
3.	Stud (953492) Price: $7.40 SUGGESTED QTY:1 L=60mm VIEW DETAILS
4.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:8 VIEW DETAILS
5.	Hexagon nut (955827) Price: $0.60 SUGGESTED QTY:3 VIEW DETAILS
6.	Hexagon screw (940162) Price: $1.50 SUGGESTED QTY:3 VIEW DETAILS
7.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:8 VIEW DETAILS
8.	Bracket (847020) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
9.	Hexagon screw (955592) Price: $7.30 SUGGESTED QTY:8 VIEW DETAILS
10.	Oil cooler (3832937) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
10.	Oil Cooler: 804472 (16337) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Hexagon screw (940135) Price: $2.70 SUGGESTED QTY:4 VIEW DETAILS
12.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:3 VIEW DETAILS
13.	Hexagon nut (955826) Price: $1.60 SUGGESTED QTY:2 VIEW DETAILS
14.	Elbow nipple (801157) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
15.	Hose clamp (994560) Price: $7.60 SUGGESTED QTY:2 VIEW DETAILS
16.	Rubber hose (1542598) Price: $143.00 SUGGESTED QTY:1 L=375mm VIEW DETAILS
17.	Hose attachment (836759) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
18.	Lube oil hose (847165) Price: $245.00 SUGGESTED QTY:1 L=580mm VIEW DETAILS
19.	Lube oil hose (847165) Price: $245.00 SUGGESTED QTY:1 L=580mm VIEW DETAILS
20.	Fitting nut (941331) Price: $2.70 SUGGESTED QTY:2 VIEW DETAILS
21.	Ferrule (980782) Price: $7.10 SUGGESTED QTY:4 VIEW DETAILS
22.	Fitting (943755) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 VIEW DETAILS
23.	Gasket (957184) Price: $0.50 SUGGESTED QTY:2 VIEW DETAILS
24.	Nipple (941750) Price: $41.40 SUGGESTED QTY:2 VIEW DETAILS
25.	Fitting nut (956984) Price: $6.20 SUGGESTED QTY:2 VIEW DETAILS
26.	Nipple (842425) Price: $264.00 SUGGESTED QTY:1 VIEW DETAILS
27.	Oil pressure sensor, oil pressure sensor reverse gear (866840) Price: $357.00 SUGGESTED QTY:1 See group 4A VIEW DETAILS
28.	Gasket (957181) Price: $9.90 SUGGESTED QTY:2 VIEW DETAILS
29.	Anchorage (845063) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
30.	Hexagon screw (970948) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
31.	Spring washer (941908) Price: $0.40 SUGGESTED QTY:16 VIEW DETAILS
32.	Washer (819068) Price: $4.60 SUGGESTED QTY:1 VIEW DETAILS
33.	Bracket (21471054) Price: $6.80 SUGGESTED QTY:1 VIEW DETAILS
34.	Cross recessed screw (950021) Price: $3.00 SUGGESTED QTY:2 VIEW DETAILS
35.	Spring washer (941905) Price: $0.40 SUGGESTED QTY:3 VIEW DETAILS
36.	Cube (813674) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
37.	Washer (940191) Price: $8.70 SUGGESTED QTY:16 VIEW DETAILS
38.	Split pin (17276) Price: $3.80 SUGGESTED QTY:1 VIEW DETAILS
41.	Clutch flange (837055) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 For ratio 2,99:... VIEW DETAILS
41.	Companion flange (22691344) Price: $1,961.00 SUGGESTED QTY:1 VIEW DETAILS
42.	Hexagon screw (955738) Price: $13.00 SUGGESTED QTY:6 VIEW DETAILS
42.	Hexagon screw (955750) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:6 For ratio 2,99:... VIEW DETAILS
43.	Castle nut (955886) Price: $7.80 SUGGESTED QTY:6 VIEW DETAILS
43.	Castle nut (955887) Price: $64.17 SUGGESTED QTY:6 For ratio 2,99:... VIEW DETAILS
44.	Split pin (907861) Price: $1.00 SUGGESTED QTY:6 VIEW DETAILS
45.	Taper pin (965011) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 For ratio 2,99:... VIEW DETAILS
47.	Bracket (847516) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
48.	Bracket (843378) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
49.	Hexagon screw (955559) Price: $6.00 SUGGESTED QTY:2 VIEW DETAILS
50.	Spring washer (940280) Price: $1.10 SUGGESTED QTY:8 VIEW DETAILS
51.	Hexagon nut (940176) Price: $4.10 SUGGESTED QTY:2 VIEW DETAILS
