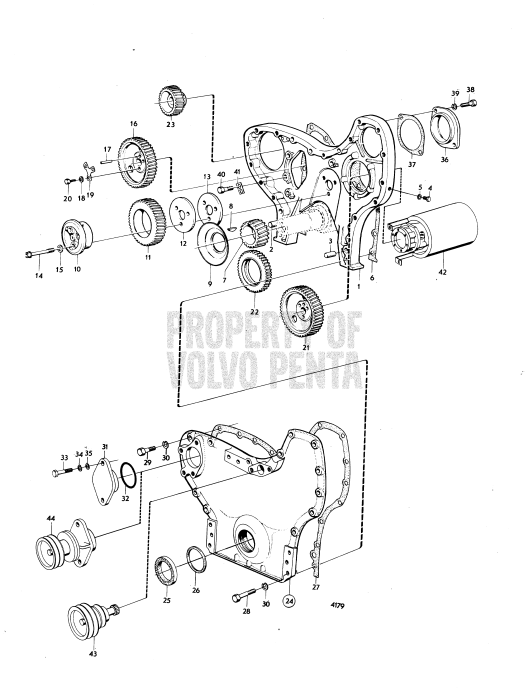

Timing Gear Cover and Gear


1.	Timing gear casing (421413) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
2.	Pin (941511) Price: $17.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Pin (941510) Price: $15.00 SUGGESTED QTY:1 VIEW DETAILS
4.	Plug (943681) Price: $16.20 SUGGESTED QTY:1 VIEW DETAILS
5.	O-ring (949656) Price: $2.60 SUGGESTED QTY:1 VIEW DETAILS
6.	Gasket (421057) Price: $24.40 SUGGESTED QTY:1 VIEW DETAILS
9.	Oil deflector (420172) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
9.	Crankshaft and Related Parts: A (16407) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 TAMD70B, AQD70B... VIEW DETAILS
10.	Bearing spindle (422766) Price: $200.00 SUGGESTED QTY:1 M053372/XXXX- VIEW DETAILS
11.	Idler gear (467461) Price: $1,065.00 SUGGESTED QTY:1 M053372/XXXX- VIEW DETAILS
12.	Thrust washer (478951) Price: $80.80 SUGGESTED QTY:1 M075673/XXXX- VIEW DETAILS
13.	Bearing shield (467528) Price: $15.40 SUGGESTED QTY:1 MO75673/XXXX- VIEW DETAILS
14.	Flange screw (422316) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:3 Obsolete part VIEW DETAILS
15.	Disc spring (942180) Price: $3.50 SUGGESTED QTY:3 VIEW DETAILS
20.	Camshaft (16410) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 TAMD70B, AQD70B... VIEW DETAILS
21.	Gear (421079) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
22.	Gear, oil pump (3580569) This product has been discontinued Price: $233.00 SUGGESTED QTY:1 Incl.in oil pum... VIEW DETAILS
24.	Cardboard tube (896632) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
25.	Sealing ring (477118) Price: $94.40 SUGGESTED QTY:1 VIEW DETAILS
26.	Sealing ring (477118) Price: $94.40 SUGGESTED QTY:1 VIEW DETAILS
27.	Gasket (421061) Price: $37.00 SUGGESTED QTY:1 VIEW DETAILS
28.	Hexagon screw (955530) Price: $3.40 SUGGESTED QTY:1 L=83mm VIEW DETAILS
28.	Hexagon screw (955532) Price: $3.60 SUGGESTED QTY:5 L=95mm VIEW DETAILS
28.	Hexagon screw (955533) This product has been discontinued Price: $5.03 SUGGESTED QTY:1 L=102mm alt VIEW DETAILS
29.	Hexagon screw (955526) Price: $2.20 SUGGESTED QTY:4 L=51mm VIEW DETAILS
29.	Hexagon screw (940186) Price: $1.70 SUGGESTED QTY:10 L=38mm VIEW DETAILS
30.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:2 Excl MD70BK spe... VIEW DETAILS
31.	Cover (420183) Price: $54.30 SUGGESTED QTY:1 VIEW DETAILS
32.	Seal (420213) Price: $13.40 SUGGESTED QTY:1 VIEW DETAILS
34.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
35.	Washer (940097) Price: $0.40 SUGGESTED QTY:2 VIEW DETAILS
36.	Cover (420183) Price: $54.30 SUGGESTED QTY:1 VIEW DETAILS
37.	Gasket (862591) Price: $3.60 SUGGESTED QTY:1 VIEW DETAILS
39.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
40.	Hexagon screw (955525) Price: $1.20 SUGGESTED QTY:2 Excl MD70BK spe... VIEW DETAILS
41.	Tab washer (941571) Price: $4.90 SUGGESTED QTY:5 VIEW DETAILS

36 Items

Grouped product items
Product Name	Qty
Timing gear casing $99,999.00
Pin $17.00
Pin $15.00
Plug $16.20
O-ring $2.60
Gasket $24.40
Woodruff key $22.70
Crankshaft and Related Parts: A Starting at $0.10
Bearing spindle $200.00
Idler gear $1,065.00
Thrust washer $80.80
Bearing shield $15.40
Flange screw $99,999.00
Disc spring $3.50
Pin $4.30
Camshaft Starting at $0.30
Gear $99,999.00
Gear, oil pump $233.00
Cardboard tube $99,999.00
Sealing ring $94.40
Sealing ring $94.40
Gasket $37.00
Hexagon screw $3.60
Hexagon screw $5.03
Hexagon screw $3.40
Hexagon screw $2.20
Hexagon screw $1.70
Spring washer $0.70
Seal $13.40
Washer $0.40
Cover $54.30
Gasket $3.60
Hexagon screw $3.30
Spring washer $0.30
Hexagon screw $1.20
Tab washer $4.90
