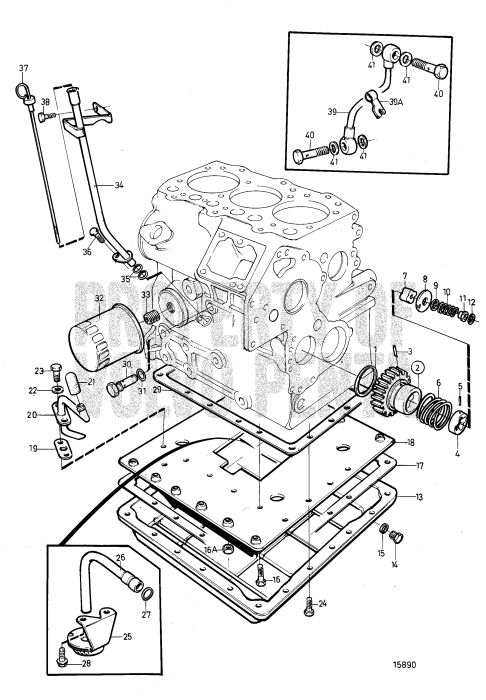

Lubricating System


1.	Thrust washer (861986) Price: $8.10 SUGGESTED QTY:1 VIEW DETAILS
2.	Gear (3580569) This product has been discontinued Price: $233.00 SUGGESTED QTY:1 Replaced by 215... VIEW DETAILS
2.	Oil pump (21541021) Price: $656.00 SUGGESTED QTY:1 VIEW DETAILS
6.	Spring (861988) Price: $6.90 SUGGESTED QTY:1 VIEW DETAILS
7.	Rotor (3580570) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 Replaced by 215... VIEW DETAILS
7.	Oil pump (21541021) Price: $656.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Cardboard tube (861527) Price: $55.40 SUGGESTED QTY:1 VIEW DETAILS
9.	Shim (861530) Price: $7.80 SUGGESTED QTY:1 TH=0,20mm VIEW DETAILS
9.	Shim (861531) Price: $7.80 SUGGESTED QTY:1 TH=0,50mm VIEW DETAILS
9.	Shim (861528) Price: $8.90 SUGGESTED QTY:1 TH=0.10mm VIEW DETAILS
9.	Shim (861529) Price: $5.60 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
10.	Spring (861532) Price: $4.50 SUGGESTED QTY:1 VIEW DETAILS
11.	Sleeve (861533) Price: $14.80 SUGGESTED QTY:1 VIEW DETAILS
12.	Lock ring (861534) Price: $4.50 SUGGESTED QTY:1 VIEW DETAILS
13.	Sump (3580467) Price: $310.00 SUGGESTED QTY:1 VIEW DETAILS
14.	Screw (861834) Price: $10.10 SUGGESTED QTY:1 VIEW DETAILS
15.	Washer (11994) Price: $1.30 SUGGESTED QTY:1 VIEW DETAILS
16.	Screw (984724) Price: $0.90 SUGGESTED QTY:4 VIEW DETAILS
16A.	Flange nut (945407) Price: $0.60 SUGGESTED QTY:1 (861915) VIEW DETAILS
17.	Gasket (3580468) Price: $140.00 SUGGESTED QTY:1 VIEW DETAILS
18.	Plate (3580469) Price: $200.10 SUGGESTED QTY:1 VIEW DETAILS
19.	Gasket (861838) Price: $9.10 SUGGESTED QTY:1 VIEW DETAILS
20.	Tube (3580470) Price: $102.00 SUGGESTED QTY:1 VIEW DETAILS
21.	Rubber cap (1276516) Price: $2.20 SUGGESTED QTY:1 VIEW DETAILS
22.	Gasket (11991) Price: $0.60 SUGGESTED QTY:2 (861841) VIEW DETAILS
23.	Screw (955271) Price: $0.80 SUGGESTED QTY:2 VIEW DETAILS
24.	Screw (955271) Price: $0.80 SUGGESTED QTY:2 VIEW DETAILS
25.	Oil filter (861999) Price: $29.80 SUGGESTED QTY:1 VIEW DETAILS
26.	Suction pipe (3580573) Price: $24.00 SUGGESTED QTY:1 VIEW DETAILS
27.	O-ring (861997) Price: $10.80 SUGGESTED QTY:1 VIEW DETAILS
28.	Screw (861526) Price: $7.70 SUGGESTED QTY:1 VIEW DETAILS
29.	Gasket (3580462) Price: $54.10 SUGGESTED QTY:1 VIEW DETAILS
30.	Reduction valve (3583580) Price: $104.00 SUGGESTED QTY:1 VIEW DETAILS
31.	O-ring (861830) Price: $9.10 SUGGESTED QTY:1 VIEW DETAILS
32.	Oil filter (3840525) Price: $30.40 SUGGESTED QTY:1 (3580228) VIEW DETAILS
33.	Bolt (861825) Price: $11.40 SUGGESTED QTY:1 VIEW DETAILS
34.	Tube (3580474) Price: $100.00 SUGGESTED QTY:1 VIEW DETAILS
35.	O-ring (861851) Price: $23.10 SUGGESTED QTY:2 VIEW DETAILS
36.	Screw (984724) Price: $0.90 SUGGESTED QTY:2 VIEW DETAILS
37.	Oil dipstick (3581557) Price: $81.60 SUGGESTED QTY:1 VIEW DETAILS
38.	Screw (947107) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
39.	Oil pipe (3580494) Price: $120.00 SUGGESTED QTY:1 VIEW DETAILS
39A.	Clamp (982643) This product has been discontinued Price: $0.82 SUGGESTED QTY:1 VIEW DETAILS
40.	Hollow screw (861872) Price: $10.30 SUGGESTED QTY:2 VIEW DETAILS
41.	Gasket (947620) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS
