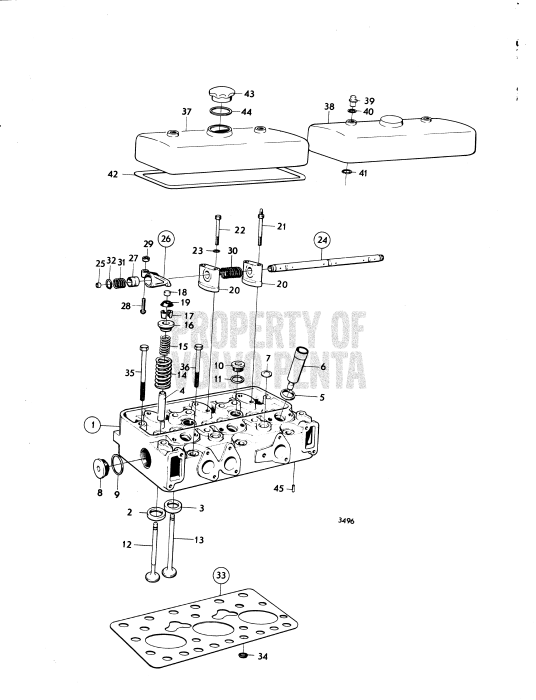

Cylinder Head: A


1.	Cylinder head (3803031) Price: $5,932.00 SUGGESTED QTY:2 (466769) VIEW DETAILS
2.	Valve seat (421316) Price: $93.70 SUGGESTED QTY:6 0,20mm o.s VIEW DETAILS
2.	Valve seat (421011) Price: $87.40 SUGGESTED QTY:6 Std D VIEW DETAILS
3.	Valve seat (466266) Price: $95.90 SUGGESTED QTY:6 Std D VIEW DETAILS
3.	Valve seat (466307) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:6 0,20mm o.s VIEW DETAILS
4.	Valve guide (466386) Price: $28.50 SUGGESTED QTY:12 VIEW DETAILS
5.	Sealing ring (469205) Price: $5.00 SUGGESTED QTY:6 VIEW DETAILS
6.	Sleeve (466284) Price: $71.90 SUGGESTED QTY:6 VIEW DETAILS
7.	Expansion plug (477026) Price: $9.20 SUGGESTED QTY:4 VIEW DETAILS
8.	Plug (15134976) Price: $35.10 SUGGESTED QTY:6 VIEW DETAILS
9.	Gasket (1556907) Price: $1.10 SUGGESTED QTY:6 VIEW DETAILS
10.	Plug (466230) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:4 Obsolete part VIEW DETAILS
11.	Gasket (420166) Price: $0.50 SUGGESTED QTY:4 VIEW DETAILS
12.	Inlet valve (421016) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:6 Obsolete part VIEW DETAILS
13.	Exhaust valve (421017) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:6 VIEW DETAILS
14.	Valve spring (421374) Price: $22.60 SUGGESTED QTY:12 VIEW DETAILS
15.	Spring (845748) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Alt.L=37,70mm, ... VIEW DETAILS
16.	Valve spring washer (421295) This product has been discontinued Price: $38.56 SUGGESTED QTY:12 Obsolete part VIEW DETAILS
17.	Valve cotter (402418) Price: $7.80 SUGGESTED QTY:24 VIEW DETAILS
18.	Valve cap (478074) Price: $16.10 SUGGESTED QTY:12 VIEW DETAILS
19.	Protecting ring (469456) Price: $6.00 SUGGESTED QTY:12 VIEW DETAILS
20.	Bearing bracket (477384) Price: $77.30 SUGGESTED QTY:6 VIEW DETAILS
21.	Stud (420270) Price: $59.90 SUGGESTED QTY:4 VIEW DETAILS
22.	Hexagon screw (955540) Price: $3.60 SUGGESTED QTY:8 VIEW DETAILS
23.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
24.	Shaft (421019) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
25.	Cap plug (946778) Price: $7.40 SUGGESTED QTY:4 VIEW DETAILS
26.	Rocker arm (422063) Price: $174.00 SUGGESTED QTY:12 VIEW DETAILS
27.	Bushing (422066) Price: $43.50 SUGGESTED QTY:12 VIEW DETAILS
28.	Ball stud (422993) Price: $14.30 SUGGESTED QTY:12 VIEW DETAILS
29.	Hexagon nut (940175) Price: $2.50 SUGGESTED QTY:12 VIEW DETAILS
30.	Spring (421173) Price: $28.30 SUGGESTED QTY:4 VIEW DETAILS
31.	Spring (421172) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:4 Obsolete part VIEW DETAILS
32.	Snap ring (914459) Price: $1.10 SUGGESTED QTY:4 VIEW DETAILS
33.	Cylinder head gasket (275525) Price: $149.00 SUGGESTED QTY:2 VIEW DETAILS
34.	Sealing ring (422414) Price: $7.50 SUGGESTED QTY:12 D=32mm VIEW DETAILS
34.	Sealing ring (466421) Price: $6.20 SUGGESTED QTY:16 D=16mm VIEW DETAILS
34.	Sealing ring (422413) Price: $10.30 SUGGESTED QTY:2 D=11mm VIEW DETAILS
35.	Flange screw (421218) Price: $39.50 SUGGESTED QTY:20 L=168mm VIEW DETAILS
36.	Flange screw (466764) Price: $138.00 SUGGESTED QTY:6 L=118mm VIEW DETAILS
37.	Cover (421063) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
38.	Cover (421065) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
39.	Cap nut (424341) Price: $45.20 SUGGESTED QTY:4 VIEW DETAILS
40.	Sealing ring (469846) Price: $4.70 SUGGESTED QTY:3 VIEW DETAILS
41.	Snap ring (914449) Price: $0.60 SUGGESTED QTY:4 VIEW DETAILS
42.	Gasket (421066) Price: $29.20 SUGGESTED QTY:2 VIEW DETAILS
43.	Oil filler cap (421753) Price: $26.30 SUGGESTED QTY:1 VIEW DETAILS
44.	Gasket (1275379) Price: $12.50 SUGGESTED QTY:1 VIEW DETAILS
45.	Pin (949020) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:4 Obsolete part VIEW DETAILS

49 Items

Grouped product items
Product Name	Qty
Cylinder head $5,932.00
Valve seat $87.40
Valve seat $93.70
Valve seat $99,999.00
Valve seat $95.90
Valve guide $28.50
Sealing ring $5.00
Sleeve $71.90
Expansion plug $9.20
Plug $35.10
Gasket $1.10
Plug $99,999.00
Gasket $0.50
Inlet valve $99,999.00
Exhaust valve $99,999.00
Valve spring $22.60
Spring $99,999.00
Valve spring washer $38.56
Valve cotter $7.80
Valve cap $16.10
Protecting ring $6.00
Bearing bracket $77.30
Stud $59.90
Hexagon screw $3.60
Spring washer $0.30
Shaft $99,999.00
Cap plug $7.40
Rocker arm $174.00
Bushing $43.50
Ball stud $14.30
Hexagon nut $2.50
Spring $28.30
Spring $99,999.00
Snap ring $1.10
Cylinder head gasket $149.00
Sealing ring $7.50
Sealing ring $6.20
Sealing ring $10.30
Flange screw $39.50
Flange screw $138.00
Cover $99,999.00
Cover $99,999.00
Cap nut $45.20
Sealing ring $4.70
Snap ring $0.60
Gasket $29.20
Oil filler cap $26.30
Gasket $12.50
Pin $99,999.00
