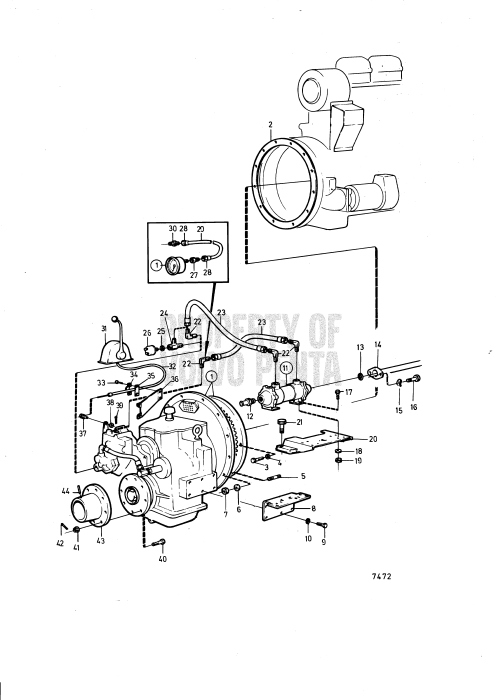

Reverse Gear Twin Disc MG509 and Installation Components


2.	Gasket (862623) Price: $55.10 SUGGESTED QTY:1 VIEW DETAILS
4.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
5.	Stud (953486) Price: $6.20 SUGGESTED QTY:3 VIEW DETAILS
6.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
8.	Bracket (837098) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
10.	Spring washer (941912) Price: $0.90 SUGGESTED QTY:8 VIEW DETAILS
11.	Oil cooler (966871) Price: $85.90 SUGGESTED QTY:1 VIEW DETAILS
11.	Oil Cooler: 804472 (16730) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
12.	Hose attachment (836759) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
14.	Pipe (3861438) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
15.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS
18.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS
20.	Bracket, bracket (847020) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Ratio 2,93:1,3,... VIEW DETAILS
22.	Elbow union (837063) Price: $345.00 SUGGESTED QTY:4 VIEW DETAILS
23.	Hose (848351) Price: $506.00 SUGGESTED QTY:2 L=770mm VIEW DETAILS
24.	Elbow union (842717) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
26.	Oil pressure sensor (866840) Price: $357.00 SUGGESTED QTY:1 See group 4A VIEW DETAILS
27.	Nipple (836064) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
28.	Fitting nut (954320) Price: $28.30 SUGGESTED QTY:2 VIEW DETAILS
29.	Tube (954303) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
30.	Nipple (954334) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
33.	Cross recessed screw (950021) Price: $3.00 SUGGESTED QTY:2 VIEW DETAILS
34.	Bracket (21471054) Price: $6.80 SUGGESTED QTY:1 VIEW DETAILS
35.	Washer (819068) Price: $4.60 SUGGESTED QTY:1 VIEW DETAILS
36.	Bracket (836117) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
37.	Cube (813674) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
40.	Screw (955772) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part, ... VIEW DETAILS
41.	Castle nut (955889) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part, ... VIEW DETAILS
42.	Split pin (907881) Price: $14.20 SUGGESTED QTY:8 For 837093 VIEW DETAILS
43.	Clutch flange (837093) Price: $5,750.00 SUGGESTED QTY:1 Opposite revolu... VIEW DETAILS
44.	Taper pin (907661) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part, ... VIEW DETAILS

31 Items

Grouped product items
Product Name	Qty
Gasket $55.10
Hexagon screw $1.50
Hexagon screw $2.40
Stud $6.20
Spring washer $0.30
Hexagon nut $0.60
Bracket $99,999.00
Hexagon screw $4.60
Spring washer $0.90
Oil Cooler: 804472 Starting at $0.40
Oil cooler $85.90
Hose attachment $99,999.00
Gasket $27.60
Pipe $99,999.00
Hexagon screw $2.70
Spring washer $0.70
Hexagon nut $1.60
Bracket, bracket $99,999.00
Hexagon screw $7.30
Elbow union $345.00
Hose $506.00
Elbow union $99,999.00
Gasket $1.10
Oil pressure sensor $357.00
Nipple $99,999.00
Fitting nut $28.30
Tube $99,999.00
Nipple $99,999.00
Cross recessed screw $3.00
Bracket $6.80
Washer $4.60
Bracket $99,999.00
Cube $99,999.00
Washer $8.70
Split pin $1.80
Screw $99,999.00
Castle nut $99,999.00
Split pin $14.20
Clutch flange $5,750.00
Taper pin $99,999.00
