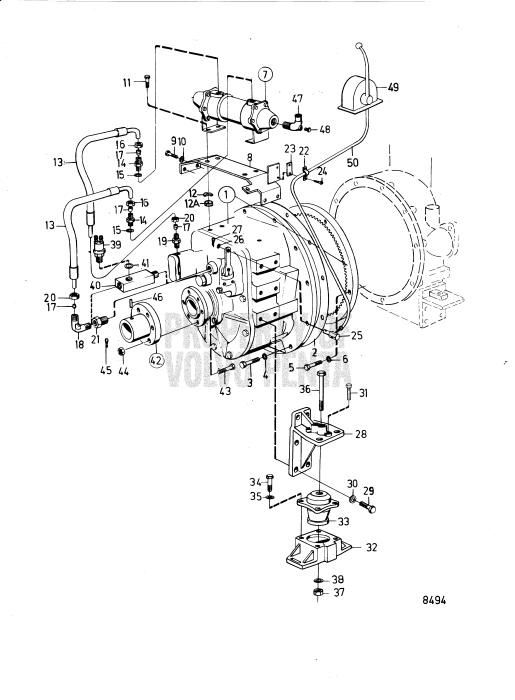

Reverse Gear Twin Disc MG506 and Installation Components


4.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
6.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
7.	Oil cooler (3832937) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
7.	Oil Cooler: 804472 (16893) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Bracket (837315) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
12.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:1 VIEW DETAILS
13.	Hose assembly (837935) Price: $295.00 SUGGESTED QTY:2 VIEW DETAILS
14.	Fitting (943755) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 VIEW DETAILS
17.	Ferrule (980782) Price: $7.10 SUGGESTED QTY:4 VIEW DETAILS
21.	Nipple (804533) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
25.	Cube (813674) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
28.	Bracket (837715) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
32.	Anchorage (837716) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
34.	Hexagon screw (970947) Price: $1.60 SUGGESTED QTY:8 VIEW DETAILS
35.	Spring washer (941908) Price: $0.40 SUGGESTED QTY:8 VIEW DETAILS
36.	Hexagon screw (955378) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
37.	Hexagon nut (955785) Price: $7.30 SUGGESTED QTY:2 VIEW DETAILS
38.	Spring washer (941912) Price: $0.90 SUGGESTED QTY:8 VIEW DETAILS
39.	Oil pressure sensor, oil pressure sensor reverse gear (866840) Price: $357.00 SUGGESTED QTY:1 See group 4A VIEW DETAILS
42.	Clutch flange (830738) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
42.	Clutch flange (837054) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 For ratio:3,8-4... VIEW DETAILS
43.	Hexagon screw (955750) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:6 For ratio:3,8-4... VIEW DETAILS
45.	Taper pin (965011) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 For ratio:3,8-4... VIEW DETAILS
47.	Hose attachment (942334) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
48.	Plug (861551) Price: $13.90 SUGGESTED QTY:1 VIEW DETAILS
50.	Control cable THIS PRODUCT HAS BEEN DISCONTINUED

26 Items

Grouped product items
Product Name	Qty
Gasket $55.10
Hexagon screw $3.30
Hexagon screw $1.50
Spring washer $0.30
Oil Cooler: 804472 Starting at $0.40
Oil cooler $99,999.00
Bracket $99,999.00
Hexagon screw $2.30
Hexagon screw $0.70
Hexagon nut $1.60
Spring washer $0.70
Hose assembly $295.00
Fitting $99,999.00
Gasket $0.50
Fitting nut $2.70
Ferrule $7.10
Nipple $41.40
Fitting nut $6.20
Nipple $99,999.00
Bracket $6.80
Washer $4.60
Cross recessed screw $3.00
Cube $99,999.00
Washer $8.70
Split pin $3.80
Bracket $99,999.00
Hexagon screw $3.10
Spring washer $1.10
Screw $10.40
Anchorage $99,999.00
Rubber element $688.00
Hexagon screw $1.60
Spring washer $0.40
Hexagon screw $99,999.00
Hexagon nut $7.30
Spring washer $0.90
Oil pressure sensor, oil pressure sensor reverse gear $357.00
Nipple $264.00
Gasket $9.90
Clutch flange $99,999.00
Clutch flange $99,999.00
Hexagon screw $18.10
Hexagon screw $99,999.00
Castle nut $67.70
Castle nut $7.80
Split pin $1.00
Taper pin $99,999.00
Taper pin $25.10
Hose attachment $99,999.00
Plug $13.90
