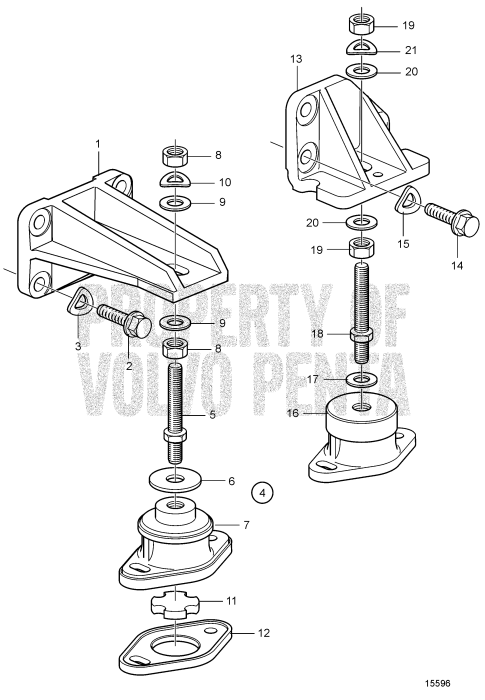

Engine Mounting for Jack Shaft Installations


1.	Engine bracket (3580748) Price: $1,166.00 SUGGESTED QTY:2 VIEW DETAILS
2.	Flange screw (965192) Price: $3.90 SUGGESTED QTY:7 L=40mm VIEW DETAILS
2.	Flange screw (984850) Price: $3.50 SUGGESTED QTY:1 VIEW DETAILS
3.	Spring washer (940280) Price: $1.10 SUGGESTED QTY:8 VIEW DETAILS
4.	Rubber element (876596) This product has been discontinued Price: $0.00 SUGGESTED QTY:2 VIEW DETAILS
5.	Adjusting screw (860950) Price: $42.00 SUGGESTED QTY:2 VIEW DETAILS
6.	Washer (843298) Price: $27.60 SUGGESTED QTY:2 VIEW DETAILS
7.	Rubber element (843323) Price: $330.00 SUGGESTED QTY:2 Replaced by 1 e... VIEW DETAILS
8.	Hexagon nut (955806) Price: $7.90 SUGGESTED QTY:4 VIEW DETAILS
9.	Washer (955901) Price: $2.00 SUGGESTED QTY:2 D=34mm VIEW DETAILS
9.	Washer (978991) Price: $4.80 SUGGESTED QTY:2 D=40mm VIEW DETAILS
10.	Spring washer (941913) Price: $0.60 SUGGESTED QTY:2 VIEW DETAILS
11.	Rubber disc (843299) Price: $23.10 SUGGESTED QTY:2 VIEW DETAILS
12.	Pad (843286) Price: $76.30 SUGGESTED QTY:2 VIEW DETAILS
13.	Engine bracket (860954) Price: $214.00 SUGGESTED QTY:1 S.B VIEW DETAILS
13.	Engine bracket (860952) Price: $361.00 SUGGESTED QTY:1 P VIEW DETAILS
14.	Flange screw (965225) Price: $5.60 SUGGESTED QTY:4 VIEW DETAILS
14.	Flange screw (965226) This product has been discontinued Price: $0.00 SUGGESTED QTY:2 VIEW DETAILS
15.	Spring washer (940280) Price: $1.10 SUGGESTED QTY:8 VIEW DETAILS
15.	Washer (955897) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
16.	Rubber element (876597) Price: $484.00 SUGGESTED QTY:2 VIEW DETAILS
17.	Washer (994873) Price: $1.40 SUGGESTED QTY:2 VIEW DETAILS
18.	Adjusting screw (860950) Price: $42.00 SUGGESTED QTY:2 VIEW DETAILS
19.	Hexagon nut (955806) Price: $7.90 SUGGESTED QTY:4 VIEW DETAILS
20.	Washer (955901) Price: $2.00 SUGGESTED QTY:2 D=34mm VIEW DETAILS
20.	Washer (978991) Price: $4.80 SUGGESTED QTY:2 D=40mm VIEW DETAILS
21.	Spring washer (941913) Price: $0.60 SUGGESTED QTY:2 VIEW DETAILS

27 Items

Grouped product items
Product Name	Qty
Engine bracket $1,166.00
Flange screw $3.50
Flange screw $3.90
Rubber element $0.00
Washer $27.60
Rubber element $330.00
Rubber disc $23.10
Pad $76.30
Engine bracket $361.00
Engine bracket $214.00
Flange screw $0.00
Flange screw $5.60
Spring washer $1.10
Washer $1.10
Rubber element $484.00
Washer $1.40
Adjusting screw $42.00
Hexagon nut $7.90
Washer $2.00
Washer $4.80
Spring washer $0.60
