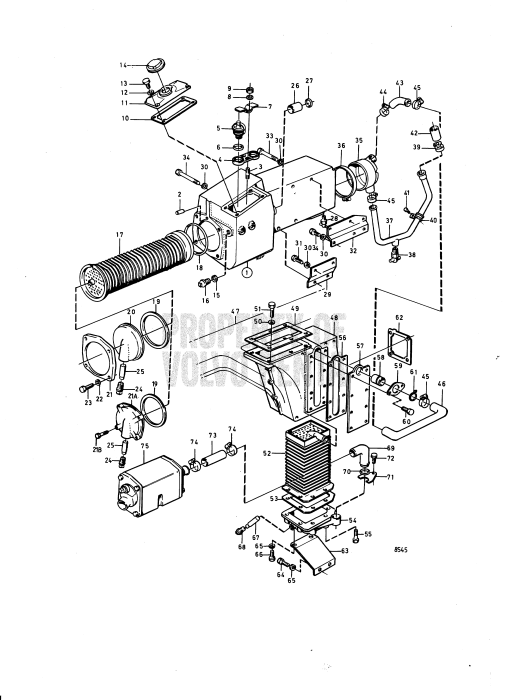

Heat Exchanger, After Cooler and Thermostat with Installation Comps: D


1.	Heat exchanger housi (838429) Price: $99,999.00 SUGGESTED QTY:1 Replaced by hou... VIEW DETAILS
1.	Heat exchanger housi (838429) Price: $2,735.17 SUGGESTED QTY:1 VIEW DETAILS
5.	Thermostat kit (3831425) Price: $63.80 SUGGESTED QTY:1 76C VIEW DETAILS
5.	Thermostat kit (3831426) Price: $62.00 SUGGESTED QTY:1 70C VIEW DETAILS
7.	Shield (845852) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
10.	Gasket (859045) Price: $11.80 SUGGESTED QTY:1 Early type VIEW DETAILS
12.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:6 VIEW DETAILS
13.	Hexagon screw (946173) Price: $1.10 SUGGESTED QTY:6 VIEW DETAILS
16.	Plug (944507) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 MO7054-, Obsole... VIEW DETAILS
17.	Insert (858833) Price: $4,828.00 SUGGESTED QTY:1 Repl by 838590 VIEW DETAILS
17.	Heat exchanger eleme (858833) Price: $4,828.00 SUGGESTED QTY:1 Repl by 858833 VIEW DETAILS
19.	Gasket (859010) Price: $25.40 SUGGESTED QTY:1 VIEW DETAILS
20.	End cover (846240) Price: $488.00 SUGGESTED QTY:1 End cover-84528... VIEW DETAILS
21.	End cover (846240) Price: $488.00 SUGGESTED QTY:1 End cover-84528... VIEW DETAILS
21B.	Hexagon screw (947818) Price: $0.50 SUGGESTED QTY:5 L=35mm VIEW DETAILS
22.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:6 VIEW DETAILS
23.	Hexagon screw (947818) Price: $0.50 SUGGESTED QTY:5 L=35mm VIEW DETAILS
27.	O-ring (948610) Price: $6.50 SUGGESTED QTY:2 VIEW DETAILS
29.	Bracket (845137) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Spring washer (941908) Price: $0.40 SUGGESTED QTY:4 VIEW DETAILS
31.	Hexagon screw (970947) Price: $1.60 SUGGESTED QTY:4 Early type, L=2... VIEW DETAILS
32.	Bracket (845138) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
33.	Hexagon screw, screw (984764) Price: $5.60 SUGGESTED QTY:1 L=130mm, late t... VIEW DETAILS
34.	Hexagon screw (970964) This product has been discontinued Price: $0.00 SUGGESTED QTY:5 VIEW DETAILS
41.	Hexagon screw (945358) Price: $0.50 SUGGESTED QTY:1 VIEW DETAILS
42.	Hose (24007729) Price: $127.00 SUGGESTED QTY:1 (952976) L=70mm... VIEW DETAILS
43.	Tube (845374) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
45.	Hose clamp (22274885) Price: $10.70 SUGGESTED QTY:2 See group 4A VIEW DETAILS
48.	Housing (845582) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
49.	Gasket (859131) Price: $24.40 SUGGESTED QTY:1 VIEW DETAILS
50.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:6 VIEW DETAILS
51.	Hexagon screw (965181) Price: $4.20 SUGGESTED QTY:4 VIEW DETAILS
52.	Insert (804107) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 MO-38214 VIEW DETAILS
52.	Insert (838547) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
53.	Gasket (838979) Price: $35.11 SUGGESTED QTY:2 MO-38214 VIEW DETAILS
53.	Gasket (838979) Price: $35.11 SUGGESTED QTY:2 MO38215- VIEW DETAILS
57.	Cover plate (845583) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
59.	Flange (845584) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
61.	Clamp (845385) Price: $8.14 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
62.	Gasket (859196) Price: $19.20 SUGGESTED QTY:1 VIEW DETAILS
63.	Bracket (845323) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
64.	Hexagon screw (946173) Price: $1.10 SUGGESTED QTY:6 VIEW DETAILS
65.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:6 VIEW DETAILS
69.	Coolant pipe (845358) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
71.	Brace (845704) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
73.	Hose (952974) Price: $59.60 SUGGESTED QTY:1 VIEW DETAILS
74.	Hose clamp (22274885) Price: $10.70 SUGGESTED QTY:2 See group 4A VIEW DETAILS
75.	Oil cooler (3581712) Price: $2,502.00 SUGGESTED QTY:1 (845349) MO3985... VIEW DETAILS

48 Items

Grouped product items
Product Name	Qty
Heat exchanger housi $99,999.00
Heat exchanger housi $2,735.17
Spring pin $0.50
Stud $4.10
Retainer $75.60
Thermostat kit $62.00
Thermostat kit $63.80
Sealing ring $8.00
Shield $99,999.00
Washer $0.40
Hexagon nut $1.60
Gasket $11.80
Cardboard tube $183.00
Pressure cap $44.10
Gasket $0.50
Plug $99,999.00
Insert $4,828.00
Heat exchanger eleme $4,828.00
Insert $4,828.00
O-ring $3.80
Gasket $25.40
End cover $488.00
End cover $488.00
End cover $488.00
Hexagon screw $0.50
Hexagon screw $1.10
O-ring $6.50
Bracket $99,999.00
Spring washer $0.40
Hexagon screw $1.60
Bracket $99,999.00
Hexagon screw, screw $5.60
Hexagon screw $0.00
End plate $287.00
Hose clamp $12.30
Shut-off cock $35.80
Clamp $8.30
Hexagon screw $0.50
Hose $127.00
Tube $99,999.00
Hose clamp $5.30
Hose $117.00
Housing $99,999.00
Gasket $24.40
Hexagon screw $2.70
Hexagon screw $4.20
Insert $99,999.00
Insert $0.00
Gasket $35.11
Gasket $35.11
Cardboard tube $897.00
Hexagon screw $1.50
Hexagon screw $2.20
Gasket $13.00
Cover plate $99,999.00
Sealing $23.10
Flange $99,999.00
Hexagon screw $0.80
Clamp $8.14
Bracket $99,999.00
Hexagon screw $1.10
Spring washer $0.70
Hexagon screw $2.40
Hexagon screw $1.90
Plug $24.00
Anode $15.50
Coolant pipe $99,999.00
Sealing ring $9.40
Brace $99,999.00
Hexagon screw $1.40
Hose clamp $10.70
Oil cooler $2,502.00
