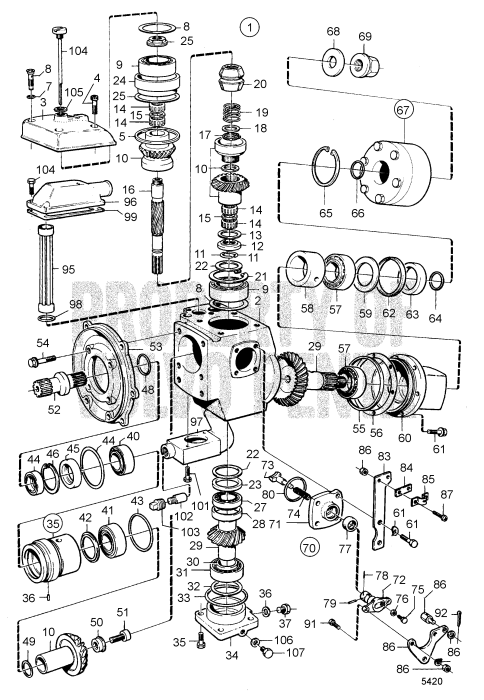

Reverse Gear MS3 Ratio 2, 91:1: 851100


1.	Reversing gear (851100) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Ratio 2,91:1, O... VIEW DETAILS
2.	Gear housing (851145) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
3.	Gear housing cover (832667) Price: $1,463.00 SUGGESTED QTY:1 (832668) VIEW DETAILS
4.	Hex. socket screw (956585) This product has been discontinued Price: $0.00 SUGGESTED QTY:3 VIEW DETAILS
5.	Gasket (832669) Price: $14.00 SUGGESTED QTY:1 VIEW DETAILS
7.	O-ring (955989) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
9.	Ball bearing (853542) Price: $549.00 SUGGESTED QTY:2 (183729) VIEW DETAILS
10.	Gear set (839027) Price: $8,764.05 SUGGESTED QTY:1 VIEW DETAILS
11.	Lock ring (897312) Price: $12.10 SUGGESTED QTY:2 VIEW DETAILS
12.	Spacer ring (850422) Price: $94.30 SUGGESTED QTY:1 VIEW DETAILS
13.	Wear washer (852433) Price: $147.00 SUGGESTED QTY:1 (850243) VIEW DETAILS
14.	Needle roller assemb (3852390) Price: $20.20 SUGGESTED QTY:4 VIEW DETAILS
15.	Spacer ring (897308) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
16.	Shaft (897385) Price: $2,379.00 SUGGESTED QTY:1 VIEW DETAILS
17.	Snap ring (951077) Price: $0.80 SUGGESTED QTY:1 VIEW DETAILS
18.	Shim (26411) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
19.	Spring (3852296) Price: $5.80 SUGGESTED QTY:1 VIEW DETAILS
20.	Sliding sleeve (3858669) Price: $1,410.00 SUGGESTED QTY:1 (852548) VIEW DETAILS
21.	Snap ring (850433) Price: $21.00 SUGGESTED QTY:1 VIEW DETAILS
22.	Shim (949074) Price: $6.80 SUGGESTED QTY:1 TH=0.50mm VIEW DETAILS
22.	Shim (949071) Price: $7.10 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
22.	Shim (949072) Price: $4.90 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
22.	Shim (949073) Price: $6.20 SUGGESTED QTY:1 TH=0.35mm VIEW DETAILS
23.	Bearing sleeve (832644) Price: $549.00 SUGGESTED QTY:1 VIEW DETAILS
24.	Shim (946179) Price: $14.20 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
24.	Shim (943870) Price: $14.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
25.	Nut (3852301) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,10mm VIEW DETAILS
25.	Nut (3852303) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,37mm VIEW DETAILS
25.	Nut (3852375) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,65mm VIEW DETAILS
27.	Gear set (851107) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
28.	Inner ring (183840) Price: $117.00 SUGGESTED QTY:1 (183840) VIEW DETAILS
29.	Shim (87655) Price: $6.60 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
29.	Shim (191840) Price: $4.90 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
29.	Shim (87654) Price: $6.90 SUGGESTED QTY:1 TH=0.35mm VIEW DETAILS
30.	O-ring (925258) Price: $10.80 SUGGESTED QTY:1 VIEW DETAILS
31.	Bearing cover (851144) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
32.	Hexagon screw (970948) Price: $1.10 SUGGESTED QTY:2 See group 2D VIEW DETAILS
35.	Bearing box (875425) This product has been discontinued Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
37.	Roller bearing (183247) Price: $185.00 SUGGESTED QTY:1 VIEW DETAILS
41.	Shim (941826) Price: $13.60 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
41.	Shim (941827) Price: $13.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
41.	Shim (948230) Price: $14.20 SUGGESTED QTY:1 TH=0.35mm VIEW DETAILS
42.	Sealing ring (839253) Price: $33.20 SUGGESTED QTY:1 VIEW DETAILS
43.	Snap ring (914538) Price: $10.30 SUGGESTED QTY:1 VIEW DETAILS
44.	Washer (832675) Price: $51.90 SUGGESTED QTY:1 VIEW DETAILS
45.	O-ring (956000) Price: $9.40 SUGGESTED QTY:1 VIEW DETAILS
46.	Shim (943871) Price: $14.20 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
46.	Shim (943872) Price: $14.20 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
46.	Shim (943873) Price: $14.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
48.	Screw (851293) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 (945090), Obsol... VIEW DETAILS
49.	Stub axle (850275) Price: $1,304.00 SUGGESTED QTY:1 VIEW DETAILS
50.	Intermediate section (850276) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
51.	Flange screw (965185) Price: $2.00 SUGGESTED QTY:6 VIEW DETAILS
52.	O-ring (925267) Price: $5.50 SUGGESTED QTY:1 VIEW DETAILS
53.	Adjusting washer (851494) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
53.	Adjusting washer (851495) Price: $14.90 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
53.	Adjusting washer (851496) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
54.	Roller bearing (3850852) Price: $275.00 SUGGESTED QTY:1 VIEW DETAILS
54.	Shim (84218) Price: $5.10 SUGGESTED QTY:1 BN1805- TH=0,35... VIEW DETAILS
55.	Bearing housing (851143) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
56.	Flange screw (946671) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
57.	O-ring (967344) Price: $20.80 SUGGESTED QTY:1 VIEW DETAILS
58.	Sealing ring (958880) Price: $48.63 SUGGESTED QTY:1 VIEW DETAILS
59.	O-ring (125018) Price: $39.40 SUGGESTED QTY:1 VIEW DETAILS
60.	Snap ring (914540) Price: $3.20 SUGGESTED QTY:1 VIEW DETAILS
61.	O-ring (925069) Price: $3.10 SUGGESTED QTY:1 VIEW DETAILS
62.	Slip clutch (852072) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
63.	Washer (850471) Price: $16.50 SUGGESTED QTY:1 VIEW DETAILS
64.	Flange lock nut (947855) Price: $121.00 SUGGESTED QTY:1 VIEW DETAILS
65.	Shift mechanism (3855787) Price: $958.00 SUGGESTED QTY:1 VIEW DETAILS
66.	Bearing housing (3855785) Price: $530.00 SUGGESTED QTY:1 VIEW DETAILS
67.	Eccentric piston (897816) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
68.	Dog (3856502) Price: $165.00 SUGGESTED QTY:1 VIEW DETAILS
69.	Spring (814184) Price: $1.90 SUGGESTED QTY:1 VIEW DETAILS
70.	Hexagon screw (897711) Price: $27.10 SUGGESTED QTY:1 VIEW DETAILS
71.	Shim (897871) Price: $3.70 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
72.	Sealing ring (853868) Price: $36.40 SUGGESTED QTY:1 (941866) VIEW DETAILS
73.	Spring pin (951924) Price: $0.30 SUGGESTED QTY:1 VIEW DETAILS
74.	Clevis pin (942871) Price: $17.50 SUGGESTED QTY:1 VIEW DETAILS
75.	O-ring (925093) Price: $2.10 SUGGESTED QTY:1 VIEW DETAILS
76.	Hexagon screw (955273) Price: $1.00 SUGGESTED QTY:4 VIEW DETAILS
78.	Cable attachment (850350) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
83.	Intermediate lever (852363) Price: $21.50 SUGGESTED QTY:1 (834021) VIEW DETAILS
85.	Toothed washer (955948) Price: $0.40 SUGGESTED QTY:2 VIEW DETAILS
86.	Hexagon screw (955271) Price: $0.80 SUGGESTED QTY:1 VIEW DETAILS
87.	Cube (22336734) Price: $5.60 SUGGESTED QTY:1 VIEW DETAILS
91.	End cover (851537) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
92.	End cover (851538) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
95.	Hex. socket screw (940326) Price: $1.60 SUGGESTED QTY:3 VIEW DETAILS
96.	Hexagon screw (955278) Price: $2.00 SUGGESTED QTY:2 VIEW DETAILS
97.	Zinc electrode (838929) Price: $15.50 SUGGESTED QTY:1 Replaced by plu... VIEW DETAILS
98.	Plug (838928) Price: $24.00 SUGGESTED QTY:1 Replaced by 1ea... VIEW DETAILS
99.	Oil dipstick (839351) Price: $108.00 SUGGESTED QTY:1 VIEW DETAILS
101.	Gasket (897682) Price: $5.00 SUGGESTED QTY:1 VIEW DETAILS
102.	Plug (981965) Price: $29.40 SUGGESTED QTY:1 VIEW DETAILS
102.	Gasket kit (876400) Price: $227.82 SUGGESTED QTY:1 VIEW DETAILS

96 Items

Grouped product items
Product Name	Qty
Reversing gear $99,999.00
Gear housing $99,999.00
Gear housing cover $1,463.00
Hex. socket screw $0.00
Gasket $14.00
Hollow screw $128.00
O-ring $2.30
Shim $17.60
Shim $16.50
Shim $16.50
Ball bearing $549.00
Gear set $8,764.05
Lock ring $12.10
Spacer ring $94.30
Wear washer $147.00
Needle roller assemb $20.20
Spacer ring $99,999.00
Shaft $2,379.00
Snap ring $0.80
Shim $2.30
Spring $5.80
Sliding sleeve $1,410.00
Snap ring $21.00
Shim $6.20
Spacer ring $99,999.00
Shim $7.10
Shim $6.80
Shim $4.90
Bearing sleeve $549.00
Shim $14.20
Shim $14.60
Nut $16.80
Nut $16.80
Nut $16.80
Inner ring $93.10
Cup $61.10
Gear set $99,999.00
Cup $117.00
Inner ring $117.00
Shim $6.90
Shim $6.60
Shim $4.90
O-ring $10.80
Bearing cover $99,999.00
Hexagon screw $1.10
Washer $1.10
Gasket $1.90
Plug $4.50
Bearing box $1.00
Spring pin $0.50
Roller bearing $185.00
Oil deflector $7.80
O-ring $3.50
Shim $13.60
Shim $14.20
Shim $13.60
Sealing ring $33.20
Snap ring $10.30
Washer $51.90
O-ring $9.40
Shim $14.60
Shim $14.20
Shim $14.20
Washer $119.00
Screw $99,999.00
Stub axle $1,304.00
Intermediate section $99,999.00
Flange screw $2.00
O-ring $5.50
Adjusting washer $99,999.00
Adjusting washer $99,999.00
Adjusting washer $14.90
Shim $10.40
Roller bearing $275.00
Shim $5.10
Spacer sleeve $99,999.00
Bearing housing $99,999.00
Flange screw $1.10
O-ring $20.80
Sealing ring $48.63
O-ring $39.40
Snap ring $3.20
O-ring $3.10
Slip clutch $99,999.00
Washer $16.50
Flange lock nut $121.00
Shift mechanism $958.00
Bearing housing $530.00
Eccentric piston $0.00
Dog $165.00
Spring $1.90
Hexagon screw $27.10
Shim $3.70
Sealing ring $36.40
Spring pin $0.30
Clevis pin $17.50
O-ring $2.10
Hexagon screw $1.00
Spring washer $0.40
Cable attachment $99,999.00
Washer $4.60
Bracket $6.80
Hexagon nut $2.40
Cross recessed screw $99,999.00
Intermediate lever $21.50
Hexagon nut $0.70
Toothed washer $0.40
Hexagon screw $0.80
Cube $5.60
Washer $1.00
Split pin $0.40
Oil cooler $99,999.00
End cover $99,999.00
End cover $99,999.00
O-ring $3.20
Gasket $8.60
Hex. socket screw $1.60
Hexagon screw $2.00
Anode $15.50
Zinc electrode $15.50
Plug $24.00
Plug $24.00
Oil dipstick $108.00
O-ring $4.30
Gasket $5.00
Gasket kit $227.82
Plug $29.40
