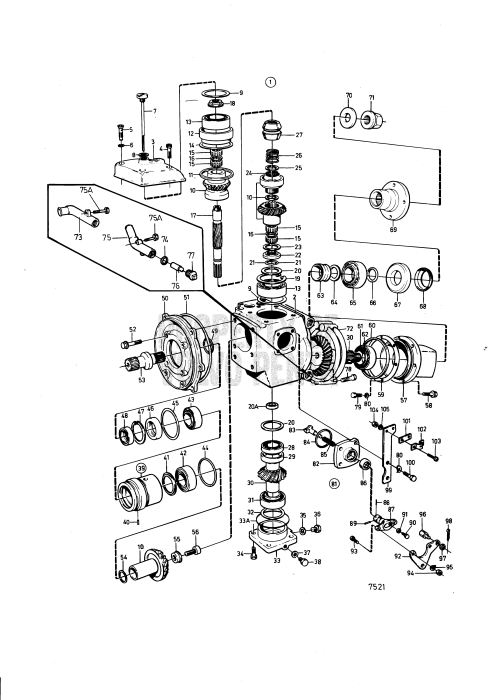

Reverse Gear MS3C: 852502


1.	Reversing gear (852502) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 Replaced by rev... VIEW DETAILS
2.	Gear housing (851673) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
3.	Gear housing cover (832667) Price: $1,463.00 SUGGESTED QTY:1 (832668) VIEW DETAILS
4.	Hex. socket screw (956585) This product has been discontinued Price: $0.00 SUGGESTED QTY:3 VIEW DETAILS
5.	Hollow screw (814643) Price: $128.00 SUGGESTED QTY:1 VIEW DETAILS
6.	O-ring (955989) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
7.	Oil dipstick (839351) Price: $108.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Gasket (897682) Price: $5.00 SUGGESTED QTY:1 VIEW DETAILS
10.	Gear set (839027) Price: $8,764.05 SUGGESTED QTY:1 VIEW DETAILS
11.	Gasket (832669) Price: $14.00 SUGGESTED QTY:1 VIEW DETAILS
12.	Bearing sleeve (832644) Price: $549.00 SUGGESTED QTY:1 VIEW DETAILS
13.	Ball bearing (853542) Price: $549.00 SUGGESTED QTY:2 (183729) VIEW DETAILS
14.	Shim (946179) Price: $14.20 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
14.	Shim (943870) Price: $14.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
15.	Needle roller assemb (3852390) Price: $20.20 SUGGESTED QTY:4 VIEW DETAILS
16.	Spacer ring (897308) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
17.	Spindle (852371) Price: $1,442.86 SUGGESTED QTY:1 VIEW DETAILS
18.	Nut (3852301) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,10mm VIEW DETAILS
18.	Nut (3852303) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,37mm VIEW DETAILS
18.	Nut (3852375) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,65mm VIEW DETAILS
19.	Snap ring (850433) Price: $21.00 SUGGESTED QTY:1 VIEW DETAILS
20.	Shim (42981) Price: $12.10 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
20.	Shim (42980) Price: $17.60 SUGGESTED QTY:1 TH=0.35mm VIEW DETAILS
20.	Shim (944522) Price: $14.60 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
21.	Lock ring (897312) Price: $12.10 SUGGESTED QTY:2 VIEW DETAILS
22.	Spacer ring (850422) Price: $94.30 SUGGESTED QTY:1 VIEW DETAILS
23.	Wear washer (852433) Price: $147.00 SUGGESTED QTY:1 (850243) VIEW DETAILS
24.	Snap ring (951077) Price: $0.80 SUGGESTED QTY:1 VIEW DETAILS
25.	Shim (26411) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
26.	Spring (3852296) Price: $5.80 SUGGESTED QTY:1 VIEW DETAILS
27.	Sliding sleeve, sliding sleeve (3858669) Price: $1,410.00 SUGGESTED QTY:1 PZ-22152 VIEW DETAILS
27.	Sliding sleeve (3858669) Price: $1,410.00 SUGGESTED QTY:1 (852548) VIEW DETAILS
28.	Inner ring (181301) Price: $93.10 SUGGESTED QTY:1 VIEW DETAILS
29.	Cup (181302) Price: $61.10 SUGGESTED QTY:1 VIEW DETAILS
30.	Drive gear set (852609) This product has been discontinued Price: $7.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Roller bearing (184649) Price: $160.00 SUGGESTED QTY:1 VIEW DETAILS
32.	Shim (941824) Price: $6.20 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
32.	Shim (967557) Price: $11.30 SUGGESTED QTY:1 TH=0.3mm VIEW DETAILS
32.	Shim (941825) Price: $13.60 SUGGESTED QTY:1 TH=0.4mm VIEW DETAILS
32.	Shim (941823) Price: $13.60 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
32.	Shim (967351) Price: $9.40 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
33.	Bearing cover (852373) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
33A.	O-ring (925257) Price: $4.40 SUGGESTED QTY:1 VIEW DETAILS
34.	Flange screw (946472) This product has been discontinued Price: $0.00 SUGGESTED QTY:4 VIEW DETAILS
35.	Gasket (947084) Price: $6.80 SUGGESTED QTY:1 (957175) VIEW DETAILS
37.	O-ring (955974) Price: $4.30 SUGGESTED QTY:1 VIEW DETAILS
38.	Plug (981965) Price: $29.40 SUGGESTED QTY:1 VIEW DETAILS
39.	Bearing box (875425) This product has been discontinued Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
41.	Oil deflector (897772) Price: $7.80 SUGGESTED QTY:1 Early type VIEW DETAILS
42.	Roller bearing (3850852) Price: $275.00 SUGGESTED QTY:1 VIEW DETAILS
43.	Roller bearing (183247) Price: $185.00 SUGGESTED QTY:1 VIEW DETAILS
45.	Shim (941826) Price: $13.60 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
45.	Shim (941827) Price: $13.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
45.	Shim (948230) Price: $14.20 SUGGESTED QTY:1 TH=0.35mm VIEW DETAILS
46.	Sealing ring (839253) Price: $33.20 SUGGESTED QTY:1 VIEW DETAILS
47.	Snap ring (914538) Price: $10.30 SUGGESTED QTY:1 VIEW DETAILS
48.	Washer (832675) Price: $51.90 SUGGESTED QTY:1 VIEW DETAILS
49.	O-ring (956000) Price: $9.40 SUGGESTED QTY:1 VIEW DETAILS
50.	Intermediate section (850276) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
51.	O-ring (925257) Price: $4.40 SUGGESTED QTY:1 VIEW DETAILS
52.	Flange screw (965185) Price: $2.00 SUGGESTED QTY:6 VIEW DETAILS
53.	Stub axle (850275) Price: $1,304.00 SUGGESTED QTY:1 VIEW DETAILS
54.	Shim (943871) Price: $14.20 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
54.	Shim (943872) Price: $14.20 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
54.	Shim (943873) Price: $14.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
55.	Washer (839013) Price: $119.00 SUGGESTED QTY:1 VIEW DETAILS
56.	Screw (851293) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 (945090), Obsol... VIEW DETAILS
57.	Bearing housing (851678) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
58.	Flange screw (946671) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
59.	Adjusting washer (851495) Price: $14.90 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
59.	Adjusting washer (851494) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
59.	Adjusting washer (851496) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
60.	O-ring (925267) Price: $5.50 SUGGESTED QTY:1 VIEW DETAILS
61.	Cup (183328) Price: $83.60 SUGGESTED QTY:1 VIEW DETAILS
62.	Inner ring (183327) Price: $152.00 SUGGESTED QTY:1 VIEW DETAILS
63.	Pretensioning sleeve (852696) Price: $126.00 SUGGESTED QTY:1 VIEW DETAILS
64.	Shim (852184) Price: $13.80 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
65.	Roller bearing (3850852) Price: $275.00 SUGGESTED QTY:1 VIEW DETAILS
67.	Sealing ring (853757) Price: $80.60 SUGGESTED QTY:1 (959026) VIEW DETAILS
68.	Sealing ring (944530) Price: $25.10 SUGGESTED QTY:1 VIEW DETAILS
69.	Propeller shaft flan (853481) Price: $1,738.00 SUGGESTED QTY:1 (852368) VIEW DETAILS
70.	Washer (850471) Price: $16.50 SUGGESTED QTY:1 VIEW DETAILS
71.	Flange lock nut (947855) Price: $121.00 SUGGESTED QTY:1 VIEW DETAILS
72.	Oil cooler (851786) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
73.	Connection pipe (852007) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
74.	O-ring (960169) Price: $6.30 SUGGESTED QTY:4 VIEW DETAILS
75.	End plate (851730) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
75A.	Hex. socket screw (959207) Price: $2.20 SUGGESTED QTY:4 VIEW DETAILS
78.	Hex. socket screw (959207) Price: $2.20 SUGGESTED QTY:4 VIEW DETAILS
79.	Hex. socket screw (942000) Price: $1.20 SUGGESTED QTY:2 VIEW DETAILS
81.	Shift mechanism (3855787) Price: $958.00 SUGGESTED QTY:1 VIEW DETAILS
82.	Bearing housing (3855785) Price: $530.00 SUGGESTED QTY:1 VIEW DETAILS
83.	Dog (3856502) Price: $165.00 SUGGESTED QTY:1 VIEW DETAILS
84.	O-ring (925093) Price: $2.10 SUGGESTED QTY:1 VIEW DETAILS
85.	Spring (814184) Price: $1.90 SUGGESTED QTY:1 VIEW DETAILS
86.	Sealing ring (853868) Price: $36.40 SUGGESTED QTY:1 (941866) VIEW DETAILS
87.	Eccentric piston (897816) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
88.	Spring pin (951924) Price: $0.30 SUGGESTED QTY:1 VIEW DETAILS
89.	Clevis pin (942871) Price: $17.50 SUGGESTED QTY:1 VIEW DETAILS
90.	Hexagon screw (897711) Price: $27.10 SUGGESTED QTY:1 VIEW DETAILS
91.	Shim (897871) Price: $3.70 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
92.	Intermediate lever (852363) Price: $21.50 SUGGESTED QTY:1 (834021) VIEW DETAILS
93.	Hexagon screw (955271) Price: $0.80 SUGGESTED QTY:1 VIEW DETAILS
95.	Toothed washer (955948) Price: $0.40 SUGGESTED QTY:2 VIEW DETAILS
96.	Cube (22336734) Price: $5.60 SUGGESTED QTY:1 VIEW DETAILS
99.	Cable attachment (850350) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
100.	Hexagon screw (955273) Price: $1.00 SUGGESTED QTY:4 VIEW DETAILS
103.	Hexagon screw (969407) Price: $1.30 SUGGESTED QTY:2 (950022) VIEW DETAILS
104.	Lock nut (946577) Price: $1.00 SUGGESTED QTY:2 (940092) VIEW DETAILS
105.	Gasket kit (876400) Price: $227.82 SUGGESTED QTY:1 VIEW DETAILS

110 Items

Grouped product items
Product Name	Qty
Reversing gear $0.00
Gear housing $99,999.00
Gear housing cover $1,463.00
Hex. socket screw $0.00
Hollow screw $128.00
O-ring $2.30
Oil dipstick $108.00
Gasket $5.00
Shim $16.50
Shim $17.60
Shim $16.50
Gear set $8,764.05
Gasket $14.00
Bearing sleeve $549.00
Ball bearing $549.00
Shim $14.60
Shim $14.20
Needle roller assemb $20.20
Spacer ring $99,999.00
Spindle $1,442.86
Nut $16.80
Nut $16.80
Nut $16.80
Snap ring $21.00
Shim $14.60
Shim $12.10
Shim $17.60
Lock ring $12.10
Spacer ring $94.30
Wear washer $147.00
Snap ring $0.80
Shim $2.30
Spring $5.80
Sliding sleeve, sliding sleeve $1,410.00
Sliding sleeve $1,410.00
Inner ring $93.10
Cup $61.10
Drive gear set $7.00
Roller bearing $160.00
Shim $13.60
Shim $11.30
Shim $9.40
Shim $13.60
Shim $24.50
Shim $6.20
Bearing cover $99,999.00
Flange screw $0.00
Gasket $6.80
Plug $5.90
O-ring $4.30
Plug $29.40
Bearing box $1.00
Spring pin $0.50
Oil deflector $7.80
Roller bearing $185.00
O-ring $3.50
Shim $13.60
Shim $14.20
Shim $13.60
Sealing ring $33.20
Snap ring $10.30
Washer $51.90
O-ring $9.40
Intermediate section $99,999.00
O-ring $4.40
Flange screw $2.00
Stub axle $1,304.00
Shim $14.20
Shim $14.20
Shim $14.60
Washer $119.00
Screw $99,999.00
Bearing housing $99,999.00
Flange screw $1.10
Adjusting washer $14.90
Adjusting washer $99,999.00
Adjusting washer $99,999.00
O-ring $5.50
Cup $83.60
Inner ring $152.00
Pretensioning sleeve $126.00
Shim $13.80
Roller bearing $275.00
O-ring $1.90
Sealing ring $80.60
Sealing ring $25.10
Propeller shaft flan $1,738.00
Washer $16.50
Flange lock nut $121.00
Oil cooler $99,999.00
Connection pipe $99,999.00
O-ring $6.30
End plate $99,999.00
Anode $15.50
Plug $24.00
Hex. socket screw $2.20
Hex. socket screw $1.20
Spring washer $0.40
Shift mechanism $958.00
Bearing housing $530.00
Dog $165.00
O-ring $2.10
Spring $1.90
Sealing ring $36.40
Eccentric piston $0.00
Spring pin $0.30
Clevis pin $17.50
Hexagon screw $27.10
Shim $3.70
Intermediate lever $21.50
Hexagon screw $0.80
Hexagon nut $0.70
Toothed washer $0.40
Cube $5.60
Washer $1.00
Split pin $0.40
Cable attachment $99,999.00
Hexagon screw $1.00
Washer $4.60
Bracket $6.80
Hexagon screw $1.30
Lock nut $1.00
Gasket kit $227.82
Washer $0.40
