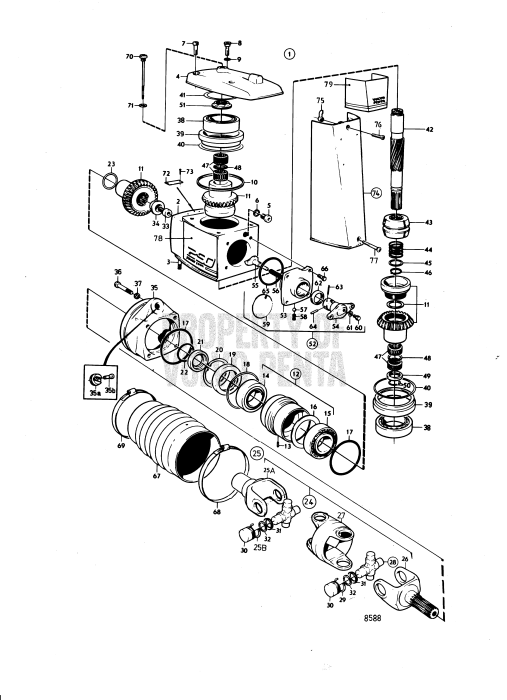

Upper Gear Unit: 851340, DRIVE 290


1.	Upper gear, upper gear unit (854314) Price: $99,999.00 SUGGESTED QTY:1 Included in AQ ... VIEW DETAILS
2.	Housing (832674) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
4.	Gear housing cover (832667) Price: $1,463.00 SUGGESTED QTY:1 (832668) VIEW DETAILS
5.	Plug (981965) Price: $29.40 SUGGESTED QTY:1 VIEW DETAILS
6.	Gasket (897682) Price: $5.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Hollow screw (814643) Price: $128.00 SUGGESTED QTY:1 VIEW DETAILS
9.	O-ring (955989) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
10.	Gasket (832669) Price: $14.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Gear set (839027) Price: $8,764.05 SUGGESTED QTY:1 VIEW DETAILS
12.	Bearing box (875425) This product has been discontinued Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
14.	Roller bearing (183247) Price: $185.00 SUGGESTED QTY:1 VIEW DETAILS
15.	Roller bearing (3850852) Price: $275.00 SUGGESTED QTY:1 VIEW DETAILS
16.	Oil deflector (897772) Price: $7.80 SUGGESTED QTY:1 Early type VIEW DETAILS
18.	Shim (941827) Price: $13.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
18.	Shim (948230) Price: $14.20 SUGGESTED QTY:1 TH=0.35mm VIEW DETAILS
18.	Shim (941826) Price: $13.60 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
19.	Sealing ring (839253) Price: $33.20 SUGGESTED QTY:1 VIEW DETAILS
20.	Snap ring (914538) Price: $10.30 SUGGESTED QTY:1 VIEW DETAILS
21.	Washer (832675) Price: $51.90 SUGGESTED QTY:1 VIEW DETAILS
22.	O-ring (956000) Price: $9.40 SUGGESTED QTY:1 VIEW DETAILS
23.	Shim (943873) Price: $14.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
23.	Shim (943871) Price: $14.20 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
23.	Shim (943872) Price: $14.20 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
24.	Joint (3860231) Price: $712.56 SUGGESTED QTY:1 VIEW DETAILS
25.	Joint fork kit (3860231) Price: $712.56 SUGGESTED QTY:1 VIEW DETAILS
25A.	Fork (3860231) Price: $712.56 SUGGESTED QTY:1 Repl by 853560 VIEW DETAILS
25B.	Lock ring (853331) Price: $4.37 SUGGESTED QTY:2 For 853255., Ob... VIEW DETAILS
26.	Fork (854302) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
27.	Intermediate section (897706) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
28.	Spider (853255) Price: $108.00 SUGGESTED QTY:2 PZ28159837- VIEW DETAILS
28.	Cross piece (853255) Price: $108.00 SUGGESTED QTY:2 Replaced by 853... VIEW DETAILS
29.	Lock ring (897776) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:4 For 897707, Obs... VIEW DETAILS
29.	Lock ring (853331) Price: $4.37 SUGGESTED QTY:2 For 853255., Ob... VIEW DETAILS
33.	Screw (851293) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 (945090), Obsol... VIEW DETAILS
34.	Washer (839013) Price: $119.00 SUGGESTED QTY:1 VIEW DETAILS
35.	Tensioning ring (851265) Price: $1,010.00 SUGGESTED QTY:1 Included in AQ ... VIEW DETAILS
36.	Hex. socket screw (956590) Price: $14.20 SUGGESTED QTY:4 VIEW DETAILS
37.	Washer (942598) Price: $3.20 SUGGESTED QTY:4 VIEW DETAILS
38.	Ball bearing (853542) Price: $549.00 SUGGESTED QTY:2 (183729) VIEW DETAILS
39.	Bearing sleeve (832644) Price: $549.00 SUGGESTED QTY:1 VIEW DETAILS
40.	Shim (943869) Price: $14.20 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
40.	Shim (946179) Price: $14.20 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
40.	Shim (943870) Price: $14.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
42.	Shaft (897385) Price: $2,379.00 SUGGESTED QTY:1 VIEW DETAILS
43.	Sliding sleeve (3855783) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
44.	Spring (3852296) Price: $5.80 SUGGESTED QTY:1 VIEW DETAILS
45.	Shim (26411) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
46.	Snap ring (951077) Price: $0.80 SUGGESTED QTY:1 VIEW DETAILS
47.	Needle roller assemb (3852390) Price: $20.20 SUGGESTED QTY:4 VIEW DETAILS
48.	Spacer ring (897308) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
49.	Spacer ring (897313) Price: $136.00 SUGGESTED QTY:1 VIEW DETAILS
50.	Lock ring (897312) Price: $12.10 SUGGESTED QTY:2 VIEW DETAILS
51.	Nut (3852375) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,65mm VIEW DETAILS
51.	Nut (3852301) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,10mm VIEW DETAILS
51.	Nut (3852303) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,37mm VIEW DETAILS
52.	Shift mechanism (3855787) Price: $958.00 SUGGESTED QTY:1 VIEW DETAILS
53.	Bearing housing (3855785) Price: $530.00 SUGGESTED QTY:1 VIEW DETAILS
54.	Eccentric piston (897816) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
55.	Dog (3856502) Price: $165.00 SUGGESTED QTY:1 VIEW DETAILS
56.	Spring (814184) Price: $1.90 SUGGESTED QTY:1 VIEW DETAILS
57.	Ball (60309) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 PZ-2829528, Obs... VIEW DETAILS
58.	Spring (839136) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 PZ-2829528, Obs... VIEW DETAILS
59.	Locking wire (941338) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 PZ-2829528 L=30... VIEW DETAILS
60.	Hexagon screw (897711) Price: $27.10 SUGGESTED QTY:1 VIEW DETAILS
61.	Shim (897871) Price: $3.70 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
62.	Sealing ring (853868) Price: $36.40 SUGGESTED QTY:1 (941866) VIEW DETAILS
63.	Spring pin (951924) Price: $0.30 SUGGESTED QTY:1 VIEW DETAILS
64.	Clevis pin (942871) Price: $17.50 SUGGESTED QTY:1 VIEW DETAILS
65.	O-ring (925093) Price: $2.10 SUGGESTED QTY:1 VIEW DETAILS
66.	Hexagon screw (940169) Price: $7.60 SUGGESTED QTY:4 VIEW DETAILS
67.	Bellows kit (876294) Price: $100.30 SUGGESTED QTY:1 (875256) VIEW DETAILS
68.	Hose clamp (853013) Price: $20.10 SUGGESTED QTY:1 (961677) VIEW DETAILS
69.	Hose clamp (22274887) Price: $12.10 SUGGESTED QTY:2 (961676) VIEW DETAILS
70.	Oil dipstick (839351) Price: $108.00 SUGGESTED QTY:1 VIEW DETAILS
71.	O-ring (955974) Price: $4.30 SUGGESTED QTY:1 VIEW DETAILS
72.	Sign (814687) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
74.	Protecting cover (832570) Price: $700.00 SUGGESTED QTY:1 VIEW DETAILS
75.	Latch (897873) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
76.	Cross recessed screw (943218) Price: $25.10 SUGGESTED QTY:1 VIEW DETAILS
77.	Cross recessed screw (941816) Price: $13.80 SUGGESTED QTY:1 VIEW DETAILS
78.	Sign (853031) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Included in com... VIEW DETAILS
78.	Sign (853030) Price: $57.20 SUGGESTED QTY:1 Included in com... VIEW DETAILS
79.	Sign (853029) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Included in com... VIEW DETAILS

83 Items

Grouped product items
Product Name	Qty
Upper gear, upper gear unit $99,999.00
Housing $99,999.00
Gear housing cover $1,463.00
Plug $29.40
Gasket $5.00
Hollow screw $128.00
O-ring $2.30
Gasket $14.00
Gear set $8,764.05
Bearing box $1.00
Spring pin $0.50
Roller bearing $185.00
Roller bearing $275.00
Oil deflector $7.80
O-ring $3.50
Shim $14.20
Shim $13.60
Shim $13.60
Sealing ring $33.20
Snap ring $10.30
Washer $51.90
O-ring $9.40
Shim $14.20
Shim $14.60
Shim $14.20
Joint $712.56
Joint fork kit $712.56
Fork $712.56
Fork $0.00
Intermediate section $0.00
Cross piece $108.00
Spider $108.00
Lock ring $4.37
Lock ring $99,999.00
Screw $99,999.00
Washer $119.00
Tensioning ring $1,010.00
Pivot pin $247.00
Hex. socket screw $21.20
Hex. socket screw $14.20
Washer $3.20
Ball bearing $549.00
Bearing sleeve $549.00
Shim $14.20
Shim $14.60
Shim $14.20
Shim $17.60
Shim $16.50
Shim $16.50
Shim $24.50
Shaft $2,379.00
Sliding sleeve $0.00
Spring $5.80
Shim $2.30
Snap ring $0.80
Needle roller assemb $20.20
Spacer ring $99,999.00
Spacer ring $136.00
Lock ring $12.10
Nut $16.80
Nut $16.80
Nut $16.80
Shift mechanism $958.00
Bearing housing $530.00
Eccentric piston $0.00
Dog $165.00
Spring $1.90
Ball $99,999.00
Spring $99,999.00
Locking wire $99,999.00
Hexagon screw $27.10
Shim $3.70
Sealing ring $36.40
Spring pin $0.30
Clevis pin $17.50
O-ring $2.10
Hexagon screw $7.60
Bellows kit $100.30
Hose clamp $20.10
Hose clamp $12.10
Oil dipstick $108.00
O-ring $4.30
Sign $99,999.00
Drive screw $4.50
Protecting cover $700.00
Latch $99,999.00
Cross recessed screw $25.10
Cross recessed screw $13.80
Sign $99,999.00
Sign $57.20
Sign $99,999.00
