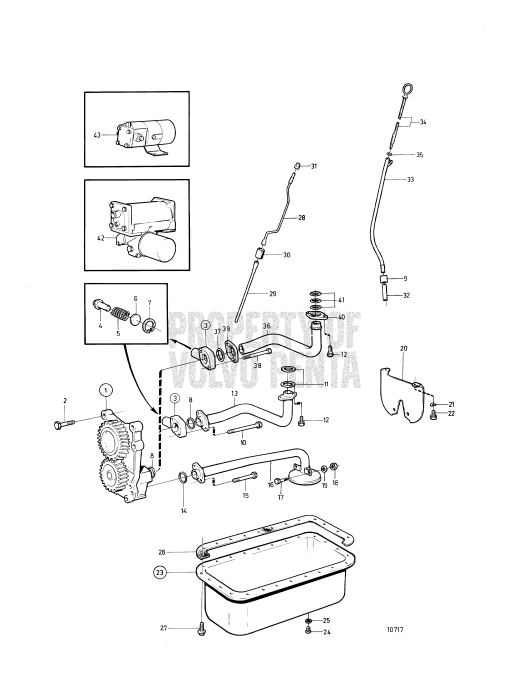

Lubricating System


1.	Oil pump, oil pump (861321) Price: $295.00 SUGGESTED QTY:1 Repl by 860718 VIEW DETAILS
1.	Oil Pump: 1544125 (19123) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
1.	Oil pump (861321) Price: $295.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Flange screw (948217) Price: $1.00 SUGGESTED QTY:6 VIEW DETAILS
3.	Reduction valve (3581308) Price: $441.00 SUGGESTED QTY:1 Repl by 860790 VIEW DETAILS
3.	Reduction valve (3581308) Price: $441.00 SUGGESTED QTY:1 VIEW DETAILS
10.	Flange screw (994389) Price: $29.40 SUGGESTED QTY:1 L=85mm VIEW DETAILS
11.	Sealing ring (471956) Price: $15.50 SUGGESTED QTY:2 VIEW DETAILS
12.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:6 VIEW DETAILS
13.	Delivery pipe (860821) Price: $278.80 SUGGESTED QTY:1 Replaced by 1ea... VIEW DETAILS
15.	Flange screw (965180) Price: $3.90 SUGGESTED QTY:3 VIEW DETAILS
17.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:6 VIEW DETAILS
18.	Flange lock nut (948645) Price: $2.00 SUGGESTED QTY:2 VIEW DETAILS
19.	Washer (976944) Price: $0.10 SUGGESTED QTY:2 VIEW DETAILS
22.	Flange screw (944926) Price: $4.10 SUGGESTED QTY:2 VIEW DETAILS
23.	Sump (3583870) Price: $603.00 SUGGESTED QTY:1 VIEW DETAILS
26.	Gasket (861250) Price: $165.00 SUGGESTED QTY:1 (1544124) VIEW DETAILS
27.	Flange screw (946440) Price: $1.00 SUGGESTED QTY:2 VIEW DETAILS
28.	Oil scavenging pipe (861099) Price: $85.90 SUGGESTED QTY:1 VIEW DETAILS
33.	Tube (946834) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
34.	Oil dipstick (946834) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
38.	Flange screw (965183) Price: $1.60 SUGGESTED QTY:2 VIEW DETAILS
42.	Oil Filter and Installation Components (19126) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 AD31A, AQAD31A VIEW DETAILS

23 Items

Grouped product items
Product Name	Qty
Oil pump, oil pump $295.00
Oil pump $295.00
Oil Pump: 1544125 Starting at $0.70
Flange screw $1.00
Reduction valve $441.00
Reduction valve $441.00
Reduction valve $53.80
Spring $9.20
Disc $7.30
Snap ring $0.30
Sealing ring $7.30
Flange screw $29.40
Sealing ring $15.50
Delivery pipe $278.80
O-ring $4.70
Flange screw $3.90
Suction pipe $757.00
Flange screw $1.10
Flange lock nut $2.00
Washer $0.10
Baffle plate $66.10
Disc spring $1.90
Flange screw $4.10
Sump $603.00
Plug $25.40
Gasket $3.70
Gasket $165.00
Flange screw $1.00
Oil scavenging pipe $85.90
Tube $55.10
Rubber hose $23.10
Plug $1.00
Tube $45.20
Tube $0.00
Oil dipstick $0.00
O-ring $3.30
Delivery pipe $278.80
Sealing ring $34.70
Flange screw $1.60
Flange $24.40
Flange $6.90
Pulley $363.00
Oil Filter and Installation Components Starting at $0.40
