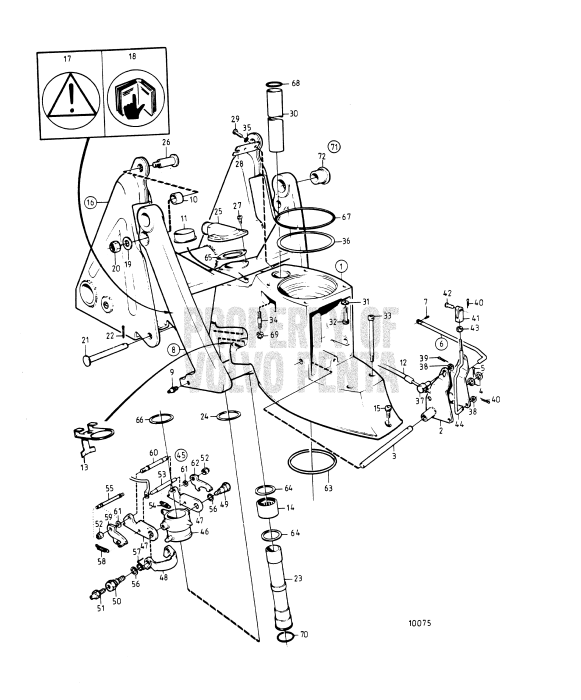

Intermediate Housing: SPA-1
|
1. |
Intermediate housing (854937)
Price: $3,265.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Gear yoke (897829)
Price: $430.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Shaft (897447)
Price: $64.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Washer (941670)
Price: $0.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
5. |
Split pin (17253)
Price: $4.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
6. |
Reverse locking rod (851412)
Price: $165.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
7. |
Spring pin (967556)
Price: $7.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Suspension fork (854100)
Price: $1,982.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Lubricating nipple (940194)
Price: $16.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Bushing (852912)
Price: $69.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
11. |
Bearing bushing (853062)
Price: $86.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Guide washer (853967)
Price: $57.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Needle roller bearin (183391)
Price: $59.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
Hex. socket screw (941809)
Price: $12.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
Cylinder anchorage (854550)
Price: $2,438.00SUGGESTED QTY:1
(854034)
VIEW DETAILS
|
|
|
17. |
Decal (3817024)
Price: $8.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Decal (853716)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
19. |
Washer (853071)
Price: $6.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
20. |
Lock nut (946672)
Price: $11.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
21. |
Clevis pin (853309)
Price: $62.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
22. |
Split pin (967707)
Price: $5.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
Steering knuckle (814386)
Price: $1,096.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Washer (897696)
Price: $0.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
25. |
Hose connection (854031)
Price: $76.30SUGGESTED QTY:1
Gray
VIEW DETAILS
|
|
|
26. |
Shoulder screw (853308)
Price: $108.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Hex. socket screw (941813)
Price: $10.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
28. |
Cable attachment (853078)
Price: $44.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
29. |
Hexagon screw (940168)
Price: $6.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
30. |
Tube (897644)
Price: $265.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
31. |
Washer (853095)
Price: $6.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
32. |
Hex. socket screw (959456)
Price: $13.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
33. |
Hex. socket screw (941808)
Price: $30.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
35. |
Washer (940191)
Price: $8.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
36. |
Shim (941826)
Price: $13.60SUGGESTED QTY:1
TH=0,05mm
VIEW DETAILS
|
|
|
36. |
Shim (941827)
Price: $13.60SUGGESTED QTY:1
TH=0.2mm
VIEW DETAILS
|
|
|
36. |
Shim (948230)
Price: $14.20SUGGESTED QTY:1
TH=0.35mm
VIEW DETAILS
|
|
|
36. |
Shim (943868)
Price: $16.50SUGGESTED QTY:1
TH=0.4mm
VIEW DETAILS
|
|
|
37. |
Cube (22336734)
Price: $5.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
38. |
Washer (940191)
Price: $8.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
39. |
Split pin (17276)
Price: $3.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
40. |
Split pin (17253)
Price: $4.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
41. |
Fork (813954)
Price: $92.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Split pin (192662)
Price: $85.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
43. |
Hexagon nut (940190)
Price: $2.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
44. |
Control rod (897448)
Price: $172.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
45. |
Latch (854035)
Price: $1,632.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
46. |
Bearing sleeve (851402)
Price: $312.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
47. |
Latch (814391)
Price: $173.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
48. |
Lock brace (851403)
Price: $399.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
49. |
Spindle (851423)
Price: $79.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
50. |
Spindle (854344)
Price: $136.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
51. |
Lubricating nipple (940194)
Price: $16.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
52. |
Lock nut (943197)
Price: $23.90SUGGESTED QTY:2
Included in rep...
VIEW DETAILS
|
|
|
53. |
Stop arm (851424)
Price: $13.00SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
54. |
Spring (832534)
Price: $22.00SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
55. |
Shaft (814399)
Price: $124.00SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
56. |
Washer (943194)
Price: $4.80SUGGESTED QTY:2
Included in rep...
VIEW DETAILS
|
|
|
57. |
Spring (814396)
Price: $24.40SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
58. |
Spring (814332)
Price: $27.60SUGGESTED QTY:2
Included in rep...
VIEW DETAILS
|
|
|
59. |
Spring hook (814392)
Price: $169.00SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
60. |
Shaft (814419)
Price: $152.00SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
61. |
Spacer washer (814422)
Price: $5.60SUGGESTED QTY:2
Included in rep...
VIEW DETAILS
|
|
|
62. |
Spring hook (814393)
Price: $182.00SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
63. |
O-ring (925256)
Price: $3.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
64. |
Sealing ring (181620)
Price: $33.80SUGGESTED QTY:2
Included in rep...
VIEW DETAILS
|
|
|
65. |
Sealing (814356)
Price: $19.00SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
66. |
Plastic washer (814390)
Price: $13.40SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
67. |
O-ring (925259)
Price: $5.20SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
68. |
O-ring (125017)
Price: $12.70SUGGESTED QTY:2
Included in rep...
VIEW DETAILS
|
|
|
69. |
Lock nut (941885)
Price: $19.10SUGGESTED QTY:2
Included in rep...
VIEW DETAILS
|
|
|
70. |
O-ring (941820)
Price: $9.00SUGGESTED QTY:1
Included in rep...
VIEW DETAILS
|
|
|
71. |
Bushing kit (853223)
Price: $11.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
72. |
Bushing, bushing (853223)
Price: $11.20SUGGESTED QTY:2
Included in rep...
VIEW DETAILS
|
|
|
72. |
Repair kit, astern lever (876265)
Price: $642.00SUGGESTED QTY:1
(876075)
VIEW DETAILS
|
74 Items
