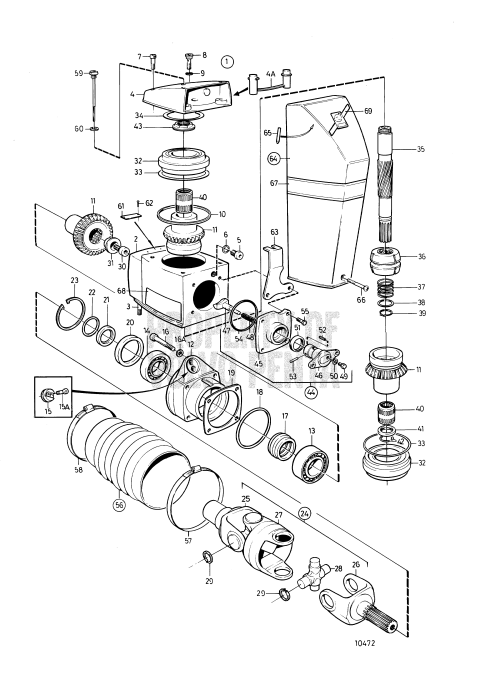

Upper Gear Unit: DRIVE DP-A1


1.	Gear (3858785) Price: $10,400.00 SUGGESTED QTY:1 Also available ... VIEW DETAILS
2.	Gear housing (23838473) Price: $1,558.00 SUGGESTED QTY:1 Gray VIEW DETAILS
3.	Stud (977241) Price: $99.30 SUGGESTED QTY:2 VIEW DETAILS
4.	Cardboard tube (854677) Price: $399.00 SUGGESTED QTY:1 VIEW DETAILS
4A.	Plastic plug (854198) Price: $6.30 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
5.	Plug (981965) Price: $29.40 SUGGESTED QTY:1 VIEW DETAILS
6.	Gasket (897682) Price: $5.00 SUGGESTED QTY:1 VIEW DETAILS
7.	Hex. socket screw (941807) Price: $21.20 SUGGESTED QTY:3 VIEW DETAILS
8.	Hollow screw (814643) Price: $128.00 SUGGESTED QTY:1 VIEW DETAILS
9.	O-ring (955989) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
10.	Gasket (832669) Price: $14.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Gear set (853669) Price: $4,800.00 SUGGESTED QTY:1 VIEW DETAILS
12.	Bearing box (23838487) Price: $858.00 SUGGESTED QTY:1 Gray VIEW DETAILS
13.	Roller bearing (3850852) Price: $275.00 SUGGESTED QTY:1 (183668) VIEW DETAILS
14.	Roller bearing (183247) Price: $185.00 SUGGESTED QTY:1 VIEW DETAILS
15.	Pivot pin (852705) Price: $247.00 SUGGESTED QTY:1 VIEW DETAILS
15A.	Hex. socket screw (941807) Price: $21.20 SUGGESTED QTY:3 VIEW DETAILS
16.	Hex. socket screw (984068) Price: $6.10 SUGGESTED QTY:4 VIEW DETAILS
16A.	Washer (942598) Price: $3.20 SUGGESTED QTY:4 VIEW DETAILS
17.	Pretensioning sleeve (853484) Price: $46.60 SUGGESTED QTY:1 VIEW DETAILS
18.	O-ring (967344) Price: $20.80 SUGGESTED QTY:1 VIEW DETAILS
19.	Shim (853034) Price: $23.10 SUGGESTED QTY:1 TH=0,10mm VIEW DETAILS
19.	Shim (853035) Price: $26.50 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
19.	Shim (853036) Price: $30.80 SUGGESTED QTY:1 TH=0.35mm VIEW DETAILS
20.	Sealing ring (839253) Price: $33.20 SUGGESTED QTY:1 VIEW DETAILS
21.	Washer (832675) Price: $51.90 SUGGESTED QTY:1 VIEW DETAILS
22.	O-ring (956000) Price: $9.40 SUGGESTED QTY:1 VIEW DETAILS
23.	Snap ring (914538) Price: $10.30 SUGGESTED QTY:1 VIEW DETAILS
24.	Universal joint (3860230) Price: $1,047.00 SUGGESTED QTY:1 VIEW DETAILS
25.	Fork (3860230) Price: $1,047.00 SUGGESTED QTY:1 VIEW DETAILS
26.	Fork (854617) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
27.	Intermediate section (3858283) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
28.	Spider (3860232) Price: $261.00 SUGGESTED QTY:2 VIEW DETAILS
29.	Lock ring (24383) Price: $13.30 SUGGESTED QTY:8 VIEW DETAILS
30.	Screw (3852309) Price: $35.00 SUGGESTED QTY:1 (851293) VIEW DETAILS
31.	Washer (853026) Price: $50.90 SUGGESTED QTY:1 VIEW DETAILS
32.	Ball bearing (3857176) Price: $323.00 SUGGESTED QTY:1 VIEW DETAILS
33.	Shim (943869) Price: $14.20 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
33.	Shim (946179) Price: $14.20 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
33.	Shim (943870) Price: $14.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
34.	Shim (941826) Price: $13.60 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
34.	Shim (941827) Price: $13.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
34.	Shim (948230) Price: $14.20 SUGGESTED QTY:1 TH=0.35mm VIEW DETAILS
35.	Shaft (897385) Price: $2,379.00 SUGGESTED QTY:1 VIEW DETAILS
36.	Sliding sleeve (3855783) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
37.	Spring (3852296) Price: $5.80 SUGGESTED QTY:1 VIEW DETAILS
38.	Shim (26411) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
39.	Snap ring (951077) Price: $0.80 SUGGESTED QTY:1 VIEW DETAILS
40.	Needle bearing (3852390) Price: $20.20 SUGGESTED QTY:2 VIEW DETAILS
41.	Spacer ring (897313) Price: $136.00 SUGGESTED QTY:1 VIEW DETAILS
42.	Lock ring (897312) Price: $12.10 SUGGESTED QTY:2 VIEW DETAILS
43.	Nut (3852375) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,65mm VIEW DETAILS
43.	Nut (3852301) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,00mm VIEW DETAILS
43.	Nut (3852303) Price: $16.80 SUGGESTED QTY:1 Alt TH=2,37mm VIEW DETAILS
44.	Shift mechanism (3855787) Price: $958.00 SUGGESTED QTY:1 VIEW DETAILS
45.	Bearing housing (3855785) Price: $530.00 SUGGESTED QTY:1 VIEW DETAILS
46.	Eccentric piston (897816) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
47.	Dog (3856502) Price: $165.00 SUGGESTED QTY:1 VIEW DETAILS
48.	Spring (814184) Price: $1.90 SUGGESTED QTY:1 VIEW DETAILS
49.	Hexagon screw (897711) Price: $27.10 SUGGESTED QTY:1 VIEW DETAILS
50.	Shim (897871) Price: $3.70 SUGGESTED QTY:1 TH=0.20mm VIEW DETAILS
51.	Sealing ring (853868) Price: $36.40 SUGGESTED QTY:1 VIEW DETAILS
52.	Spring pin (951924) Price: $0.30 SUGGESTED QTY:1 VIEW DETAILS
53.	Clevis pin (942871) Price: $17.50 SUGGESTED QTY:1 VIEW DETAILS
54.	O-ring (925093) Price: $2.10 SUGGESTED QTY:1 VIEW DETAILS
55.	Hexagon screw (940169) Price: $7.60 SUGGESTED QTY:4 VIEW DETAILS
56.	Bellows kit (876294) Price: $100.30 SUGGESTED QTY:1 VIEW DETAILS
57.	Hose clamp (853013) Price: $20.10 SUGGESTED QTY:1 VIEW DETAILS
58.	Hose clamp (22274887) Price: $12.10 SUGGESTED QTY:2 VIEW DETAILS
59.	Oil dipstick (839351) Price: $108.00 SUGGESTED QTY:1 VIEW DETAILS
60.	O-ring (955974) Price: $4.30 SUGGESTED QTY:1 VIEW DETAILS
61.	Type plate (3817315) Price: $7.10 SUGGESTED QTY:1 VIEW DETAILS
62.	Drive screw (804269) Price: $4.50 SUGGESTED QTY:2 VIEW DETAILS
63.	Anchorage (854179) Price: $53.00 SUGGESTED QTY:1 VIEW DETAILS
64.	Cover (854605) Price: $581.00 SUGGESTED QTY:1 Included in com... VIEW DETAILS
65.	Locating pin (854180) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Included in com... VIEW DETAILS
66.	Screw (854661) Price: $13.20 SUGGESTED QTY:1 Included in com... VIEW DETAILS
67.	Sign (854137) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 Included in com... VIEW DETAILS
68.	Sign (876636) Price: $73.10 SUGGESTED QTY:1 Included in com... VIEW DETAILS
68.	Sign (876636) Price: $73.10 SUGGESTED QTY:1 Included in com... VIEW DETAILS
69.	Sign (854144) Price: $33.20 SUGGESTED QTY:1 Included in com... VIEW DETAILS
