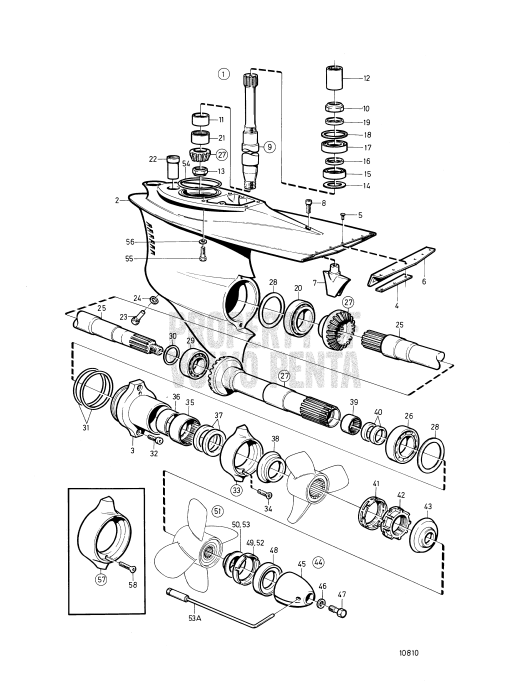

Lower Gear Unit: DRIVE DP-A1


1.	Lower gear (872765) Price: $14,100.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Housing (3855629) Price: $7,770.00 SUGGESTED QTY:1 Gray VIEW DETAILS
3.	Bearing housing (23822625) Price: $930.00 SUGGESTED QTY:1 Gray VIEW DETAILS
4.	Attaching plate (852643) Price: $30.80 SUGGESTED QTY:2 VIEW DETAILS
5.	Blind rivet (948338) Price: $7.70 SUGGESTED QTY:6 VIEW DETAILS
6.	Check valve (852644) Price: $76.30 SUGGESTED QTY:1 VIEW DETAILS
7.	Fin (854054) Price: $194.00 SUGGESTED QTY:1 Gray VIEW DETAILS
8.	Hex. socket screw (941817) Price: $7.70 SUGGESTED QTY:1 VIEW DETAILS
9.	Countershaft (854611) Price: $1,283.00 SUGGESTED QTY:1 VIEW DETAILS
10.	Round nut (969071) Price: $18.70 SUGGESTED QTY:1 For 854611 VIEW DETAILS
11.	Inner ring (184682) Price: $29.40 SUGGESTED QTY:1 For 854611 VIEW DETAILS
12.	Splined sleeve (3852268) Price: $92.60 SUGGESTED QTY:1 For 854611 VIEW DETAILS
13.	Nut (852212) Price: $57.20 SUGGESTED QTY:1 VIEW DETAILS
14.	Shim (941832) Price: $11.70 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
14.	Shim (941833) Price: $10.00 SUGGESTED QTY:1 TH=0.20mm VIEW DETAILS
15.	Ball bearing (183374) Price: $81.50 SUGGESTED QTY:1 VIEW DETAILS
16.	Shim (944970) Price: $9.80 SUGGESTED QTY:1 TH=1,60mm VIEW DETAILS
17.	Roller bearing (11072) Price: $62.40 SUGGESTED QTY:1 VIEW DETAILS
18.	Shim (42981) Price: $12.10 SUGGESTED QTY:1 TH=0.1mm VIEW DETAILS
18.	Shim (968057) Price: $9.80 SUGGESTED QTY:1 TH=0.20mm VIEW DETAILS
18.	Shim (42980) Price: $17.60 SUGGESTED QTY:1 TH=0.2mm VIEW DETAILS
18.	Shim (944522) Price: $14.60 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
19.	Tensioning ring (897387) Price: $11.90 SUGGESTED QTY:1 VIEW DETAILS
20.	Roller bearing (11044) Price: $126.00 SUGGESTED QTY:1 VIEW DETAILS
21.	Needle roller bushin (184654) Price: $46.80 SUGGESTED QTY:1 VIEW DETAILS
22.	Oil strainer (814482) Price: $90.50 SUGGESTED QTY:1 VIEW DETAILS
23.	Magnetic plug (852904) Price: $77.40 SUGGESTED QTY:1 VIEW DETAILS
24.	O-ring (955974) Price: $4.30 SUGGESTED QTY:1 VIEW DETAILS
25.	Propeller shaft (872533) Price: $1,908.00 SUGGESTED QTY:1 VIEW DETAILS
26.	Roller bearing, compl. (184765) Price: $268.00 SUGGESTED QTY:1 VIEW DETAILS
27.	Drive gear set (3861456) Price: $3,689.00 SUGGESTED QTY:1 Ratio 2,30:1 VIEW DETAILS
28.	Shim (941825) Price: $13.60 SUGGESTED QTY:1 TH=0.40mm VIEW DETAILS
28.	Shim (967352) Price: $24.50 SUGGESTED QTY:1 TH=0,05mm VIEW DETAILS
28.	Shim (941823) Price: $13.60 SUGGESTED QTY:1 TH=0,10mm VIEW DETAILS
28.	Shim (967351) Price: $9.40 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
28.	Shim (941824) Price: $6.20 SUGGESTED QTY:1 TH=0.20mm VIEW DETAILS
29.	Roller bearing (184691) Price: $141.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Shim (191834) Price: $6.70 SUGGESTED QTY:1 TH=0,10mm VIEW DETAILS
30.	Shim (191835) Price: $6.70 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
30.	Shim (191837) Price: $5.70 SUGGESTED QTY:1 TH=0.25mm VIEW DETAILS
31.	O-ring (925258) Price: $10.80 SUGGESTED QTY:2 VIEW DETAILS
32.	Hex. socket screw (941812) Price: $26.10 SUGGESTED QTY:2 VIEW DETAILS
33.	Zinc ring kit (875821) Price: $54.10 SUGGESTED QTY:1 VIEW DETAILS
34.	Screw (966808) Price: $13.10 SUGGESTED QTY:2 VIEW DETAILS
35.	Needle roller bushin (183859) Price: $56.40 SUGGESTED QTY:1 VIEW DETAILS
36.	Inner ring (184683) Price: $58.70 SUGGESTED QTY:1 VIEW DETAILS
37.	Sealing ring (851407) Price: $56.20 SUGGESTED QTY:2 VIEW DETAILS
38.	Line cutter (3858457) Price: $86.90 SUGGESTED QTY:1 (852198) front VIEW DETAILS
39.	Needle roller bearin (183272) Price: $45.70 SUGGESTED QTY:1 VIEW DETAILS
40.	Sealing ring (853807) Price: $25.40 SUGGESTED QTY:1 VIEW DETAILS
41.	Lock washer (853869) Price: $48.50 SUGGESTED QTY:1 VIEW DETAILS
42.	Propeller nut (852196) Price: $140.00 SUGGESTED QTY:1 VIEW DETAILS
43.	Line cutter (3858458) Price: $60.60 SUGGESTED QTY:1 (852206) rear VIEW DETAILS
44.	Propeller cone kit (872614) Price: $194.00 SUGGESTED QTY:1 (853825) (85424... VIEW DETAILS
47.	Hexagon screw (852216) Price: $53.00 SUGGESTED QTY:1 VIEW DETAILS
48.	Plastic washer (854294) Price: $12.30 SUGGESTED QTY:1 Rear VIEW DETAILS
51.	Spare parts kit (854667) Price: $54.10 SUGGESTED QTY:1 VIEW DETAILS
52.	Plastic washer (854294) Price: $12.30 SUGGESTED QTY:1 Rear VIEW DETAILS
54.	O-ring (925256) Price: $3.50 SUGGESTED QTY:1 VIEW DETAILS
55.	Hex. socket screw (941810) Price: $17.10 SUGGESTED QTY:4 Included in com... VIEW DETAILS
56.	Washer (853095) Price: $6.40 SUGGESTED QTY:2 VIEW DETAILS
57.	Anode kit (876138) Price: $71.80 SUGGESTED QTY:1 To be used in f... VIEW DETAILS
58.	Screw (966808) Price: $13.10 SUGGESTED QTY:2 VIEW DETAILS

63 Items

Grouped product items
Product Name	Qty
Lower gear $14,100.00
Housing $7,770.00
Bearing housing $930.00
Attaching plate $30.80
Blind rivet $7.70
Check valve $76.30
Fin $194.00
Hex. socket screw $7.70
Countershaft $1,283.00
Round nut $18.70
Inner ring $29.40
Splined sleeve $92.60
Nut $57.20
Shim $11.70
Shim $10.00
Ball bearing $81.50
Shim $9.80
Roller bearing $62.40
Shim $17.60
Shim $14.60
Shim $9.80
Shim $12.10
Tensioning ring $11.90
Roller bearing $126.00
Needle roller bushin $46.80
Oil strainer $90.50
Magnetic plug $77.40
O-ring $4.30
Propeller shaft $1,908.00
Roller bearing, compl. $268.00
Drive gear set $3,689.00
Shim $9.40
Shim $13.60
Shim $6.20
Shim $24.50
Shim $13.60
Roller bearing $141.00
Shim $6.70
Shim $6.70
Shim $5.70
O-ring $10.80
Hex. socket screw $26.10
Zinc ring kit $54.10
Needle roller bushin $56.40
Inner ring $58.70
Sealing ring $56.20
Line cutter $86.90
Needle roller bearin $45.70
Sealing ring $25.40
Lock washer $48.50
Propeller nut $140.00
Line cutter $60.60
Propeller cone kit $194.00
Washer $0.40
Hexagon screw $53.00
Spacer ring $54.10
Plastic washer $54.10
Spare parts kit $54.10
Plastic washer $12.30
Tool kit $17.80
O-ring $3.50
Hex. socket screw $17.10
Washer $6.40
Anode kit $71.80
Screw $13.10
