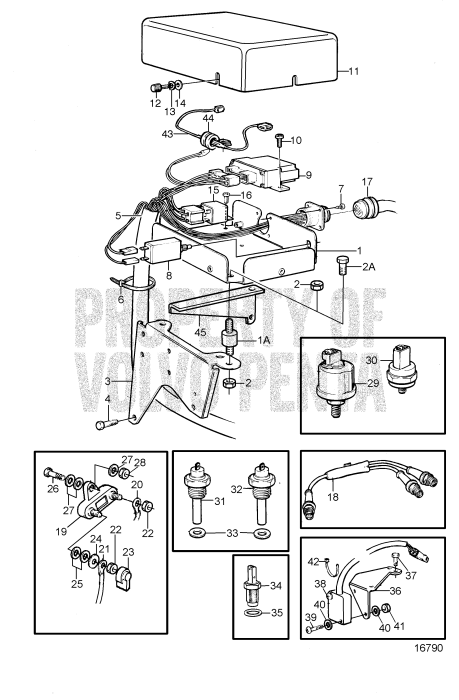

Electrical System: A
|
1. |
Bracket (860417)
Price: $348.00SUGGESTED QTY:1
Repl by 3581402...
VIEW DETAILS
|
|
|
1. |
Bracket (3581402)
Price: $140.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
1A. |
Absorber (1348141)
Price: $10.60SUGGESTED QTY:3
For 3581402
VIEW DETAILS
|
|
|
2. |
Flange nut (945407)
Price: $0.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2A. |
Flange screw (948746)
Price: $0.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Bracket (3580668)
Price: $85.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Bracket (3581530)
Price: $108.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Flange screw (947760)
Price: $1.40SUGGESTED QTY:2
L=40mm
VIEW DETAILS
|
|
|
4. |
Flange screw (948217)
Price: $1.00SUGGESTED QTY:1
L=45mm
VIEW DETAILS
|
|
|
5. |
Wiring harness (873742)
Price: $364.00SUGGESTED QTY:1
SN-2204215630
VIEW DETAILS
|
|
|
5. |
Wiring harness (873742)
Price: $364.00SUGGESTED QTY:1
SN2204215631-
VIEW DETAILS
|
|
|
6. |
Cable tie (948211)
Price: $2.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
7. |
Cross recessed screw (955119)
Price: $0.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
8. |
Fuse (966689)
Price: $128.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Rotation speed relay (881797)
Price: $614.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Flange screw (968476)
Price: $0.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Cover (860779)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
12. |
Lock screw (846736)
Price: $13.40SUGGESTED QTY:3
VIEW DETAILS
|
|
|
13. |
Spring washer (941904)
Price: $0.10SUGGESTED QTY:3
VIEW DETAILS
|
|
|
14. |
Washer (960137)
Price: $1.00SUGGESTED QTY:3
VIEW DETAILS
|
|
|
15. |
Relay (22637542)
Price: $76.30SUGGESTED QTY:1
12V 50A, SN-220...
VIEW DETAILS
|
|
|
15. |
Relay (22637542)
Price: $76.30SUGGESTED QTY:1
12V 40A, SN2204...
VIEW DETAILS
|
|
|
16. |
Flange screw (968476)
Price: $0.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Extension cable'verl (846648)
Price: $205.00SUGGESTED QTY:1
L=3.0m
VIEW DETAILS
|
|
|
17. |
Extension cable'verl (846649)
Price: $205.00SUGGESTED QTY:1
L=5.0m
VIEW DETAILS
|
|
|
17. |
Extension cable'verl (846650)
Price: $268.00SUGGESTED QTY:1
L=7.0m
VIEW DETAILS
|
|
|
18. |
Distributing contact (1140598)
Price: $420.00SUGGESTED QTY:1
For double stee...
VIEW DETAILS
|
|
|
29. |
Sensor, oil-engine (866835)
Price: $253.00SUGGESTED QTY:1
0-10BAR
VIEW DETAILS
|
|
|
29. |
Sensor, oil-engine (866836)
Price: $183.00SUGGESTED QTY:1
For double stee...
VIEW DETAILS
|
|
|
30. |
Pressure monitor, oil-pressure (863169)
Price: $112.00SUGGESTED QTY:1
0,7bar
VIEW DETAILS
|
|
|
31. |
Thermo monitor, coolant water temp. (873066)
Price: $148.00SUGGESTED QTY:1
97°C
VIEW DETAILS
|
|
|
32. |
Temperature sensor, coolant water temp. (827151)
Price: $117.00SUGGESTED QTY:1
40-120°C
VIEW DETAILS
|
|
|
32. |
Temperature sensor, coolant water temp. (840074)
Price: $90.10SUGGESTED QTY:1
For double inst...
VIEW DETAILS
|
|
|
33. |
Gasket (947624)
Price: $1.10SUGGESTED QTY:1
18x22
VIEW DETAILS
|
|
|
34. |
Tachometer sensor (862251)
Price: $443.00SUGGESTED QTY:1
For revolution ...
VIEW DETAILS
|
|
|
35. |
Gasket (947624)
Price: $1.10SUGGESTED QTY:1
18x22
VIEW DETAILS
|
|
|
36. |
Bracket (860970)
Price: $21.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
37. |
Flange screw (946544)
Price: $0.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
38. |
Position sensor (874498)
Price: $544.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
39. |
Cross recessed screw (956050)
Price: $2.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
40. |
Washer (955890)
Price: $0.40SUGGESTED QTY:4
VIEW DETAILS
|
|
|
41. |
Lock nut (966650)
Price: $0.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
42. |
Cable tie (948211)
Price: $2.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
43. |
Resistor (873717)
Price: $82.70SUGGESTED QTY:1
Late type
VIEW DETAILS
|
|
|
44. |
Clamp (952627)
Price: $1.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
45. |
Bracket (3581444)
Price: $58.30SUGGESTED QTY:1
For 3581402
VIEW DETAILS
|
46 Items
