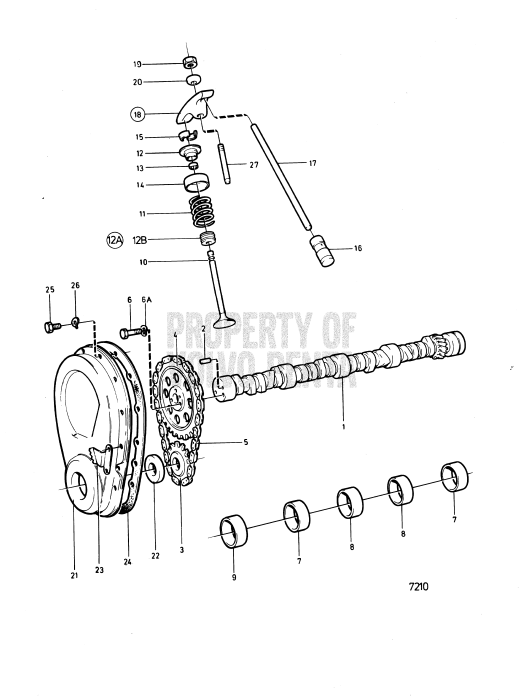

Camshaft and Valve Mechanism


1.	Camshaft (3853159) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Locating pin (3855972) Price: $18.00 SUGGESTED QTY:2 VIEW DETAILS
3.	Sprocket (3852690) Price: $219.00 SUGGESTED QTY:1 VIEW DETAILS
4.	Sprocket (3852689) Price: $189.00 SUGGESTED QTY:1 VIEW DETAILS
5.	Camshaft chain (3852685) Price: $166.00 SUGGESTED QTY:1 VIEW DETAILS
6A.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:3 VIEW DETAILS
7.	Bushing (3853211) Price: $118.00 SUGGESTED QTY:2 VIEW DETAILS
8.	Bushing (3853212) Price: $134.00 SUGGESTED QTY:2 VIEW DETAILS
9.	Bearing (3853210) Price: $112.00 SUGGESTED QTY:1 VIEW DETAILS
10.	Inlet valve (841861) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Over size 0,015... VIEW DETAILS
10.	Valve (841862) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Over size 0,030... VIEW DETAILS
10.	Exhaust valve (3853164) Price: $111.18 SUGGESTED QTY:8 Std VIEW DETAILS
10.	Exhaust valve (3853166) Price: $180.20 SUGGESTED QTY:8 Over size 0,015... VIEW DETAILS
10.	Inlet valve (841860) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Std, Obsolete p... VIEW DETAILS
11.	Spring (3853227) Price: $21.43 SUGGESTED QTY:16 VIEW DETAILS
12.	Valve spring washer (3853229) Price: $22.38 SUGGESTED QTY:8 For exhaust val... VIEW DETAILS
12.	Valve spring washer (3853228) Price: $6.10 SUGGESTED QTY:8 VIEW DETAILS
12A.	Sealing kit (855564) Price: $151.28 SUGGESTED QTY:1 VIEW DETAILS
14.	Shield (3853145) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:16 VIEW DETAILS
15.	Valve collet (3855823) Price: $9.20 SUGGESTED QTY:32 VIEW DETAILS
16.	Tappet (3853954) Price: $49.90 SUGGESTED QTY:16 VIEW DETAILS
17.	Push rod (3853157) Price: $41.20 SUGGESTED QTY:16 VIEW DETAILS
18.	Rocker arm (856421) This product has been discontinued Price: $0.00 SUGGESTED QTY:16 VIEW DETAILS
19.	Nut (3853004) This product has been discontinued Price: $6.40 SUGGESTED QTY:16 VIEW DETAILS
20.	Ball (3853158) Price: $81.10 SUGGESTED QTY:16 VIEW DETAILS
21.	Timing gear casing (3853194) Price: $106.03 SUGGESTED QTY:1 VIEW DETAILS
22.	Sealing ring (3853341) Price: $34.56 SUGGESTED QTY:1 VIEW DETAILS
23.	Setting indicator (3853195) Price: $13.70 SUGGESTED QTY:1 VIEW DETAILS
24.	Gasket (3852654) Price: $11.80 SUGGESTED QTY:1 VIEW DETAILS
25.	Screw (3856133) Price: $2.70 SUGGESTED QTY:10 VIEW DETAILS
27.	Stud (3853146) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
27.	Stud (3853147) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:16 Over size 0,013... VIEW DETAILS

32 Items

Grouped product items
Product Name	Qty
Camshaft $99,999.00
Locating pin $18.00
Sprocket $219.00
Sprocket $189.00
Camshaft chain $166.00
Hexagon screw $2.70
Spring washer $0.70
Bushing $118.00
Bushing $134.00
Exhaust valve $180.20
Valve $99,999.00
Inlet valve $99,999.00
Exhaust valve $111.18
Inlet valve $99,999.00
Spring $21.43
Valve spring washer $6.10
Sealing kit $151.28
Valve spring washer $22.38
Shield $99,999.00
Valve collet $9.20
Tappet $49.90
Push rod $41.20
Rocker arm $0.00
Nut $6.40
Ball $81.10
Timing gear casing $106.03
Sealing ring $34.56
Setting indicator $13.70
Gasket $11.80
Screw $2.70
Spring washer $0.40
Stud $99,999.00
