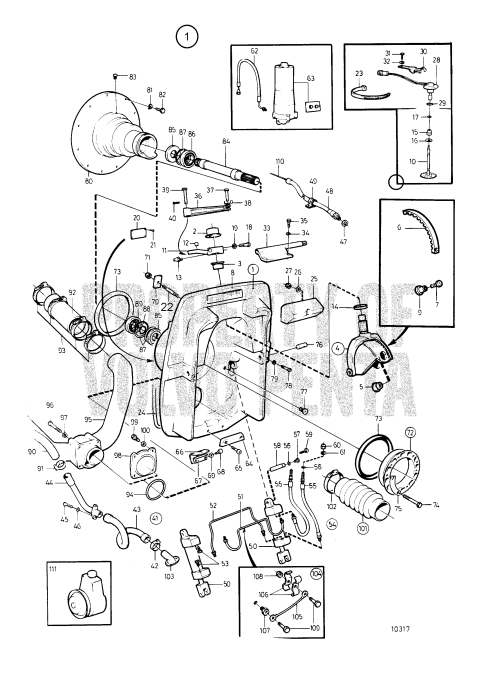

Connecting Components, Drive SP-A, SP-A1, SP-A2, DP-A, DP-A1, DP-A2


1.	Transom shield (876150) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Bushing (872363) Price: $40.80 SUGGESTED QTY:1 VIEW DETAILS
3.	Bushing (872362) Price: $29.80 SUGGESTED QTY:1 VIEW DETAILS
4.	Steering yoke (873183) Price: $1,491.00 SUGGESTED QTY:1 (852950) VIEW DETAILS
6.	Gear segment (872812) Price: $6.80 SUGGESTED QTY:1 VIEW DETAILS
8.	Sign (852827) This product has been discontinued Price: $41.94 SUGGESTED QTY:1 VIEW DETAILS
19.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:6 VIEW DETAILS
20.	Type plate (3817315) Price: $7.10 SUGGESTED QTY:1 VIEW DETAILS
22.	Stud (21796363) Price: $40.20 SUGGESTED QTY:6 Note, SN 110159... VIEW DETAILS
23.	Cable tie (948616) Price: $1.80 SUGGESTED QTY:1 VIEW DETAILS
26.	Washer (976945) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
28.	Sensor (22314183) Price: $428.00 SUGGESTED QTY:1 VIEW DETAILS
32.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:3 VIEW DETAILS
34.	Spring washer (941908) Price: $0.40 SUGGESTED QTY:2 VIEW DETAILS
36.	Link rod (852786) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
39.	Bolt (852788) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
41.	Hose kit (876632) Price: $99.30 SUGGESTED QTY:1 VIEW DETAILS
42.	Hose clamp (22274884) Price: $24.00 SUGGESTED QTY:1 VIEW DETAILS
43.	Hose (876632) Price: $99.30 SUGGESTED QTY:1 Repl by 875847 VIEW DETAILS
50.	Hydraulic cylinder (872612) Price: $1,654.00 SUGGESTED QTY:2 Repl by 854610 VIEW DETAILS
50.	Hydraulic cylinder (872612) Price: $1,654.00 SUGGESTED QTY:2 VIEW DETAILS
54.	Set (857624) Price: $384.00 SUGGESTED QTY:1 SN 1101592794- VIEW DETAILS
58.	Pin (872382) Price: $21.50 SUGGESTED QTY:2 VIEW DETAILS
63.	Hydraulic Pump, Trim Instrument and Installation Components (19761) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
67.	Attaching plate (852878) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
71.	Lock nut (971084) Price: $1.00 SUGGESTED QTY:6 VIEW DETAILS
72.	Clamping ring kit (191844) Price: $14.30 SUGGESTED QTY:1 (806310) VIEW DETAILS
93.	Hose clamp (22274887) Price: $12.10 SUGGESTED QTY:8 For engine with... VIEW DETAILS
96.	Hexagon screw (947790) Price: $4.30 SUGGESTED QTY:4 For engine with... VIEW DETAILS
97.	Washer (976945) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
98.	Seal flange (854584) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 For engine with... VIEW DETAILS
100.	Spring washer (941908) Price: $0.40 SUGGESTED QTY:2 VIEW DETAILS
101.	Bellows kit (876631) Price: $142.00 SUGGESTED QTY:1 For engine with... VIEW DETAILS
102.	Hose clamp (22274886) Price: $24.20 SUGGESTED QTY:2 For engine with... VIEW DETAILS
105.	Ground cable (872937) Price: $47.50 SUGGESTED QTY:1 VIEW DETAILS

35 Items

Grouped product items
Product Name	Qty
Transom shield $0.00
Bushing $40.80
Bushing $29.80
Steering yoke $1,491.00
Gear segment $6.80
Screw $4.50
Sign $41.94
Rivet nut $29.80
Driving wheel $108.00
Spindle arm $902.00
Bushing $23.10
Lubricating nipple $6.00
Ring $12.30
Bushing $7.80
Sealing ring $7.50
O-ring $3.20
Hex. socket screw $4.30
Spring washer $0.30
Type plate $7.10
Drive screw $4.50
Stud $35.70
Stud $40.20
Cable tie $1.80
Sealing strip $163.00
Rubber cushion $241.00
Lock nut $0.70
Sensor $428.00
O-ring $1.60
Bracket $36.40
Hexagon screw $0.70
Spring washer $0.70
Cable attachment $1,198.00
Hexagon screw $2.50
Link rod $99,999.00
Clevis pin $24.50
Lock washer $13.40
Bolt $99,999.00
Split pin $1.00
Hose kit $99.30
Hose clamp $24.00
Hose $99.30
Coolant pipe $280.00
Hexagon screw $1.00
Spring washer $0.40
Gasket $5.60
Protecting hose $152.00
Clamp $8.40
Hydraulic cylinder $1,654.00
Hydraulic cylinder $1,654.00
Tube $173.00
Tube $173.00
Set $384.00
Hydraulic hose $184.00
Hydraulic hose $184.00
O-ring $1.50
Plug $26.50
Pin $21.50
Flange screw $8.40
Lock nut $28.20
Washer $6.80
Hydraulic Pump, Trim Instrument and Installation Components Starting at $0.00
Zinc electrode $40.80
Hex. socket screw $9.50
Check valve $29.80
Attaching plate $99,999.00
Washer $51.90
Lock nut $1.00
Clamping ring kit $14.30
Rubber ring $51.90
Hexagon screw $14.30
Striker plate $28.70
Pivot pin $118.00
Plug $5.60
Hex. socket screw $13.60
Washer $0.40
Flywheel housing $1,888.00
Lubricating nipple $4.10
Spindle $855.00
Sealing ring $48.90
Ball bearing $40.70
Snap ring $7.20
Snap ring $1.30
Ball bearing $41.40
Hose $183.00
Hose clamp $5.30
Exhaust hose, hose $119.00
Hose clamp $12.10
O-ring $4.70
Exhaust grommet $1,787.00
Hexagon screw $4.30
Washer $1.10
Seal flange $99,999.00
Hexagon screw $1.50
Spring washer $0.40
Bellows kit $142.00
Hose clamp $24.20
Hose connection $76.30
Set $96.00
Ground cable $47.50
Clamp $15.60
Nipple $40.80
Hexagon nut $3.20
Hexagon screw $1.50
