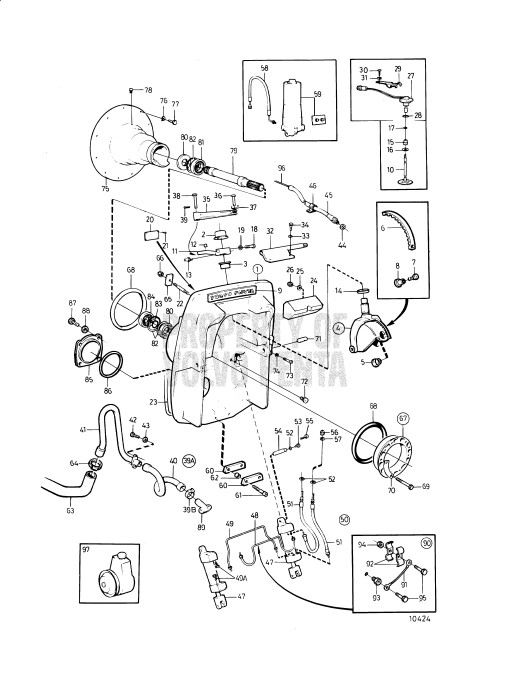

Connecting Components without Exhaust Pipe, Drive DP-B, DP-B1


1.	Transom shield (876150) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Bushing (872363) Price: $40.80 SUGGESTED QTY:1 VIEW DETAILS
3.	Bushing (872362) Price: $29.80 SUGGESTED QTY:1 VIEW DETAILS
4.	Steering yoke (873183) Price: $1,491.00 SUGGESTED QTY:1 VIEW DETAILS
6.	Gear segment (872812) Price: $6.80 SUGGESTED QTY:1 VIEW DETAILS
9.	Sign, VP (852827) This product has been discontinued Price: $41.94 SUGGESTED QTY:1 VIEW DETAILS
19.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:6 VIEW DETAILS
22.	Stud (21796363) Price: $40.20 SUGGESTED QTY:6 Note, SN 110159... VIEW DETAILS
25.	Washer (976945) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
27.	Sensor (22314183) Price: $428.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:3 VIEW DETAILS
33.	Spring washer (941908) Price: $0.40 SUGGESTED QTY:2 VIEW DETAILS
34.	Hexagon screw (965185) Price: $2.00 SUGGESTED QTY:2 VIEW DETAILS
35.	Link rod (852786) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
38.	Bolt (852788) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
39.	Split pin (907856) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
39A.	Hose kit (876632) Price: $99.30 SUGGESTED QTY:1 VIEW DETAILS
39B.	Hose clamp (22274884) Price: $24.00 SUGGESTED QTY:6 VIEW DETAILS
40.	Hose (876632) Price: $99.30 SUGGESTED QTY:1 Repl by 875847 VIEW DETAILS
41.	Coolant pipe (854487) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
47.	Hydraulic cylinder (872612) Price: $1,654.00 SUGGESTED QTY:2 Trimming cylind... VIEW DETAILS
47.	Cylinder (3860978) Price: $1,002.00 SUGGESTED QTY:2 Included in tri... VIEW DETAILS
47.	Hydraulic cylinder (872612) Price: $1,654.00 SUGGESTED QTY:2 Repl by 854610 VIEW DETAILS
50.	Set (857624) Price: $384.00 SUGGESTED QTY:1 SN 1101592794- VIEW DETAILS
54.	Pin (872382) Price: $21.50 SUGGESTED QTY:2 VIEW DETAILS
59.	Hydraulic Pump, Trim Instrument and Installation Components (19995) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
63.	Hose (854489) Price: $59.88 SUGGESTED QTY:1 For shield kit ... VIEW DETAILS
66.	Lock nut (971084) Price: $1.00 SUGGESTED QTY:6 VIEW DETAILS
67.	Clamping ring kit (191844) Price: $14.30 SUGGESTED QTY:1 VIEW DETAILS
76.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:6 VIEW DETAILS
85.	Seal flange (854584) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
88.	Spring washer (941908) Price: $0.40 SUGGESTED QTY:2 VIEW DETAILS
91.	Ground cable (872937) Price: $47.50 SUGGESTED QTY:1 VIEW DETAILS

33 Items

Grouped product items
Product Name	Qty
Transom shield $0.00
Bushing $40.80
Bushing $29.80
Steering yoke $1,491.00
Gear segment $6.80
Screw $4.50
Rivet nut $29.80
Sign, VP $41.94
Driving wheel $108.00
Spindle arm $902.00
Bushing $23.10
Lubricating nipple $6.00
Ring $12.30
Bushing $7.80
Sealing ring $7.50
O-ring $3.20
Hex. socket screw $4.30
Drive screw $4.50
Stud $35.70
Stud $40.20
Sealing strip $163.00
Rubber cushion $241.00
Washer $1.10
Lock nut $0.70
Sensor $428.00
O-ring $1.60
Bracket $36.40
Hexagon screw $0.70
Spring washer $0.70
Cable attachment $1,198.00
Hexagon screw $2.00
Link rod $99,999.00
Clevis pin $24.50
Lock washer $13.40
Bolt $99,999.00
Split pin $99,999.00
Hose clamp $24.00
Hose kit $99.30
Hose $99.30
Coolant pipe $99,999.00
Hexagon screw $1.00
Spring washer $0.40
Gasket $5.60
Protecting hose $152.00
Clamp $8.40
Hydraulic cylinder $1,654.00
Trimming cylind kit $1,654.00
Hydraulic cylinder $1,654.00
Cylinder $1,002.00
Tube $173.00
Tube $51.00
Tube $51.00
Tube $173.00
Set $384.00
Hydraulic hose $184.00
Hydraulic hose $184.00
Hydraulic hose $184.00
Hydraulic hose $184.00
O-ring $1.50
Plug $26.50
Pin $21.50
Flange screw $8.40
Lock nut $28.20
Washer $6.80
Hydraulic Pump, Trim Instrument and Installation Components Starting at $0.00
Zinc electrode $40.80
Hex. socket screw $9.80
Spacer tube $19.00
Hose $59.88
Hose clamp $5.30
Washer $51.90
Lock nut $1.00
Clamping ring kit $14.30
Rubber ring $51.90
Hexagon screw $14.30
Striker plate $28.70
Pivot pin $118.00
Plug $5.60
Hex. socket screw $13.60
Washer $0.40
Flywheel housing $1,888.00
Spring washer $0.30
Screw $15.10
Lubricating nipple $4.10
Spindle $855.00
Sealing ring $48.90
Ball bearing $40.70
Snap ring $7.20
Snap ring $1.30
Ball bearing $41.40
Seal flange $99,999.00
O-ring $4.70
Hexagon screw $1.50
Spring washer $0.40
Hose connection $76.30
Set $96.00
Ground cable $47.50
Clamp $15.60
Nipple $40.80
Hexagon nut $3.20
Hexagon screw $1.50
