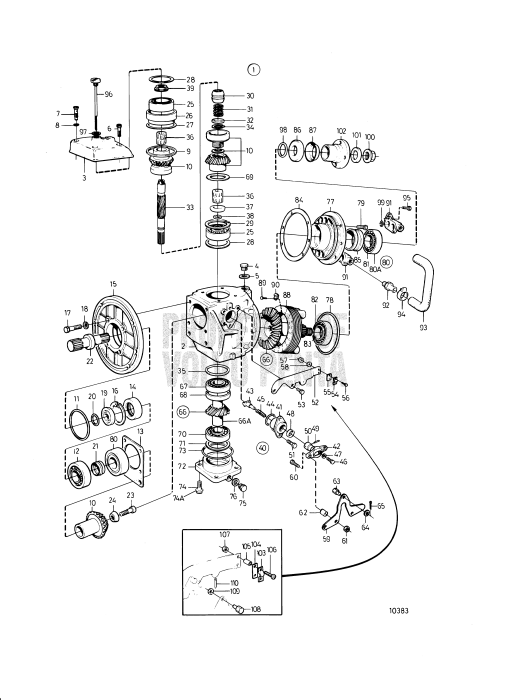

Reverse Gear MS5A: 853954


1.	Reversing gear (3860003) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Ratio 1.94:1 VIEW DETAILS
2.	Gear housing (853374) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
4.	Plug (981965) Price: $29.40 SUGGESTED QTY:1 VIEW DETAILS
6.	Hex. socket screw (956585) This product has been discontinued Price: $0.00 SUGGESTED QTY:3 VIEW DETAILS
10.	Gear set (877352) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
11.	O-ring (967344) Price: $20.80 SUGGESTED QTY:1 VIEW DETAILS
13.	Adjusting washer (853065) Price: $19.10 SUGGESTED QTY:1 TH=0.35mm VIEW DETAILS
23.	Screw (3852309) Price: $35.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Sliding sleeve (3807613) Price: $441.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Spring (3852296) Price: $5.80 SUGGESTED QTY:1 VIEW DETAILS
32.	Washer (3852298) Price: $7.70 SUGGESTED QTY:1 VIEW DETAILS
36.	Needle bearing (3852390) Price: $20.20 SUGGESTED QTY:2 VIEW DETAILS
37.	Spacer ring (3852294) Price: $39.90 SUGGESTED QTY:1 VIEW DETAILS
38.	Lock ring (3852295) Price: $3.20 SUGGESTED QTY:2 VIEW DETAILS
39.	Nut (3852301) Price: $16.80 SUGGESTED QTY:1 Alt, std VIEW DETAILS
39.	Nut (3852302) Price: $19.00 SUGGESTED QTY:1 Alt, TH=0,2mm VIEW DETAILS
39.	Nut (3852303) Price: $16.80 SUGGESTED QTY:1 Alt, TH=0,4mm VIEW DETAILS
39.	Nut (3852375) Price: $16.80 SUGGESTED QTY:1 Alt, TH=0,6mm VIEW DETAILS
42.	Eccentric piston (897816) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
44.	O-ring (949659) Price: $6.50 SUGGESTED QTY:1 VIEW DETAILS
48.	Sealing ring (853868) Price: $36.40 SUGGESTED QTY:1 VIEW DETAILS
56.	Hexagon screw (969407) Price: $1.30 SUGGESTED QTY:2 VIEW DETAILS
60.	Hexagon screw (994374) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
61.	Lock nut (990949) Price: $1.60 SUGGESTED QTY:2 VIEW DETAILS
63.	Cube (22336734) Price: $5.60 SUGGESTED QTY:1 VIEW DETAILS
66.	Drive gear set (853907) This product has been discontinued Price: $4.00 SUGGESTED QTY:1 Ratio 1.94:1 VIEW DETAILS
72.	Bearing cover (854097) Price: $252.84 SUGGESTED QTY:1 VIEW DETAILS
74.	Flange screw (946472) This product has been discontinued Price: $0.00 SUGGESTED QTY:4 VIEW DETAILS
77.	Bearing housing (853366) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
80.	Roller bearing (3850852) Price: $275.00 SUGGESTED QTY:2 VIEW DETAILS
80A.	Cup (854165) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Repl by 853949,... VIEW DETAILS
81.	Cone (854166) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Repl by 853949,... VIEW DETAILS
88.	Oil cooler (853394) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
91.	Connector (854268) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
93.	Hose (854116) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
95.	Flange screw (965213) Price: $3.40 SUGGESTED QTY:4 VIEW DETAILS
106.	Cross recessed screw (969411) Price: $2.10 SUGGESTED QTY:2 For twin contro... VIEW DETAILS
108.	Cube (22336734) Price: $5.60 SUGGESTED QTY:1 VIEW DETAILS

38 Items

Grouped product items
Product Name	Qty
Reversing gear $99,999.00
Gear housing $99,999.00
Gear housing cover $1,463.00
Plug $29.40
Gasket $5.00
Hex. socket screw $0.00
Hollow screw $128.00
O-ring $2.30
Gasket $14.00
Gear set $99,999.00
O-ring $20.80
Roller bearing $185.00
Adjusting washer $19.10
Adjusting washer $17.70
Adjusting washer $16.10
Sealing ring $43.00
Bearing housing $538.00
Snap ring $10.30
Hex. socket screw $4.10
Washer $0.60
Washer $51.90
O-ring $9.40
Pretensioning sleeve $46.60
Stub axle $1,304.00
Screw $35.00
Washer $50.90
Ball bearing $549.00
Bearing sleeve $549.00
Shim $14.20
Shim $14.20
Shim $14.60
Shim $17.60
Shim $11.30
Shim $16.50
Shim $16.50
Snap ring $21.00
Sliding sleeve $441.00
Spring $5.80
Washer $7.70
Shaft $2,915.00
Snap ring $1.60
Shim $14.60
Shim $17.60
Shim $12.10
Needle bearing $20.20
Spacer ring $39.90
Lock ring $3.20
Nut $16.80
Nut $16.80
Nut $16.80
Nut $19.00
Shift mechanism $891.00
Bearing housing $323.00
Eccentric piston $0.00
Dog $210.00
O-ring $6.50
Spring $1.90
Hexagon screw $27.10
Shim $3.70
Sealing ring $36.40
Clevis pin $17.50
Spring pin $0.30
Flange screw $3.20
Bracket $37.00
Hexagon screw $1.90
Hexagon screw $1.30
Lock nut $1.00
Washer $0.40
Intermediate lever $21.50
Hexagon screw $1.10
Lock nut $1.60
Drive gear set $4.00
Inner ring $93.10
Cup $61.10
Shim $4.90
Shim $7.10
Shim $6.20
Roller bearing $160.00
Shim $9.40
Shim $13.60
Shim $13.60
Shim $24.50
Shim $6.20
Bearing cover $252.84
O-ring $4.40
Flange screw $0.00
Spring washer $0.40
Plug $5.90
Gasket $6.80
Bearing housing $99,999.00
O-ring $11.10
Hexagon screw $3.90
Roller bearing $275.00
Cup $99,999.00
Cone $99,999.00
Inner ring $152.00
Cup $83.60
Shim $15.70
Anode $20.00
Anode $20.00
Pretensioning sleeve $126.00
Sealing ring $80.60
Sealing ring $25.10
Oil cooler $99,999.00
Hex. socket screw $1.40
Retainer $10.80
Connector $99,999.00
Hose nipple $146.00
Hose $99,999.00
Hose clamp $5.30
Flange screw $3.40
Oil dipstick $108.00
O-ring $4.30
O-ring $1.90
O-ring $6.30
Flange lock nut $121.00
Washer $16.50
Propeller shaft flan $1,738.00
Bracket $6.80
Washer $4.60
Spacer sleeve $9.70
Cross recessed screw $2.10
Flange nut $0.30
Cube $5.60
Washer $1.00
Split pin $3.80
