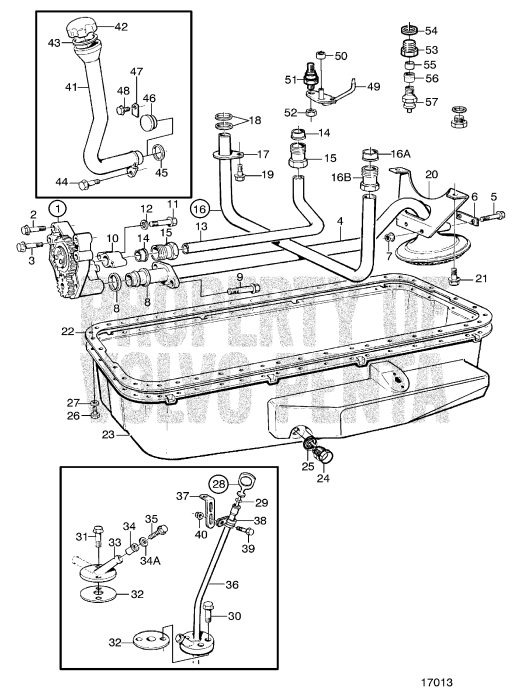

Lubricating System


1.	Oil Pump, Components: 471733 (1036) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 TAMD72P-A, TAMD... VIEW DETAILS
5.	Flange screw (994388) Price: $4.50 SUGGESTED QTY:2 VIEW DETAILS
7.	Flange nut (990940) Price: $0.90 SUGGESTED QTY:1 VIEW DETAILS
9.	Flange screw (965184) Price: $2.00 SUGGESTED QTY:2 For 864760 VIEW DETAILS
10.	Spacer (465846) Price: $110.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Hexagon screw (968999) This product has been discontinued Price: $0.00 SUGGESTED QTY:2 For 864760 VIEW DETAILS
12.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:3 VIEW DETAILS
14.	Ferrule (980786) Price: $8.00 SUGGESTED QTY:1 For 477948 VIEW DETAILS
19.	Flange screw (946440) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
21.	Flange screw (946440) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
22.	Gasket (11030779) Price: $102.00 SUGGESTED QTY:1 VIEW DETAILS
27.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:3 VIEW DETAILS
30.	Flange screw (947542) Price: $0.70 SUGGESTED QTY:2 L=25mm VIEW DETAILS
31.	Flange screw (946544) Price: $0.70 SUGGESTED QTY:2 L=16mm VIEW DETAILS
35.	Flange screw (969407) Price: $1.30 SUGGESTED QTY:1 VIEW DETAILS
39.	Flange screw (946544) Price: $0.70 SUGGESTED QTY:2 L=16mm VIEW DETAILS
43.	Gasket (1275379) Price: $12.50 SUGGESTED QTY:1 VIEW DETAILS
44.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
48.	Flange screw (946440) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
56.	Ferrule (980786) Price: $8.00 SUGGESTED QTY:1 For 477948 VIEW DETAILS

20 Items

Grouped product items
Product Name	Qty
Oil Pump, Components: 471733 Starting at $3.70
Oil pump $1,517.00
Flange nut $6.40
Flange screw $2.20
Suction pipe $570.00
Flange screw $4.50
Square washer $5.30
Flange nut $0.90
Sealing ring $7.50
Flange screw $2.00
Spacer $110.00
Hexagon screw $0.00
Oil pressure pipe, incl 1 nut and ferrule $127.00
Oil pressure pipe, piston cooling $129.00
Ferrule $8.00
Oil feed pipe $27.20
Clamp $7.40
Gasket $15.50
Bracket $127.00
Gasket $102.00
Crankcase $3,613.00
Plug $10.80
Gasket $3.20
Hexagon screw $1.50
Spring washer $0.70
Oil dipstick $50.10
Oil dipstick $107.00
O-ring $3.30
Flange screw $0.70
Gasket $14.20
Flange $280.00
Bushing $13.90
Washer $0.40
Flange screw $1.30
Tube $775.00
Bracket $4.90
Clamp $1.80
Flange screw $0.70
Flange nut $0.60
Oil filler pipe $817.00
Oil filler cap $26.30
Gasket $12.50
Flange screw $1.10
Rubber moulding $10.00
Plug $27.90
Anchorage $35.00
Flange screw $1.00
Piston cooling jet, piston cooling $85.70
Sealing ring $3.00
Stud $9.60
Lock nut $0.80
Plug $11.70
Gasket $1.00
Tube $142.00
Ferrule $8.00
Reduction valve, piston cooling $284.00
