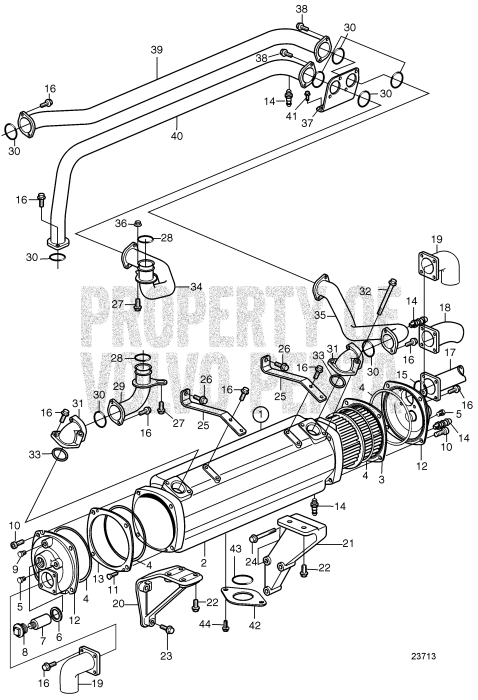

Heat Exchanger


10.	Hex. socket screw (959224) This product has been discontinued Price: $0.00 SUGGESTED QTY:8 L=35mm VIEW DETAILS
14.	Shut-off cock (997641) Price: $40.70 SUGGESTED QTY:1 VIEW DETAILS
16.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
22.	Flange screw (946752) Obsolete no longer made Price: $3.20 SUGGESTED QTY:1 VIEW DETAILS
23.	Flange screw (965220) Price: $1.20 SUGGESTED QTY:2 VIEW DETAILS
24.	Flange screw (965188) Price: $6.00 SUGGESTED QTY:4 VIEW DETAILS
26.	Flange screw (965217) Price: $1.10 SUGGESTED QTY:12 L=65mm VIEW DETAILS
27.	Flange screw (948217) Price: $1.00 SUGGESTED QTY:3 VIEW DETAILS
32.	Flange screw (965180) Price: $3.90 SUGGESTED QTY:2 VIEW DETAILS
36.	Flange lock nut (948645) Price: $2.00 SUGGESTED QTY:1 VIEW DETAILS
38.	Flange screw (945444) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
41.	Flange screw (946471) Price: $2.10 SUGGESTED QTY:2 With radiator c... VIEW DETAILS
44.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS

13 Items

Grouped product items
Product Name	Qty
Heat exchanger $18,100.00
Insert $12,400.00
O-ring $35.30
Plug $55.40
Gasket $5.20
Zinc anode $25.80
Plug $64.00
Plug $48.20
Hex. socket screw $0.00
Hex. socket screw $1.70
End plate $1,558.00
Spacer $1,124.00
Shut-off cock $40.70
Gasket $46.30
Riser, hose connecting $485.00
Riser, hose connecting $721.00
Bracket $406.00
Bracket $407.00
Flange screw $3.20
Flange screw $1.20
Flange screw $6.00
Bracket $236.00
Flange screw $1.10
Flange screw $1.00
Sealing ring $2.70
Coolant pipe, charge air cooler $441.00
Gasket $40.80
Pipe connection $205.00
Flange screw $3.90
O-ring $3.10
Coolant pipe, charge air cooler $667.00
Coolant pipe $624.00
Flange lock nut $2.00
Bracket $236.00
Flange screw $1.10
Coolant pipe, therm. housing $760.00
Coolant pipe, circulation pump $746.00
Flange screw $2.10
Cardboard tube $82.70
O-ring $2.40
Flange screw $1.10
