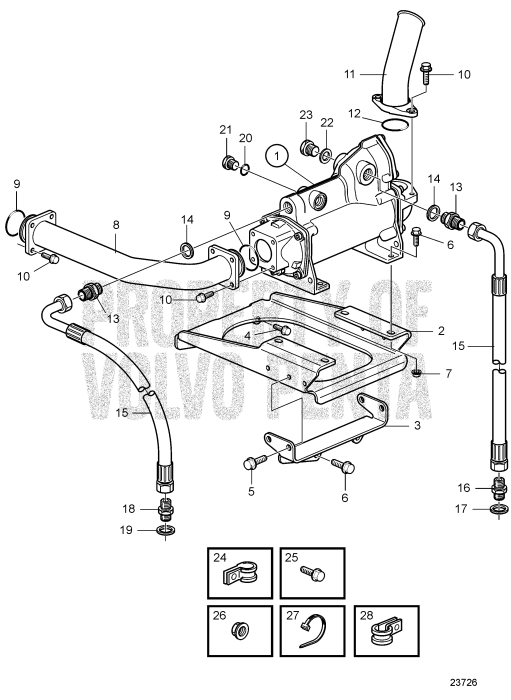

Oil Cooler for ZF311A-E, Later Production


1.	Heat exchanger (22108637) Price: $6,560.00 SUGGESTED QTY:1 replaced by nex... VIEW DETAILS
1.	Oil Cooler for Reverse Gear, Components (21709) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 D12D-C MH, D12D... VIEW DETAILS
2.	Bracket (3887366) Price: $989.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Bracket (3819602) Price: $516.00 SUGGESTED QTY:1 VIEW DETAILS
4.	Flange screw (965185) Price: $2.00 SUGGESTED QTY:6 VIEW DETAILS
5.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
6.	Flange screw (946752) Obsolete no longer made Price: $3.20 SUGGESTED QTY:1 VIEW DETAILS
7.	Flange nut (971095) Price: $0.50 SUGGESTED QTY:2 VIEW DETAILS
8.	Seawater pipe (3887382) Price: $1,537.00 SUGGESTED QTY:1 VIEW DETAILS
9.	Gasket (843584) Price: $46.30 SUGGESTED QTY:2 VIEW DETAILS
10.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
11.	Seawater pipe (3842588) Price: $700.00 SUGGESTED QTY:1 (3828777) VIEW DETAILS
12.	O-ring (925092) Price: $3.50 SUGGESTED QTY:1 VIEW DETAILS
13.	Nipple (984670) Price: $82.60 SUGGESTED QTY:2 VIEW DETAILS
14.	Gasket (977937) Price: $7.70 SUGGESTED QTY:2 VIEW DETAILS
15.	Hose (3588801) Price: $126.00 SUGGESTED QTY:1 L=570mm VIEW DETAILS
16.	Nipple (943986) Price: $30.80 SUGGESTED QTY:1 VIEW DETAILS
18.	Nipple (984669) Price: $14.40 SUGGESTED QTY:1 VIEW DETAILS
19.	Gasket (976930) Price: $3.90 SUGGESTED QTY:1 VIEW DETAILS
20.	O-ring (968559) Price: $12.50 SUGGESTED QTY:1 VIEW DETAILS
21.	Plug (968610) Price: $5.30 SUGGESTED QTY:1 VIEW DETAILS
22.	Gasket (977937) Price: $7.70 SUGGESTED QTY:2 VIEW DETAILS
23.	Plug (914394) Price: $24.10 SUGGESTED QTY:1 VIEW DETAILS
24.	Clamp (945081) Price: $3.00 SUGGESTED QTY:2 VIEW DETAILS
25.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
26.	Flange nut (990940) Price: $0.90 SUGGESTED QTY:7 VIEW DETAILS
27.	Cable tie (948616) Price: $1.80 SUGGESTED QTY:1 VIEW DETAILS

27 Items

Grouped product items
Product Name	Qty
Heat exchanger $6,560.00
Heat exchanger $6,560.00
Oil Cooler for Reverse Gear, Components Starting at $2.70
Bracket $989.00
Bracket $516.00
Flange screw $2.00
Flange screw $3.20
Flange nut $0.50
Seawater pipe $1,537.00
Gasket $46.30
Seawater pipe $700.00
O-ring $3.50
Nipple $82.60
Hose $126.00
Nipple $30.80
Gasket $9.90
Nipple $14.40
Gasket $3.90
O-ring $12.50
Plug $5.30
Gasket $7.70
Plug $24.10
Clamp $3.00
Flange screw $1.10
Flange nut $0.90
Cable tie $1.80
Clamp $3.00
