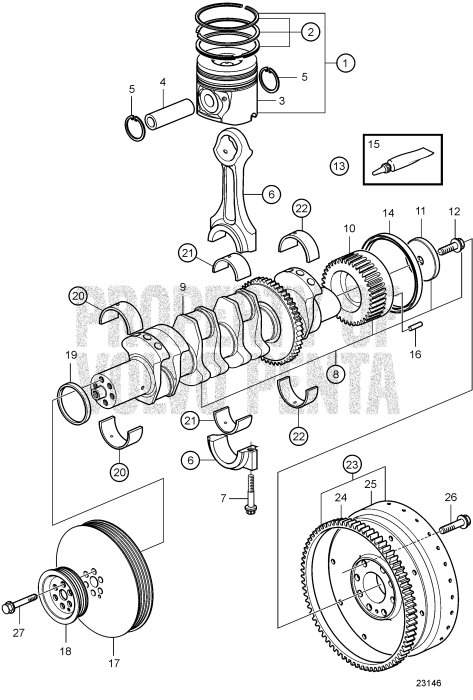

Crank Mechanism


1.	Piston kit (23557237) Price: $1,076.00 SUGGESTED QTY:4 Std VIEW DETAILS
2.	Piston ring kit (22582994) Call Parts Lookup for more information Price: $287.00 SUGGESTED QTY:1 Std VIEW DETAILS
3.	Piston (3855743) Obsolete no longer made Price: $99,999.00 SUGGESTED QTY:1 O.S=0.50mm VIEW DETAILS
4.	Piston pin (22083863) Price: $99.60 SUGGESTED QTY:1 VIEW DETAILS
5.	Snap ring (982437) Price: $2.20 SUGGESTED QTY:2 VIEW DETAILS
6.	Connecting rod (22732456) Price: $1,141.00 SUGGESTED QTY:4 VIEW DETAILS
7.	Screw (3581905) Price: $6.40 SUGGESTED QTY:2 VIEW DETAILS
8.	Crankshaft (3856923) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
9.	Spare parts kit (23553105) Price: $9,320.00 SUGGESTED QTY:1 VIEW DETAILS
10.	Gear (3583264) Price: $1,187.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Washer (3582741) Price: $74.90 SUGGESTED QTY:1 VIEW DETAILS
12.	Flange screw (465825) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
13.	Sealing ring kit (3586960) Price: $249.00 SUGGESTED QTY:1 VIEW DETAILS
14.	Sealing ring (21780376) Price: $15.00 SUGGESTED QTY:1 (421629) VIEW DETAILS
15.	Grease (1161687) Price: $19.30 SUGGESTED QTY:1 (1161447) VIEW DETAILS
16.	Pin (950566) Price: $3.70 SUGGESTED QTY:1 VIEW DETAILS
17.	Vibration damper (3582686) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
18.	Pulley (23592540) Price: $140.00 SUGGESTED QTY:1 VIEW DETAILS
19.	Sealing ring (3582748) Price: $90.30 SUGGESTED QTY:1 VIEW DETAILS
20.	Main bearing kit (3586871) Price: $141.00 SUGGESTED QTY:4 Std VIEW DETAILS
20.	Main bearing kit (3586873) Price: $75.80 SUGGESTED QTY:4 O.S=0,25mm VIEW DETAILS
20.	Main bearing kit (3586875) Price: $138.00 SUGGESTED QTY:4 O.S=0.50mm VIEW DETAILS
20.	Main bearing kit (3586876) Price: $188.00 SUGGESTED QTY:4 O.S=0,75mm VIEW DETAILS
21.	Bearing shell kit (3885325) Price: $112.00 SUGGESTED QTY:4 O.S=0.50mm VIEW DETAILS
21.	Bearing shell kit (3885326) Price: $114.00 SUGGESTED QTY:4 O.S=0,75mm VIEW DETAILS
21.	Bearing shell kit (3885323) Price: $93.50 SUGGESTED QTY:4 Std, (3586883) VIEW DETAILS
21.	Bearing shell kit (3885324) Price: $123.00 SUGGESTED QTY:4 O.S=0,25mm VIEW DETAILS
22.	Thrust bearing (3586877) Price: $312.00 SUGGESTED QTY:1 Std VIEW DETAILS
22.	Thrust bearing (3586879) Price: $377.00 SUGGESTED QTY:1 O.S=0,25mm VIEW DETAILS
22.	Thrust bearing (3586880) Price: $393.00 SUGGESTED QTY:1 O.S=0.50mm VIEW DETAILS
22.	Thrust bearing (3586881) Price: $414.00 SUGGESTED QTY:1 O.S=0,75mm VIEW DETAILS
23.	Flywheel (22931591) Price: $1,162.00 SUGGESTED QTY:1 VIEW DETAILS
24.	Ring gear (829462) Price: $799.00 SUGGESTED QTY:1 VIEW DETAILS
25.	Flywheel (3840066) Price: $7,830.00 SUGGESTED QTY:1 (866380) VIEW DETAILS
26.	Flange screw (465825) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
27.	Flange screw (465825) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS

36 Items

Grouped product items
Product Name	Qty
Piston kit $1,076.00
Piston ring kit $287.00
Piston $99,999.00
Piston pin $99.60
Snap ring $2.20
Connecting rod $1,141.00
Screw $6.40
Crankshaft $99,999.00
Spare parts kit $9,320.00
Gear $1,187.00
Washer $74.90
Sealing ring kit $249.00
Sealing ring $15.00
Grease $19.30
Pin $3.70
Vibration damper $0.00
Pulley $140.00
Sealing ring $90.30
Main bearing kit $141.00
Main bearing kit $188.00
Main bearing kit $75.80
Main bearing kit $138.00
Bearing shell kit $112.00
Bearing shell kit $93.50
Bearing shell kit $114.00
Bearing shell kit $123.00
Thrust bearing $377.00
Thrust bearing $393.00
Thrust bearing $312.00
Thrust bearing $414.00
Flywheel $1,162.00
Ring gear $799.00
Flywheel $7,830.00
Flange screw $1.10
