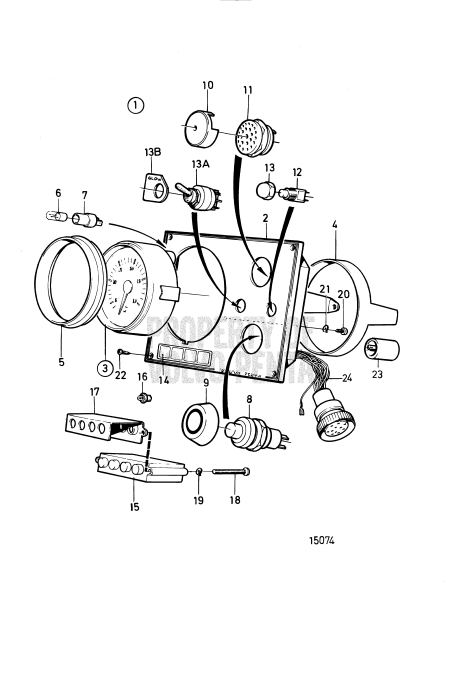

Instrument Panel Standard, with Start Button. Earlier Production


1.	Instrument panel (23577084) Price: $1,102.00 SUGGESTED QTY:1 Replaced by 1 e... VIEW DETAILS
2.	Instrument panel (872798) Price: $104.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Tachometer (876751) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 Replaced by tac... VIEW DETAILS
4.	Attaching ring (828558) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
5.	Front ring (858644) Price: $21.20 SUGGESTED QTY:1 VIEW DETAILS
6.	Bulb (19923) Price: $6.00 SUGGESTED QTY:1 12V, 2W VIEW DETAILS
7.	Lamp socket (808175) Price: $20.90 SUGGESTED QTY:1 VIEW DETAILS
8.	Button (843684) Price: $46.20 SUGGESTED QTY:1 VIEW DETAILS
9.	Rubber cap (837533) Price: $15.10 SUGGESTED QTY:1 VIEW DETAILS
10.	Protecting casing (858795) Price: $8.80 SUGGESTED QTY:1 VIEW DETAILS
11.	Buzzer (828587) Price: $254.00 SUGGESTED QTY:1 VIEW DETAILS
12.	Toggle switch (828585) Price: $76.30 SUGGESTED QTY:1 VIEW DETAILS
13.	Nut (828586) Price: $27.60 SUGGESTED QTY:1 VIEW DETAILS
13A.	Toggle switch (872800) Price: $135.00 SUGGESTED QTY:1 VIEW DETAILS
13B.	Decal (872771) Obsolete no longer made Price: $32.90 SUGGESTED QTY:1 VIEW DETAILS
14.	Symbol strip (858645) Price: $20.90 SUGGESTED QTY:1 VIEW DETAILS
15.	Electronic unit (22354203) Price: $666.00 SUGGESTED QTY:1 (828783) VIEW DETAILS
16.	Bulb (19923) Price: $6.00 SUGGESTED QTY:1 12V, 2W VIEW DETAILS
17.	Reflector (828784) Price: $49.80 SUGGESTED QTY:1 VIEW DETAILS
18.	Cross recessed screw (941615) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
19.	Spring washer (941904) Price: $0.10 SUGGESTED QTY:1 VIEW DETAILS
20.	Cross recessed screw (949947) Price: $0.30 SUGGESTED QTY:1 VIEW DETAILS
21.	Spring washer (941904) Price: $0.10 SUGGESTED QTY:1 VIEW DETAILS
22.	Screw (828647) Price: $3.80 SUGGESTED QTY:4 VIEW DETAILS
23.	Diode (20382270) Price: $20.90 SUGGESTED QTY:1 VIEW DETAILS
24.	Electrical Materials (1963) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 MD2010A, MD2020... VIEW DETAILS

26 Items

Grouped product items
Product Name	Qty
Instrument panel $1,102.00
Instrument panel $104.00
Tachometer $0.00
Attaching ring $99,999.00
Front ring $21.20
Lamp socket $20.90
Button $46.20
Rubber cap $15.10
Protecting casing $8.80
Buzzer $254.00
Toggle switch $76.30
Decal $32.90
Toggle switch $135.00
Nut $27.60
Symbol strip $20.90
Electronic unit $666.00
Bulb $6.00
Reflector $49.80
Cross recessed screw $99,999.00
Cross recessed screw $0.30
Spring washer $0.10
Screw $3.80
Diode $20.90
Electrical Materials Starting at $0.30
