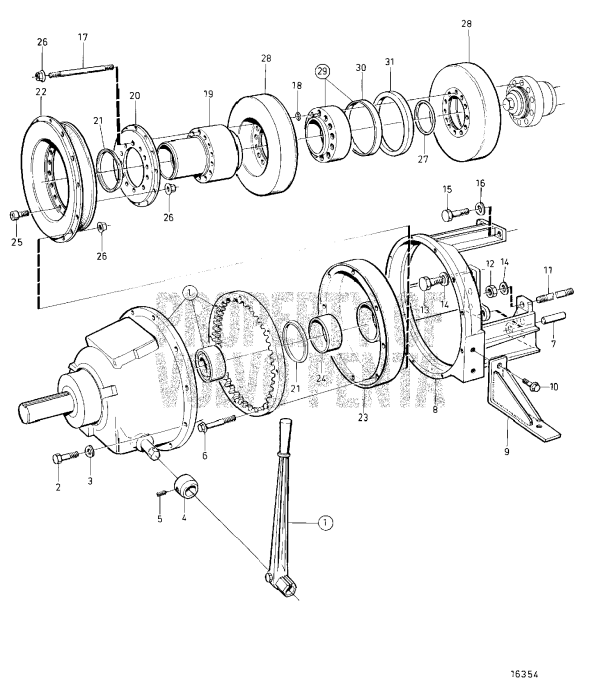

Clutch Twin Disc 11,5''
|
1. |
Clutch, straight stub shaft (845705)
Price: $99,999.00SUGGESTED QTY:1
SP 211 HP3
VIEW DETAILS
|
|
|
1. |
Clutch Twin Disc 11, 5'', Components (2446)
SUGGESTED QTY:1
TAMD162C-C, TAM...
VIEW DETAILS
|
|
|
1. |
Clutch, hydraulic pump (849223)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part, ...
VIEW DETAILS
|
|
|
2. |
Hexagon screw (940115)
Price: $3.30SUGGESTED QTY:12
VIEW DETAILS
|
|
|
3. |
Spring washer (942336)
Price: $0.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
4. |
Stop ring (803612)
Price: $78.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
5. |
Set screw, ground (946847)
Price: $40.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
6. |
Flange screw (968237)
Price: $6.60SUGGESTED QTY:8
VIEW DETAILS
|
|
|
8. |
Bell housing (3825915)
Price: $3,231.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Bracket (849098)
Price: $399.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
10. |
Flange screw (946329)
Price: $1.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
11. |
Stud (968684)
Price: $57.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
Hexagon nut (990953)
Price: $6.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Hexagon screw (970995)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
15. |
Hexagon screw (970973)
Price: $1.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
16. |
Spring washer (940280)
Price: $1.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
17. |
Stud (980558)
Price: $37.50SUGGESTED QTY:12
VIEW DETAILS
|
|
|
19. |
Shaft (3825589)
Price: $4,399.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
20. |
Spacer (3825587)
Price: $3,360.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
21. |
Sealing ring (965872)
Price: $60.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
22. |
Clutch (3825593)
Price: $4,335.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
Companion flange (3825588)
Price: $3,096.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Bearing bushing (863602)
Price: $689.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
25. |
Hex. socket screw (959236)
Price: $3.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
26. |
Flange lock nut (990951)
Price: $2.50SUGGESTED QTY:4
VIEW DETAILS
|
25 Items
