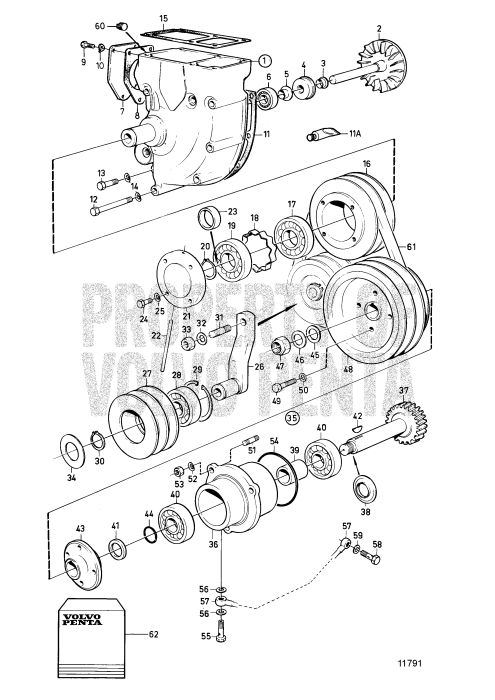

Circulation Pump and Drive Device, SN-XXXXXXXXXX/257762


1.	Coolant pump (866584) Price: $1,629.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Shaft (421082) Price: $81.60 SUGGESTED QTY:1 VIEW DETAILS
3.	Wear ring (421306) Price: $45.20 SUGGESTED QTY:1 VIEW DETAILS
4.	Sealing ring (1676432) Price: $62.10 SUGGESTED QTY:1 VIEW DETAILS
5.	Deflector (70913) Price: $21.50 SUGGESTED QTY:1 VIEW DETAILS
6.	Ball bearing (1660609) Price: $32.00 SUGGESTED QTY:1 VIEW DETAILS
7.	Flange (846685) Price: $116.39 SUGGESTED QTY:1 For heat ex. VIEW DETAILS
8.	Gasket (422171) Price: $6.70 SUGGESTED QTY:1 VIEW DETAILS
9.	Hexagon screw (955524) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
10.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:24 VIEW DETAILS
11.	Gasket (423127) Price: $21.40 SUGGESTED QTY:1 Early type VIEW DETAILS
14.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
15.	Gasket (862596) Price: $18.80 SUGGESTED QTY:1 VIEW DETAILS
16.	V-belt pulley (822548) Price: $852.00 SUGGESTED QTY:1 VIEW DETAILS
17.	Ball bearing (181538) Price: $41.00 SUGGESTED QTY:1 VIEW DETAILS
18.	Spacer sleeve (422202) Price: $58.70 SUGGESTED QTY:1 VIEW DETAILS
19.	Roller bearing (1542870) Price: $86.90 SUGGESTED QTY:1 VIEW DETAILS
20.	Snap ring (914462) Price: $1.30 SUGGESTED QTY:1 VIEW DETAILS
21.	Companion flange (836805) Price: $674.00 SUGGESTED QTY:1 VIEW DETAILS
22.	Spring pin (951969) Price: $1.20 SUGGESTED QTY:1 VIEW DETAILS
23.	Spacer sleeve (1542871) Price: $6.40 SUGGESTED QTY:1 VIEW DETAILS
25.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:24 VIEW DETAILS
26.	Lever (3838578) Price: $410.00 SUGGESTED QTY:1 VIEW DETAILS
27.	V-belt pulley (822551) Price: $215.00 SUGGESTED QTY:1 VIEW DETAILS
28.	Ball bearing (1544092) Price: $86.70 SUGGESTED QTY:1 VIEW DETAILS
29.	Snap ring (914533) Price: $7.20 SUGGESTED QTY:1 VIEW DETAILS
30.	Snap ring (914462) Price: $1.30 SUGGESTED QTY:1 VIEW DETAILS
31.	Stud (953354) Price: $9.60 SUGGESTED QTY:1 VIEW DETAILS
33.	Hexagon nut (955828) Price: $5.70 SUGGESTED QTY:1 VIEW DETAILS
34.	Protecting plate (420416) Price: $24.80 SUGGESTED QTY:1 VIEW DETAILS
35.	Drive outlet (837702) Price: $2,279.00 SUGGESTED QTY:1 VIEW DETAILS
36.	Bearing housing (837703) Price: $1,066.00 SUGGESTED QTY:1 VIEW DETAILS
37.	Gear (837704) Price: $1,155.00 SUGGESTED QTY:1 VIEW DETAILS
38.	Deflector (837705) Price: $62.90 SUGGESTED QTY:1 VIEW DETAILS
39.	Spacer sleeve (837706) Price: $51.90 SUGGESTED QTY:1 VIEW DETAILS
40.	Ball bearing (3825779) Price: $77.30 SUGGESTED QTY:2 VIEW DETAILS
41.	Sealing ring (958856) Price: $31.90 SUGGESTED QTY:1 VIEW DETAILS
42.	Flat key (909867) Price: $25.90 SUGGESTED QTY:1 VIEW DETAILS
43.	Hub (837707) Price: $940.00 SUGGESTED QTY:1 VIEW DETAILS
44.	O-ring (190418) Price: $5.90 SUGGESTED QTY:1 VIEW DETAILS
45.	Gasket (947170) Price: $5.80 SUGGESTED QTY:1 VIEW DETAILS
46.	Washer (837708) Price: $46.30 SUGGESTED QTY:1 VIEW DETAILS
47.	Lock nut (949399) Price: $20.20 SUGGESTED QTY:1 VIEW DETAILS
48.	Pulley (842769) Price: $754.00 SUGGESTED QTY:1 VIEW DETAILS
49.	Hexagon screw (955534) Price: $1.40 SUGGESTED QTY:4 VIEW DETAILS
50.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
51.	Stud (953257) Price: $5.20 SUGGESTED QTY:1 L=35mm VIEW DETAILS
51.	Stud (953280) Price: $4.50 SUGGESTED QTY:2 L=120mm VIEW DETAILS
52.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
53.	Hexagon nut (955827) Price: $0.60 SUGGESTED QTY:1 VIEW DETAILS
54.	O-ring (949660) Price: $10.00 SUGGESTED QTY:1 VIEW DETAILS
55.	Hollow screw (844625) Price: $49.80 SUGGESTED QTY:1 VIEW DETAILS
56.	Gasket (947620) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS
57.	Tube, oil (866164) Price: $339.96 SUGGESTED QTY:1 VIEW DETAILS
58.	Hollow screw (837709) Price: $121.00 SUGGESTED QTY:1 Connected toget... VIEW DETAILS
59.	Gasket (11994) Price: $1.30 SUGGESTED QTY:1 VIEW DETAILS
60.	Plug (968146) Price: $5.30 SUGGESTED QTY:2 VIEW DETAILS
61.	V-belt (966958) Price: $65.20 SUGGESTED QTY:1 VIEW DETAILS
62.	Overhaul kit, circulation pump (876434) Price: $582.00 SUGGESTED QTY:1 See group 99 VIEW DETAILS

59 Items

Grouped product items
Product Name	Qty
Coolant pump $1,629.00
Shaft $81.60
Wear ring $45.20
Sealing ring $62.10
Deflector $21.50
Ball bearing $32.00
Flange $116.39
Gasket $6.70
Hexagon screw $1.00
Sealant $46.30
Gasket $21.40
Hexagon screw $4.10
Hexagon screw $1.50
Gasket $18.80
V-belt pulley $852.00
Ball bearing $41.00
Spacer sleeve $58.70
Roller bearing $86.90
Companion flange $674.00
Spring pin $1.20
Spacer sleeve $6.40
Hexagon screw $0.90
Spring washer $0.70
Lever $410.00
V-belt pulley $215.00
Ball bearing $86.70
Snap ring $7.20
Snap ring $1.30
Stud $9.60
Spring washer $1.30
Hexagon nut $5.70
Protecting plate $24.80
Drive outlet $2,279.00
Bearing housing $1,066.00
Gear $1,155.00
Deflector $62.90
Spacer sleeve $51.90
Ball bearing $77.30
Sealing ring $31.90
Flat key $25.90
Hub $940.00
O-ring $5.90
Gasket $5.80
Washer $46.30
Lock nut $20.20
Pulley $754.00
Hexagon screw $1.40
Stud $4.50
Stud $5.20
Spring washer $0.30
Hexagon nut $0.60
O-ring $10.00
Hollow screw $49.80
Gasket $0.70
Tube, oil $339.96
Hollow screw $121.00
Gasket $1.30
Plug $5.30
V-belt $65.20
Overhaul kit, circulation pump $582.00
