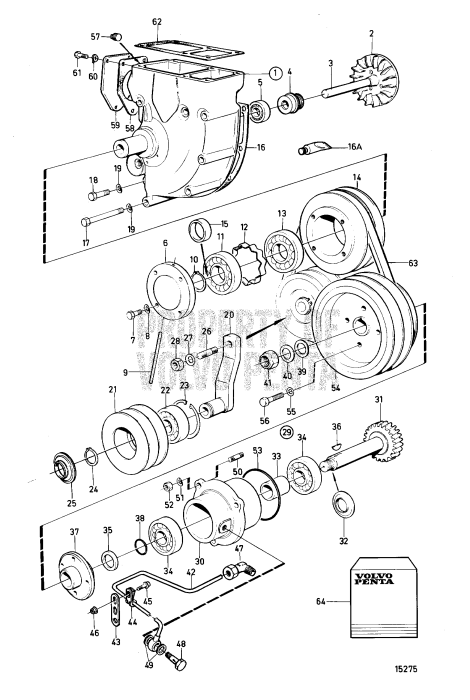

Circulation Pump and Drive Device, SNXXXXXXXXXX/257763-


1.	Coolant pump (866584) Price: $1,629.00 SUGGESTED QTY:1 VIEW DETAILS
1.	Coolant pump, exch (3803214) Price: $1,098.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Impeller (1698603) Price: $167.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Shaft (421082) Price: $81.60 SUGGESTED QTY:1 VIEW DETAILS
4.	Sealing ring (1676432) Price: $62.10 SUGGESTED QTY:1 VIEW DETAILS
5.	Ball bearing (1660609) Price: $32.00 SUGGESTED QTY:1 VIEW DETAILS
6.	Companion flange (836805) Price: $674.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:24 VIEW DETAILS
9.	Spring pin (951969) Price: $1.20 SUGGESTED QTY:1 VIEW DETAILS
10.	Snap ring (914462) Price: $1.30 SUGGESTED QTY:1 VIEW DETAILS
11.	Roller bearing (1542870) Price: $86.90 SUGGESTED QTY:1 VIEW DETAILS
12.	Spacer sleeve (422202) Price: $58.70 SUGGESTED QTY:1 VIEW DETAILS
13.	Ball bearing (181538) Price: $41.00 SUGGESTED QTY:1 VIEW DETAILS
14.	V-belt pulley (822548) Price: $852.00 SUGGESTED QTY:1 VIEW DETAILS
15.	Spacer sleeve (1542871) Price: $6.40 SUGGESTED QTY:1 VIEW DETAILS
16.	Gasket (423127) Price: $21.40 SUGGESTED QTY:1 Early type VIEW DETAILS
19.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
20.	Intermediate lever, belt tensioner (3838578) Price: $410.00 SUGGESTED QTY:1 VIEW DETAILS
21.	V-belt pulley (822551) Price: $215.00 SUGGESTED QTY:1 VIEW DETAILS
22.	Ball bearing (1544092) Price: $86.70 SUGGESTED QTY:1 VIEW DETAILS
23.	Snap ring (914533) Price: $7.20 SUGGESTED QTY:1 VIEW DETAILS
24.	Snap ring (914462) Price: $1.30 SUGGESTED QTY:1 VIEW DETAILS
25.	Protecting plate (420416) Price: $24.80 SUGGESTED QTY:1 VIEW DETAILS
26.	Stud (953354) Price: $9.60 SUGGESTED QTY:1 VIEW DETAILS
28.	Hexagon nut (955828) Price: $5.70 SUGGESTED QTY:1 VIEW DETAILS
29.	Drive outlet (837702) Price: $2,279.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Bearing housing (837703) Price: $1,066.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Gear (837704) Price: $1,155.00 SUGGESTED QTY:1 VIEW DETAILS
32.	Deflector (837705) Price: $62.90 SUGGESTED QTY:1 VIEW DETAILS
33.	Spacer sleeve (837706) Price: $51.90 SUGGESTED QTY:1 VIEW DETAILS
34.	Ball bearing (3825779) Price: $77.30 SUGGESTED QTY:2 (183731) VIEW DETAILS
35.	Sealing ring (958856) Price: $31.90 SUGGESTED QTY:1 VIEW DETAILS
36.	Flat key (909867) Price: $25.90 SUGGESTED QTY:1 VIEW DETAILS
37.	Hub (837707) Price: $940.00 SUGGESTED QTY:1 VIEW DETAILS
38.	O-ring (190418) Price: $5.90 SUGGESTED QTY:1 VIEW DETAILS
39.	Gasket (947170) Price: $5.80 SUGGESTED QTY:1 VIEW DETAILS
40.	Washer (837708) Price: $46.30 SUGGESTED QTY:1 VIEW DETAILS
41.	Lock nut (949399) Price: $20.20 SUGGESTED QTY:1 VIEW DETAILS
42.	Oil pipe (866082) Price: $401.00 SUGGESTED QTY:1 VIEW DETAILS
43.	Bracket (965535) Price: $3.80 SUGGESTED QTY:2 VIEW DETAILS
44.	Clamp (952622) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
45.	Flange screw (946544) Price: $0.70 SUGGESTED QTY:1 VIEW DETAILS
46.	Flange nut (945407) Price: $0.60 SUGGESTED QTY:2 VIEW DETAILS
47.	Nipple, cylinder block (866083) Price: $38.60 SUGGESTED QTY:1 VIEW DETAILS
48.	Hollow screw (844625) Price: $49.80 SUGGESTED QTY:1 VIEW DETAILS
49.	Gasket (947620) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS
50.	Stud (953257) Price: $5.20 SUGGESTED QTY:1 L=35mm VIEW DETAILS
50.	Stud (953280) Price: $4.50 SUGGESTED QTY:2 L=120mm VIEW DETAILS
51.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
52.	Hexagon nut (955827) Price: $0.60 SUGGESTED QTY:1 VIEW DETAILS
53.	O-ring (949660) Price: $10.00 SUGGESTED QTY:1 VIEW DETAILS
54.	Pulley (842769) Price: $754.00 SUGGESTED QTY:1 VIEW DETAILS
55.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
56.	Hexagon screw (955534) Price: $1.40 SUGGESTED QTY:4 VIEW DETAILS
57.	Plug, 1/2-NPTF (968146) Price: $5.30 SUGGESTED QTY:1 VIEW DETAILS
58.	Gasket (422171) Price: $6.70 SUGGESTED QTY:1 VIEW DETAILS
59.	Flange (846685) Price: $116.39 SUGGESTED QTY:1 For heat ex. VIEW DETAILS
60.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:24 VIEW DETAILS
61.	Hexagon screw (955524) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
62.	Gasket (862596) Price: $18.80 SUGGESTED QTY:1 VIEW DETAILS
63.	V-belt (966958) Price: $65.20 SUGGESTED QTY:1 VIEW DETAILS
64.	Overhaul kit, circulation pump (876434) Price: $582.00 SUGGESTED QTY:1 See group 99 VIEW DETAILS

62 Items

Grouped product items
Product Name	Qty
Coolant pump, exch $1,098.00
Coolant pump $1,629.00
Impeller $167.00
Shaft $81.60
Sealing ring $62.10
Ball bearing $32.00
Companion flange $674.00
Hexagon screw $0.90
Spring pin $1.20
Roller bearing $86.90
Spacer sleeve $58.70
Ball bearing $41.00
V-belt pulley $852.00
Spacer sleeve $6.40
Gasket $21.40
Sealant $46.30
Hexagon screw $4.10
Hexagon screw $1.50
Intermediate lever, belt tensioner $410.00
V-belt pulley $215.00
Ball bearing $86.70
Snap ring $7.20
Snap ring $1.30
Protecting plate $24.80
Stud $9.60
Spring washer $1.30
Hexagon nut $5.70
Drive outlet $2,279.00
Bearing housing $1,066.00
Gear $1,155.00
Deflector $62.90
Spacer sleeve $51.90
Ball bearing $77.30
Sealing ring $31.90
Flat key $25.90
Hub $940.00
O-ring $5.90
Gasket $5.80
Washer $46.30
Lock nut $20.20
Oil pipe $401.00
Bracket $3.80
Clamp $1.00
Flange screw $0.70
Flange nut $0.60
Nipple, cylinder block $38.60
Hollow screw $49.80
Gasket $0.70
Stud $4.50
Stud $5.20
Hexagon nut $0.60
O-ring $10.00
Pulley $754.00
Spring washer $0.30
Hexagon screw $1.40
Plug, 1/2-NPTF $5.30
Gasket $6.70
Flange $116.39
Spring washer $0.70
Hexagon screw $1.00
Gasket $18.80
V-belt $65.20
Overhaul kit, circulation pump $582.00
