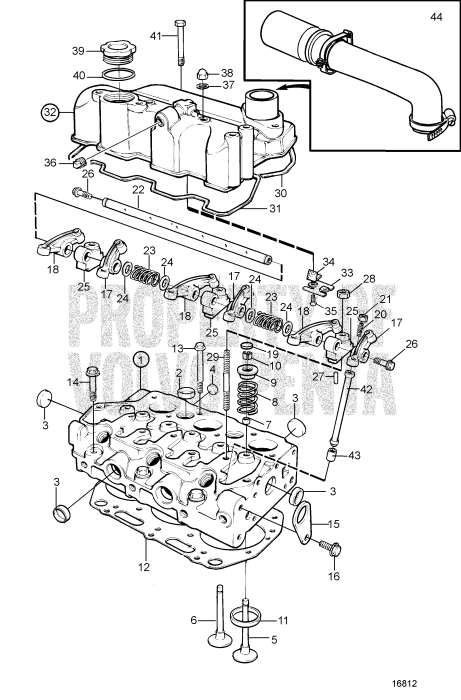

Cylinder Head, SN5101311300-
|
1. |
Cylinder head (3580233)
Price: $2,655.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Plug (3886428)
Price: $7.80SUGGESTED QTY:1
Replaced by 388...
VIEW DETAILS
|
|
|
2. |
Cardboard tube (3886428)
Price: $7.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Plug (3886430)
Price: $6.90SUGGESTED QTY:4
Replaced by 388...
VIEW DETAILS
|
|
|
3. |
Plug blank (3886430)
Price: $6.90SUGGESTED QTY:4
VIEW DETAILS
|
|
|
4. |
Plug (3807215)
Price: $4.50SUGGESTED QTY:4
Replaced by 380...
VIEW DETAILS
|
|
|
4. |
Plug (3807215)
Price: $4.50SUGGESTED QTY:3
(3580456)
VIEW DETAILS
|
|
|
5. |
Inlet valve (861858)
Price: $35.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
6. |
Exhaust valve (861859)
Price: $35.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
7. |
Valve stem seal (861860)
Price: $10.30SUGGESTED QTY:4
VIEW DETAILS
|
|
|
8. |
Valve spring (861861)
Price: $7.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
9. |
Valve spring washer (861862)
Price: $10.30SUGGESTED QTY:4
VIEW DETAILS
|
|
|
10. |
Valve cone (861863)
Price: $10.30SUGGESTED QTY:8
VIEW DETAILS
|
|
|
11. |
Valve seat (861864)
Price: $33.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
12. |
Cylinder head gasket (3580234)
Price: $202.00SUGGESTED QTY:1
TH=0,5mm
VIEW DETAILS
|
|
|
13. |
Screw (861866)
Price: $4.60SUGGESTED QTY:8
VIEW DETAILS
|
|
|
14. |
Screw (861867)
Price: $4.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
15. |
Lifting eye (861869)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
16. |
Screw (861870)
Price: $4.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Rocker arm (861875)
Price: $0.00SUGGESTED QTY:2
Replaced by 1 e...
VIEW DETAILS
|
|
|
17. |
Rocker arm (3581291)
Price: $119.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
18. |
Rocker arm (861876)
Price: $0.00SUGGESTED QTY:2
Replaced by 1 e...
VIEW DETAILS
|
|
|
18. |
Rocker arm (3581292)
Price: $119.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
19. |
Valve cap (3581293)
Price: $9.10SUGGESTED QTY:4
VIEW DETAILS
|
|
|
20. |
Screw (861877)
Price: $22.60SUGGESTED QTY:4
VIEW DETAILS
|
|
|
21. |
Nut (861878)
Price: $4.50SUGGESTED QTY:4
VIEW DETAILS
|
|
|
22. |
Shaft (3580237)
Price: $294.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
Spring (861881)
Price: $105.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Adjusting washer (861883)
Price: $4.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
25. |
Bracket (3582684)
Price: $29.40SUGGESTED QTY:2
Replaced by 358...
VIEW DETAILS
|
|
|
25. |
Bracket (3582684)
Price: $29.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
26. |
Plug (861886)
Price: $8.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Tensioning din (861882)
Price: $1.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
28. |
Flange lock nut (948645)
Price: $2.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
29. |
Stud bolt (861885)
Price: $10.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
30. |
Gasket (3580238)
Price: $8.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
31. |
Gasket (3580239)
Price: $25.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
32. |
Valve cover (3581520)
Price: $416.94SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Filter (861891)
Price: $14.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
35. |
Flange screw (967949)
Price: $0.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
36. |
Plug (861893)
Price: $20.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
37. |
Gasket (947620)
Price: $0.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
38. |
Nut (3580241)
Price: $4.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
39. |
Oil filler cap (21311518)
Price: $36.40SUGGESTED QTY:1
Replaced by 358...
VIEW DETAILS
|
|
|
39. |
Oil filler cap (21311518)
Price: $36.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
40. |
O-ring (861897)
Price: $7.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
41. |
Screw (3580243)
Price: $5.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
42. |
Push rod (861828)
Price: $15.90SUGGESTED QTY:4
VIEW DETAILS
|
|
|
43. |
Tappet (3580464)
Price: $67.80SUGGESTED QTY:6
(861827)
VIEW DETAILS
|
|
|
44. |
Induction and Exhaust Manifold, SN5101311300- (3109)
SUGGESTED QTY:1
MD2020B
VIEW DETAILS
|
50 Items
