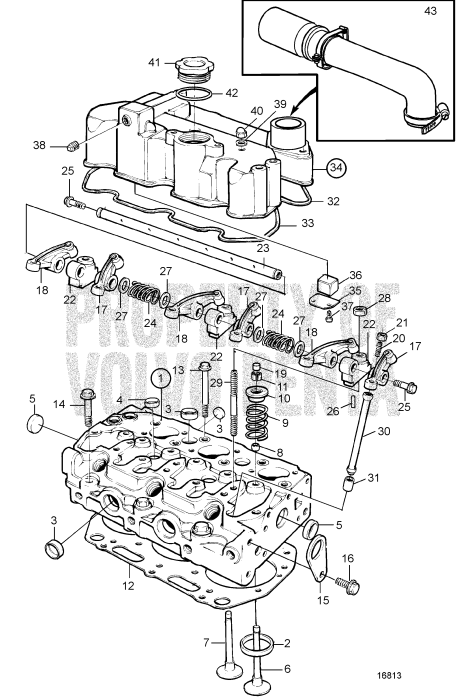

Cylinder Head, Engine Spec. No. 868777
|
1. |
Cylinder head (3580300)
Price: $0.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Valve seat
THIS PRODUCT HAS BEEN DISCONTINUED
|
|
|
3. |
Cardboard tube (3886428)
Price: $7.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Cardboard tube (3886427)
Price: $6.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
5. |
Plug (3886441)
Price: $12.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
6. |
Inlet valve (3580303)
Price: $35.80SUGGESTED QTY:3
VIEW DETAILS
|
|
|
7. |
Exhaust valve (3580304)
Price: $46.80SUGGESTED QTY:3
VIEW DETAILS
|
|
|
8. |
Valve stem seal, exhaust (22393048)
Price: $17.80SUGGESTED QTY:3
VIEW DETAILS
|
|
|
8. |
Valve stem seal, intake (22393048)
Price: $17.80SUGGESTED QTY:3
VIEW DETAILS
|
|
|
9. |
Valve spring (3580964)
Price: $15.90SUGGESTED QTY:6
VIEW DETAILS
|
|
|
10. |
Valve spring washer (3580307)
Price: $12.60SUGGESTED QTY:6
VIEW DETAILS
|
|
|
11. |
Valve cone (3580308)
Price: $9.10SUGGESTED QTY:12
VIEW DETAILS
|
|
|
12. |
Cylinder head gasket (3580309)
Price: $212.00SUGGESTED QTY:1
TH=1,3mm
VIEW DETAILS
|
|
|
13. |
Screw (3580310)
Price: $12.60SUGGESTED QTY:11
VIEW DETAILS
|
|
|
14. |
Screw (3580311)
Price: $10.10SUGGESTED QTY:3
VIEW DETAILS
|
|
|
15. |
Lifting eye (861869)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
16. |
Screw (861870)
Price: $4.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Rocker arm (861875)
Price: $0.00SUGGESTED QTY:2
Replaced by 1 e...
VIEW DETAILS
|
|
|
17. |
Rocker arm (3581291)
Price: $119.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
18. |
Rocker arm (861876)
Price: $0.00SUGGESTED QTY:2
Replaced by 1 e...
VIEW DETAILS
|
|
|
18. |
Rocker arm (3581292)
Price: $119.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
19. |
Valve cap (21250646)
Price: $14.40SUGGESTED QTY:6
(3580481)
VIEW DETAILS
|
|
|
20. |
Screw (861877)
Price: $22.60SUGGESTED QTY:4
VIEW DETAILS
|
|
|
21. |
Nut (861878)
Price: $4.50SUGGESTED QTY:4
VIEW DETAILS
|
|
|
22. |
Bracket (3582684)
Price: $29.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
23. |
Shaft (3580314)
Price: $176.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Spring (3580315)
Price: $7.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
25. |
Plug (861886)
Price: $8.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
26. |
Tensioning din (861882)
Price: $1.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
27. |
Adjusting washer (861883)
Price: $4.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
28. |
Flange lock nut (948645)
Price: $2.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
29. |
Stud bolt (861885)
Price: $10.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
30. |
Push rod (3580289)
Price: $43.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
31. |
Tappet (3580464)
Price: $67.80SUGGESTED QTY:6
(861827)
VIEW DETAILS
|
|
|
32. |
Gasket (3580316)
Price: $20.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
33. |
O-ring (3580317)
Price: $78.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Valve cover (3580955)
Price: $533.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
36. |
Filter (3580320)
Price: $15.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
37. |
Screw (3580321)
Price: $4.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
38. |
Plug (861893)
Price: $20.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
39. |
Gasket (947620)
Price: $0.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
40. |
Nut (3580241)
Price: $4.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
41. |
Oil filler cap (21311518)
Price: $36.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
O-ring (861897)
Price: $7.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
43. |
Induction and Exhaust Manifold, Engine Spec. No. 868777 (3110)
SUGGESTED QTY:1
MD2030B
VIEW DETAILS
|
45 Items
