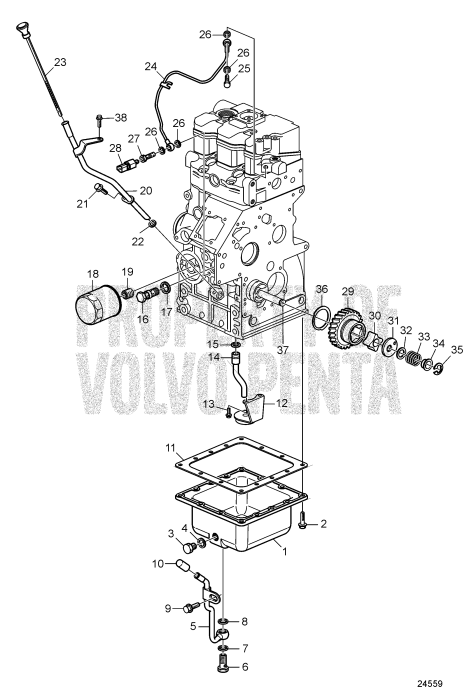

Lubricating System


1.	Sump (21281968) Price: $269.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Hexagon screw (21246391) Price: $1.10 SUGGESTED QTY:14 VIEW DETAILS
3.	Plug (3808606) Price: $8.10 SUGGESTED QTY:2 VIEW DETAILS
4.	Washer (3808607) Price: $6.80 SUGGESTED QTY:2 VIEW DETAILS
5.	Oil pipe (3581779) Price: $147.00 SUGGESTED QTY:1 VIEW DETAILS
6.	Hollow screw (3581928) Price: $93.50 SUGGESTED QTY:1 VIEW DETAILS
7.	Sealing ring (3884542) Price: $8.10 SUGGESTED QTY:1 VIEW DETAILS
8.	Sealing ring (3884543) Price: $10.80 SUGGESTED QTY:1 VIEW DETAILS
9.	Flange screw (947107) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
10.	Rubber cap (1276516) Price: $2.20 SUGGESTED QTY:1 VIEW DETAILS
11.	Gasket (861822) Price: $37.30 SUGGESTED QTY:1 VIEW DETAILS
12.	Strainer (3886402) Price: $119.00 SUGGESTED QTY:1 VIEW DETAILS
13.	Screw (861526) Price: $7.70 SUGGESTED QTY:3 VIEW DETAILS
14.	Suction pipe (861998) Price: $26.50 SUGGESTED QTY:1 VIEW DETAILS
15.	O-ring (861997) Price: $10.80 SUGGESTED QTY:1 VIEW DETAILS
16.	Reduction valve (3583580) Price: $104.00 SUGGESTED QTY:1 VIEW DETAILS
17.	O-ring (3583581) Price: $10.00 SUGGESTED QTY:1 VIEW DETAILS
18.	Oil filter (861473) Price: $31.10 SUGGESTED QTY:1 VIEW DETAILS
19.	Bolt (861825) Price: $11.40 SUGGESTED QTY:1 VIEW DETAILS
20.	Dipstick tube (3885000) Price: $146.00 SUGGESTED QTY:1 VIEW DETAILS
21.	Hexagon screw (21246391) Price: $1.10 SUGGESTED QTY:14 VIEW DETAILS
22.	O-ring (3886404) Price: $11.30 SUGGESTED QTY:2 VIEW DETAILS
23.	Oil dipstick (21190016) Price: $58.30 SUGGESTED QTY:1 VIEW DETAILS
24.	Oil pipe (3809626) Price: $306.00 SUGGESTED QTY:1 VIEW DETAILS
25.	Hollow screw (861872) Price: $10.30 SUGGESTED QTY:1 VIEW DETAILS
26.	Gasket (947620) Price: $0.70 SUGGESTED QTY:3 VIEW DETAILS
27.	Hollow screw (3583575) Price: $117.00 SUGGESTED QTY:1 VIEW DETAILS
28.	Pressure monitor (21250645) Price: $157.00 SUGGESTED QTY:1 Replaced by 212... VIEW DETAILS
28.	Pressure switch (21250645) Price: $157.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Rotor (861989) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
30.	Oil pump (21541017) Price: $742.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Cardboard tube (861527) Price: $55.40 SUGGESTED QTY:1 VIEW DETAILS
32.	Shim (861528) Price: $8.90 SUGGESTED QTY:1 T=0.10mm VIEW DETAILS
32.	Shim (861529) Price: $5.60 SUGGESTED QTY:1 T=0.15mm VIEW DETAILS
32.	Shim (861530) Price: $7.80 SUGGESTED QTY:1 T=0.20mm VIEW DETAILS
32.	Shim (861531) Price: $7.80 SUGGESTED QTY:1 T=0.50mm VIEW DETAILS
33.	Spring (861532) Price: $4.50 SUGGESTED QTY:1 VIEW DETAILS
34.	Sleeve (861533) Price: $14.80 SUGGESTED QTY:1 VIEW DETAILS
35.	Lock ring (861534) Price: $4.50 SUGGESTED QTY:1 VIEW DETAILS
36.	Camshaft and Gears (35028) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 D1-13F VIEW DETAILS
37.	Cylinder Block and Flywheel Housing (35035) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 D1-13F VIEW DETAILS
38.	Hexagon screw (21246391) Price: $1.10 SUGGESTED QTY:14 VIEW DETAILS

42 Items

Grouped product items
Product Name	Qty
Sump $269.00
Plug $8.10
Washer $6.80
Oil pipe $147.00
Hollow screw $93.50
Sealing ring $8.10
Sealing ring $10.80
Flange screw $1.00
Rubber cap $2.20
Gasket $37.30
Strainer $119.00
Screw $7.70
Suction pipe $26.50
O-ring $10.80
Reduction valve $104.00
O-ring $10.00
Oil filter $31.10
Bolt $11.40
Dipstick tube $146.00
O-ring $11.30
Oil dipstick $58.30
Oil pipe $306.00
Hollow screw $10.30
Gasket $0.70
Hollow screw $117.00
Pressure monitor $157.00
Pressure switch $157.00
Oil pump $742.00
Rotor $99,999.00
Cardboard tube $55.40
Shim $7.80
Shim $8.90
Shim $7.80
Shim $5.60
Spring $4.50
Sleeve $14.80
Lock ring $4.50
Camshaft and Gears Starting at $4.50
Cylinder Block and Flywheel Housing Starting at $1.00
Hexagon screw $1.10
