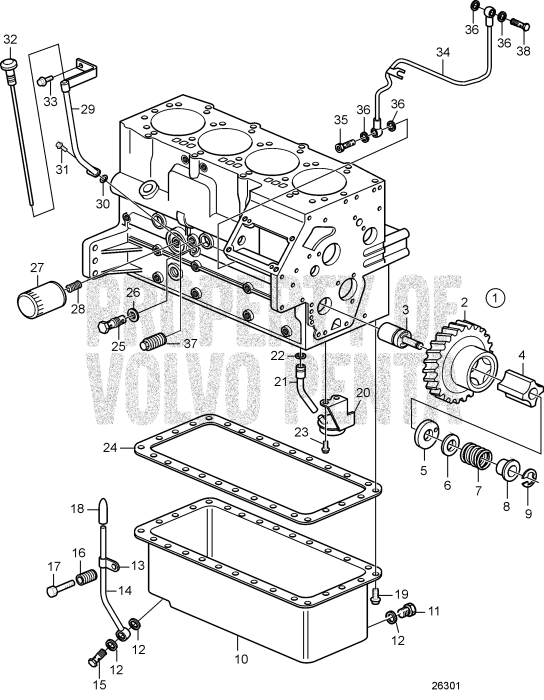

Lubricating System


1.	Oil pump (21541019) Price: $1,511.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Shaft (21188306) This product has been discontinued Price: $163.70 SUGGESTED QTY:1 VIEW DETAILS
4.	Rotor (3580570) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 replaced VIEW DETAILS
5.	Cover (21188141) Price: $145.00 SUGGESTED QTY:1 VIEW DETAILS
6.	Shim (861529) Price: $5.60 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
6.	Shim (861530) Price: $7.80 SUGGESTED QTY:1 TH=0,20mm VIEW DETAILS
6.	Shim (861531) Price: $7.80 SUGGESTED QTY:1 TH=0,50mm VIEW DETAILS
6.	Shim (861528) Price: $8.90 SUGGESTED QTY:1 TH=0.10mm VIEW DETAILS
7.	Spring (861532) Price: $4.50 SUGGESTED QTY:1 VIEW DETAILS
8.	Sleeve (861533) Price: $14.80 SUGGESTED QTY:1 VIEW DETAILS
9.	Lock ring (861534) Price: $4.50 SUGGESTED QTY:1 VIEW DETAILS
10.	Sump (3583551) Price: $700.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Screw (3580091) Price: $10.10 SUGGESTED QTY:1 VIEW DETAILS
12.	Sealing ring (21424327) Price: $23.10 SUGGESTED QTY:3 VIEW DETAILS
13.	Clamp (941565) Price: $4.80 SUGGESTED QTY:1 VIEW DETAILS
14.	Oil draining pipe (22151722) Price: $35.70 SUGGESTED QTY:1 Replaced by 388... VIEW DETAILS
14.	Oil pipe (22151722) Price: $35.70 SUGGESTED QTY:1 SN-5103976112, ... VIEW DETAILS
14.	Drain pipe (21852455) Price: $290.00 SUGGESTED QTY:1 SN5103976113W- VIEW DETAILS
15.	Hollow screw (941686) Price: $14.20 SUGGESTED QTY:1 VIEW DETAILS
16.	Adapter (3582401) Price: $69.50 SUGGESTED QTY:1 VIEW DETAILS
17.	Flange screw (946471) Price: $2.10 SUGGESTED QTY:1 VIEW DETAILS
18.	Rubber cap (1276516) Price: $2.20 SUGGESTED QTY:1 SN-5103976112 VIEW DETAILS
18.	Protective cap (22151722) Price: $35.70 SUGGESTED QTY:1 SN5103976113- VIEW DETAILS
19.	Hexagon screw (21246391) Price: $1.10 SUGGESTED QTY:30 VIEW DETAILS
20.	Filter (21194501) Price: $65.10 SUGGESTED QTY:1 VIEW DETAILS
21.	Pipe (21194503) Price: $247.00 SUGGESTED QTY:1 VIEW DETAILS
22.	O-ring (861997) Price: $10.80 SUGGESTED QTY:1 VIEW DETAILS
23.	Screw (861526) Price: $7.70 SUGGESTED QTY:1 VIEW DETAILS
24.	Gasket (21849845) Price: $178.00 SUGGESTED QTY:1 Included also i... VIEW DETAILS
25.	Reduction valve (3583580) Price: $104.00 SUGGESTED QTY:1 VIEW DETAILS
26.	O-ring (3583581) Price: $10.00 SUGGESTED QTY:1 VIEW DETAILS
27.	Oil filter (3840525) Price: $30.40 SUGGESTED QTY:1 VIEW DETAILS
28.	Bolt (861825) Price: $11.40 SUGGESTED QTY:1 VIEW DETAILS
29.	Tube (3587361) Price: $142.00 SUGGESTED QTY:1 (3583553) VIEW DETAILS
30.	O-ring (861851) Price: $23.10 SUGGESTED QTY:1 VIEW DETAILS
31.	Hexagon screw (21246391) Price: $1.10 SUGGESTED QTY:30 VIEW DETAILS
32.	Dipstick (3583554) Price: $35.30 SUGGESTED QTY:1 VIEW DETAILS
33.	Hexagon screw (21246643) Price: $6.70 SUGGESTED QTY:1 VIEW DETAILS
34.	Oil pipe (3583582) Price: $117.00 SUGGESTED QTY:1 VIEW DETAILS
35.	Hollow screw (3583575) Price: $117.00 SUGGESTED QTY:1 VIEW DETAILS
36.	Gasket (947620) Price: $0.70 SUGGESTED QTY:4 VIEW DETAILS
37.	Plug (21330056) Price: $29.80 SUGGESTED QTY:1 VIEW DETAILS
38.	Hollow screw (861872) Price: $10.30 SUGGESTED QTY:1 VIEW DETAILS

43 Items

Grouped product items
Product Name	Qty
Oil pump $1,511.00
Shaft $163.70
Rotor $0.00
Cover $145.00
Shim $8.90
Shim $7.80
Shim $5.60
Shim $7.80
Spring $4.50
Sleeve $14.80
Lock ring $4.50
Sump $700.00
Screw $10.10
Sealing ring $23.10
Clamp $4.80
Oil draining pipe $35.70
Oil pipe $35.70
Drain pipe $290.00
Hollow screw $14.20
Adapter $69.50
Flange screw $2.10
Rubber cap $2.20
Protective cap $35.70
Filter $65.10
Pipe $247.00
O-ring $10.80
Screw $7.70
Gasket $178.00
Reduction valve $104.00
O-ring $10.00
Oil filter $30.40
Bolt $11.40
Tube $142.00
O-ring $23.10
Hexagon screw $1.10
Dipstick $35.30
Hexagon screw $6.70
Oil pipe $117.00
Hollow screw $117.00
Gasket $0.70
Plug $29.80
Hollow screw $10.30
